Hazard Lamps Inoperative With VTSS

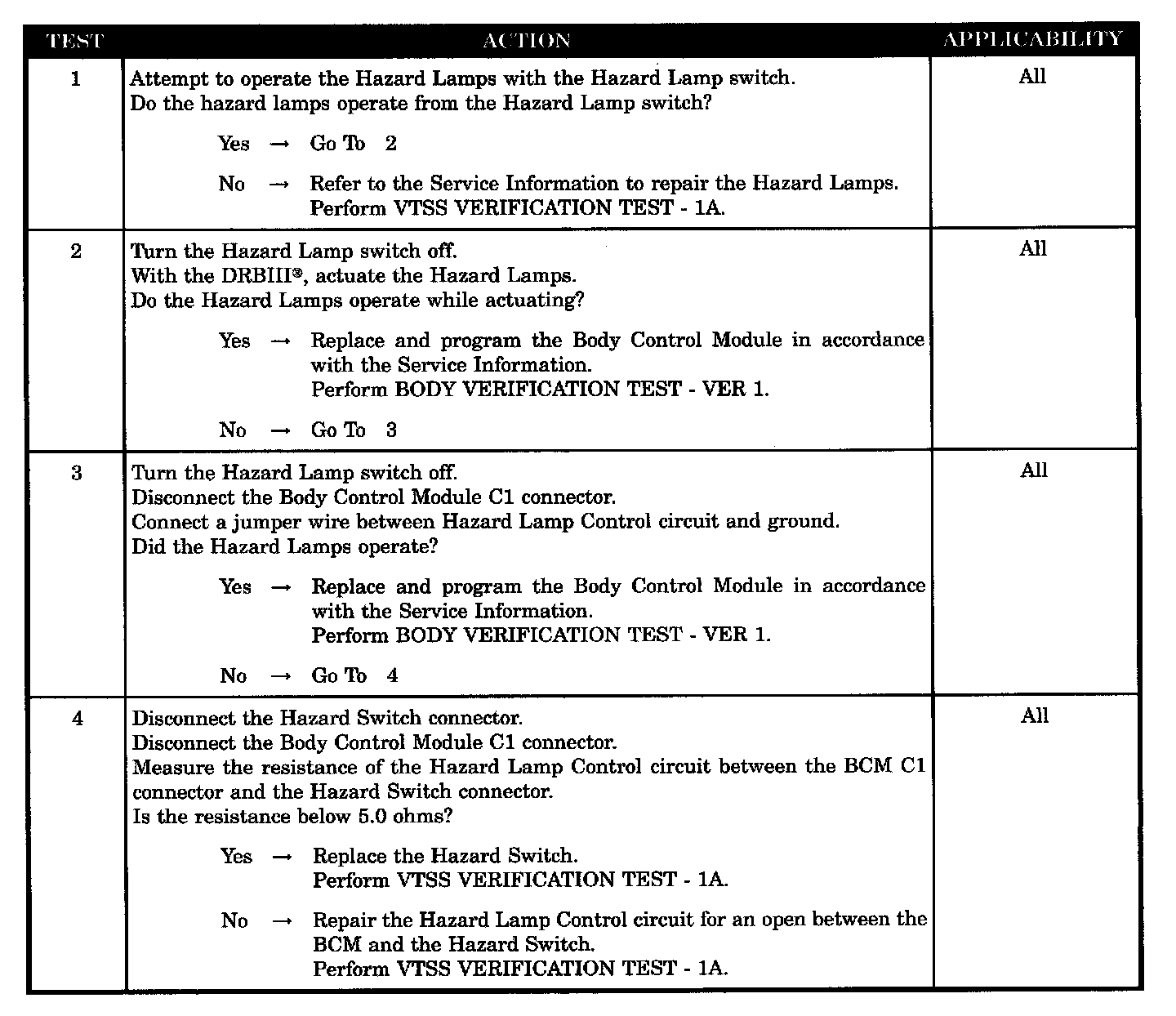

Test 1 - 4:






SYMPTOM
HAZARD LAMPS INOPERATIVE WITH VTSS

POSSIBLE CAUSES
- Hazard switch
- Actuate hazard lamps with DRB
- Hazard lamp control circuit
- Hazard lamp control open
- Hazard lamp operation
- Body control module
