Front Washer Pump Inoperative

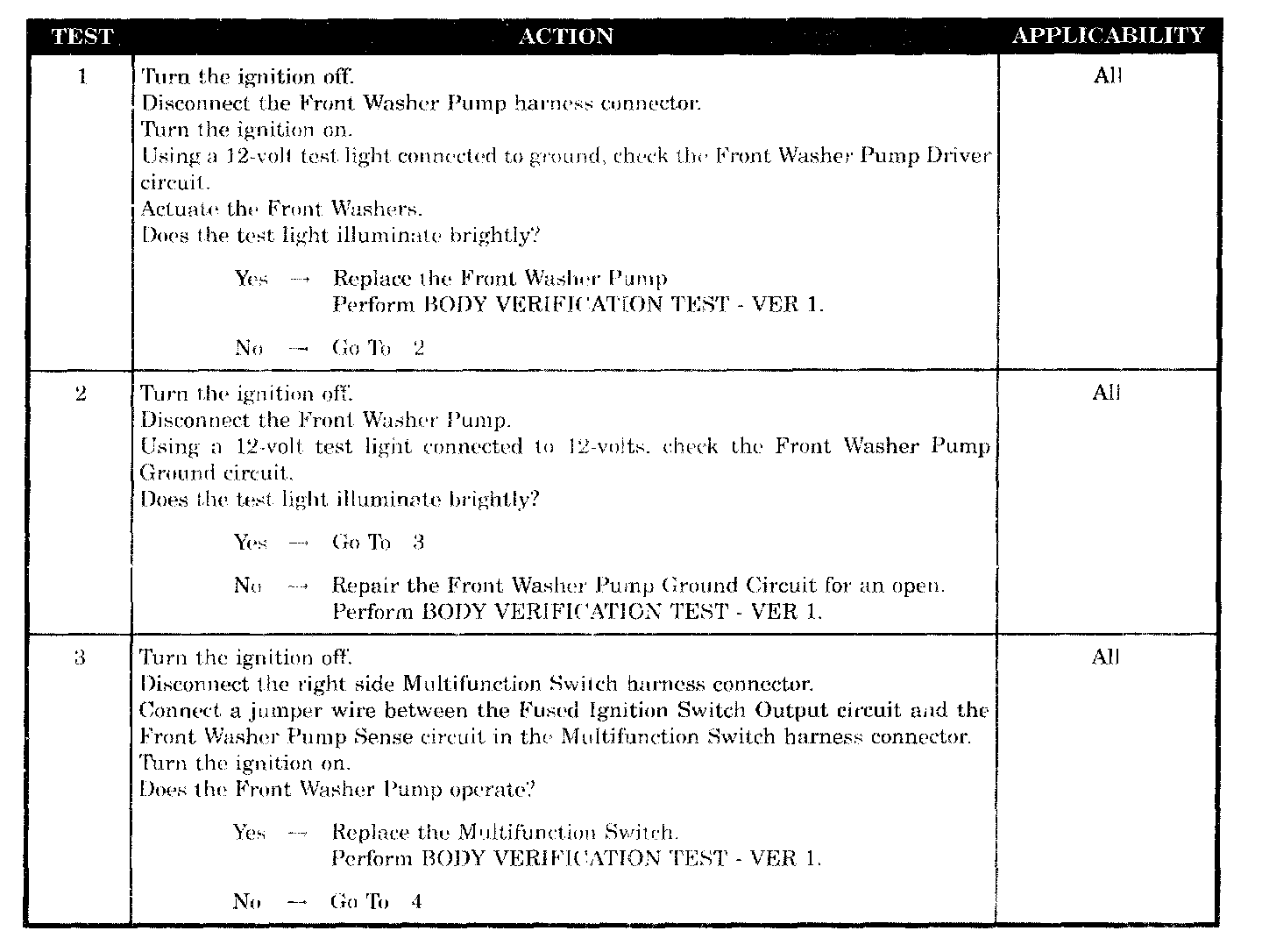

Test 1 - 3:

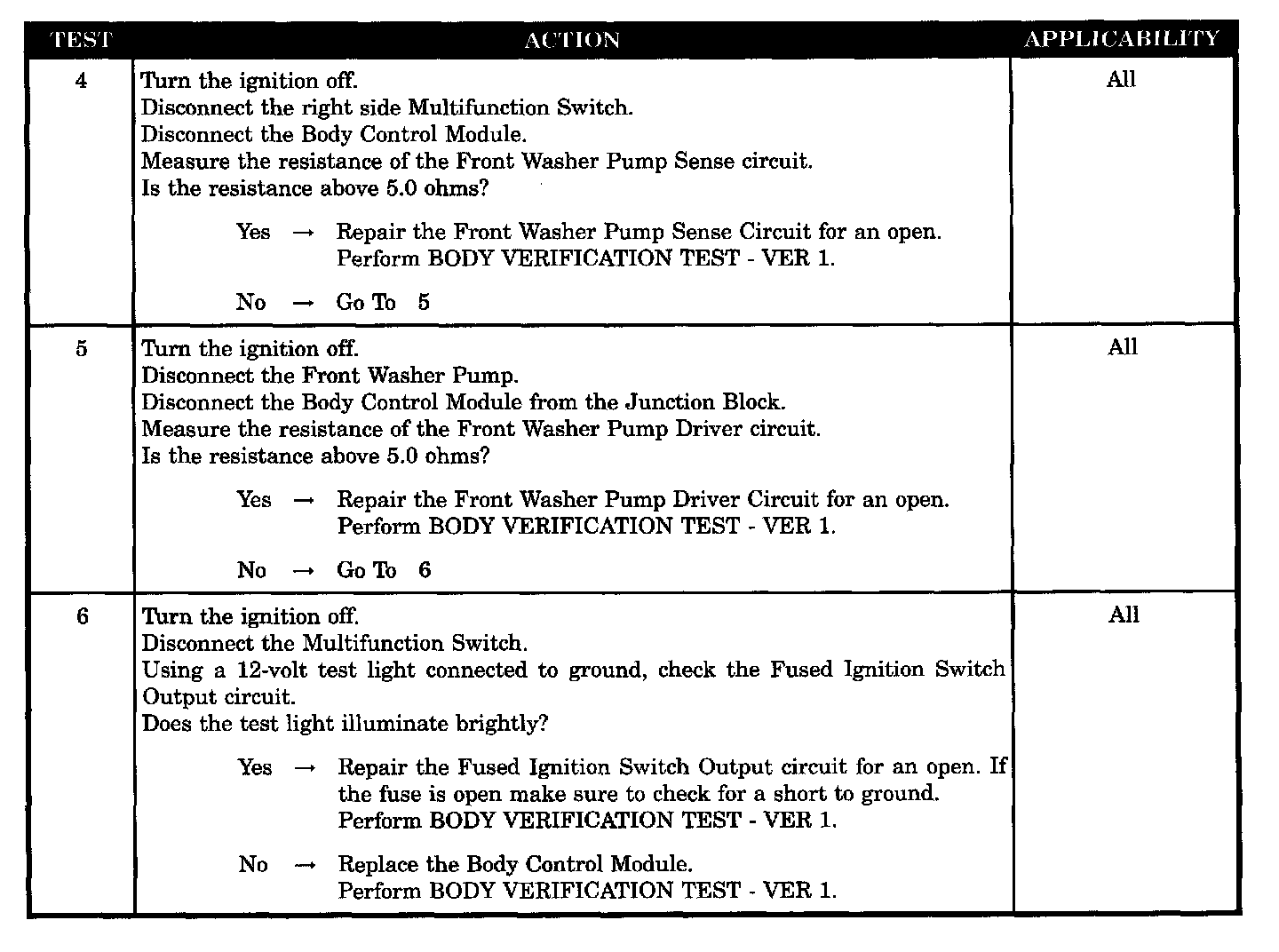

Test 4 - 6:

SYMPTOM
FRONT WASHER PUMP INOPERATIVE

POSSIBLE CAUSES
- Front washer pump
- Front washer pump ground circuit open
- Multifunction switch
- Front washer pump sense circuit open
- Front washer pump driver circuit open
- Fused ignition switch output circuit open
- Body control module
