Body Control Module: Description

A Body Control Module (BCM) is concealed behind the driver side end of the instrument panel in the passenger compartment, where it is secured to the fuse panel side of the junction block (JB). The JB is the interface between the body, the instrument panel, and the headlamp and dash wire harnesses. The JB also contains the fuses and relays used for the interior electrical system of the vehicle. The BCM is enclosed in a molded plastic housing with two integral external connectors that connect it to the vehicle electrical system. The BCM also has an integral interface connector that joins it through a connector to the circuitry within the JB. This connector is referred to as the JB-BCM connector. The combined BCM and JB are sometimes referred to as the Junction Block Module (JBM).

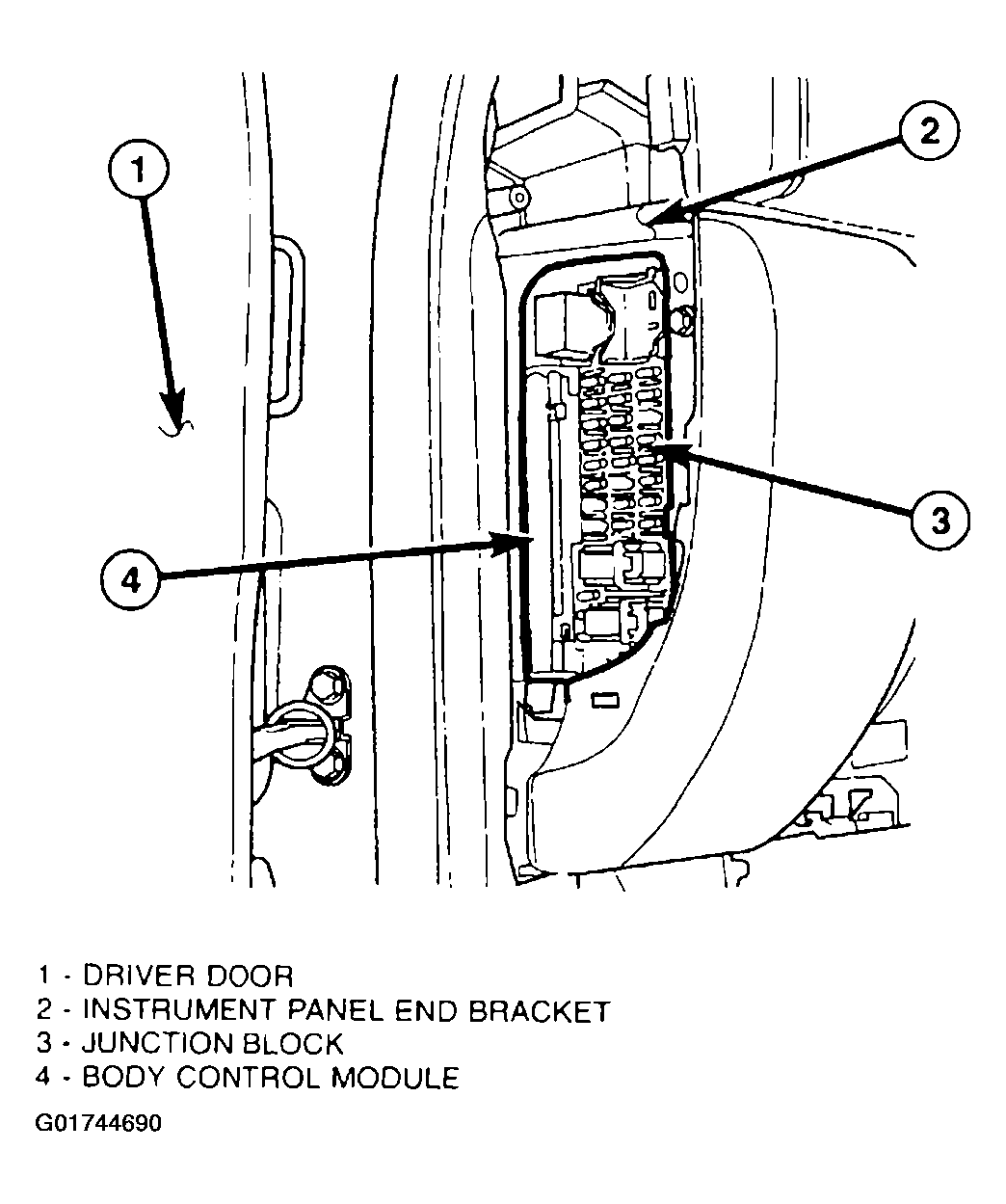

Fig 1: Locating Body Control Module
G01744690Courtesy of DAIMLERCHRYSLER CORP.

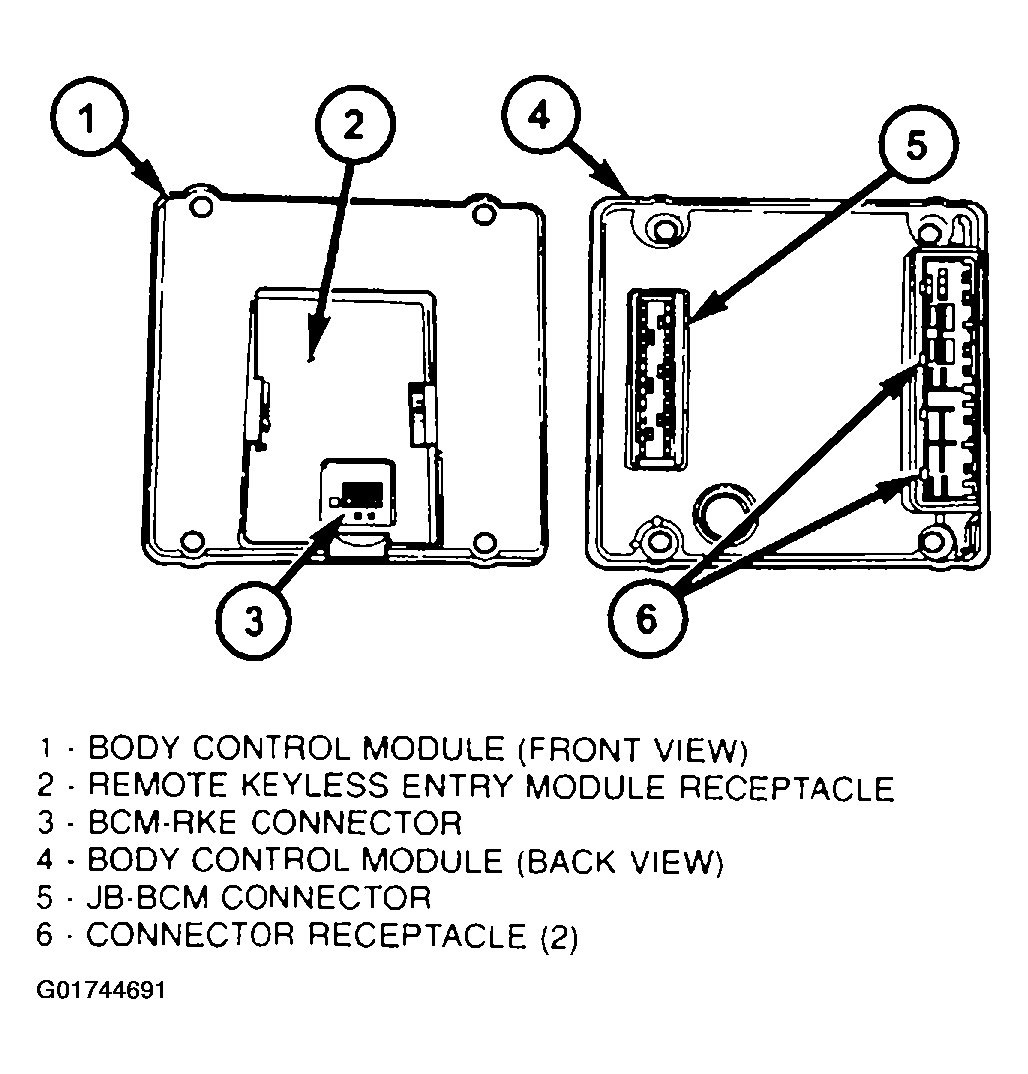

Fig 2: Identifying Body Control Module
G01744691Courtesy of DAIMLERCHRYSLER CORP.

There are two different versions of the BCM: base and premium. The base BCM is a subset of the components in the premium version. The base version BCM does not support the following features: electronic vehicle information center (EVIC), fog lamps (front and/or rear), remote keyless entry (RKE), remote radio switches, or vehicle theft security system (VTSS). Both versions of the BCM utilize integrated circuitry and information carried on the programmable communications interface (PCI) data bus network along with many hard wired inputs to monitor many sensor and switch inputs throughout the vehicle. In response to those inputs, the internal circuitry and programming of the BCM allow it to control and integrate many electronic functions and features of the vehicle through both hard wired outputs and the transmission of electronic message outputs to other electronic modules in the vehicle over the PCI data bus. Any time the BCM is replaced or reflashed for any reason, there may be subsystems that may need to be reprogrammed as well, such as Cabin Equalization. Follow the DRBIII(R) scan tool menu screen for details. The electronic functions and features that the BCM supports or controls include the following:

Hard wired circuitry connects the BCM to the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical system and to the BCM through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. See BODY CONTROL MODULES in SYSTEM WIRING DIAGRAMS article. The wiring information includes wiring diagrams, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views for the various wire harness connectors, splices and grounds.

Many of the electronic features in the vehicle controlled or supported by the BCM are programmable using a customer programming procedure or the DRBIII(R) scan tool. In addition, the BCM software is Flash compatible, which means it can be reprogrammed using Flash reprogramming procedures. However, if any of the BCM hardware components is damaged or faulty, the entire BCM unit must be replaced.
