Diagnosis And Testing - Window Switch: Notes

Remove the switch to be tested. See REMOVAL .
Using an ohmmeter, test front switch for continuity.

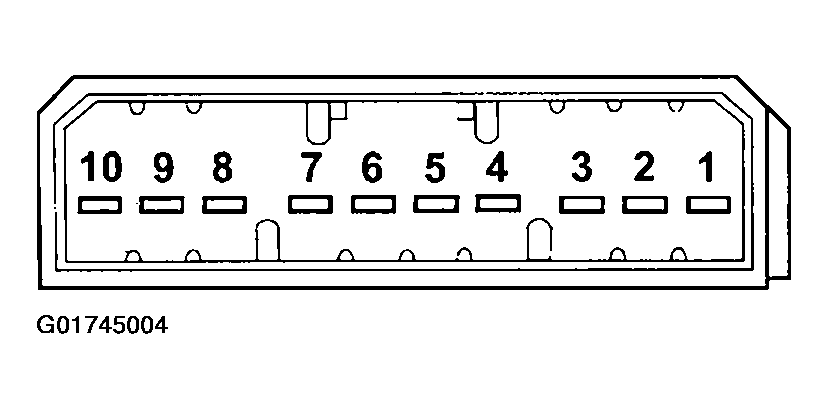

Fig 1: Identifying Front Window Switch Connector Terminals
Courtesy of DAIMLERCHRYSLER CORP.

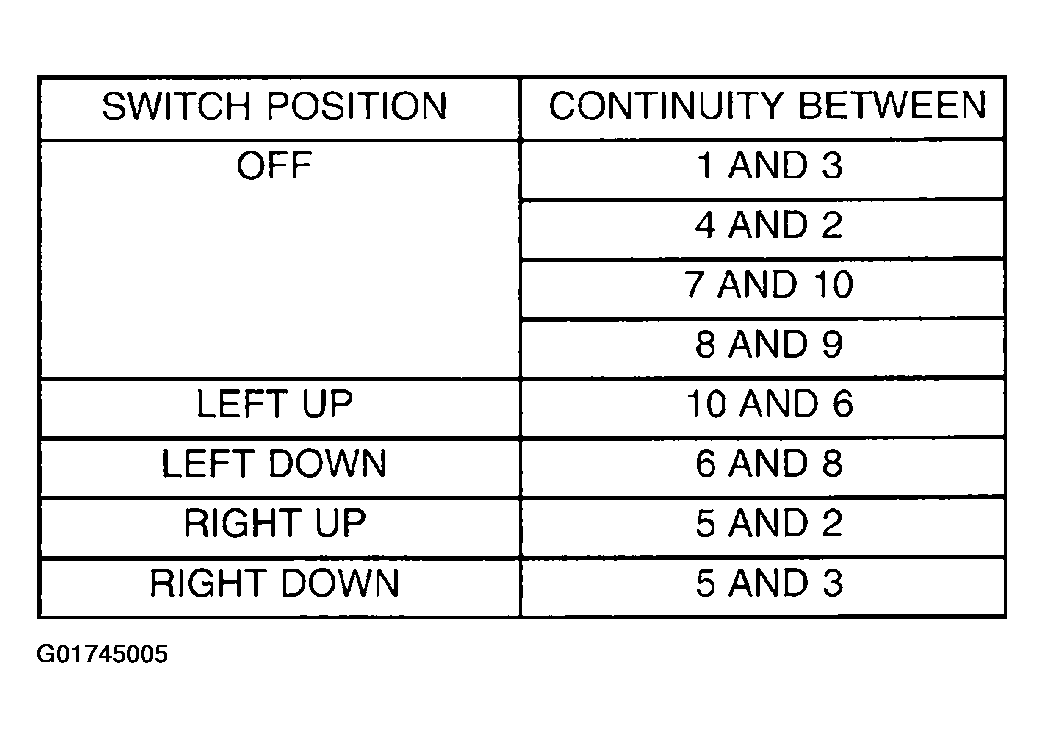

Fig 2: Testing Power Window Front Switch
Courtesy of DAIMLERCHRYSLER CORP.
If the proper results are not obtained, replace the front window switch.
Test rear switch for continuity.

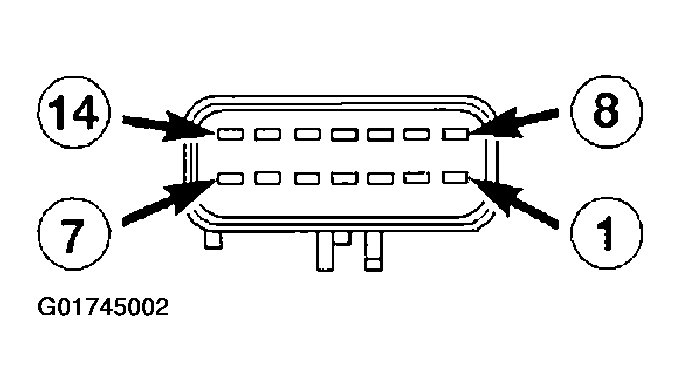

Fig 3: Identifying Rear Window Switch Connector Terminals
Courtesy of DAIMLERCHRYSLER CORP.

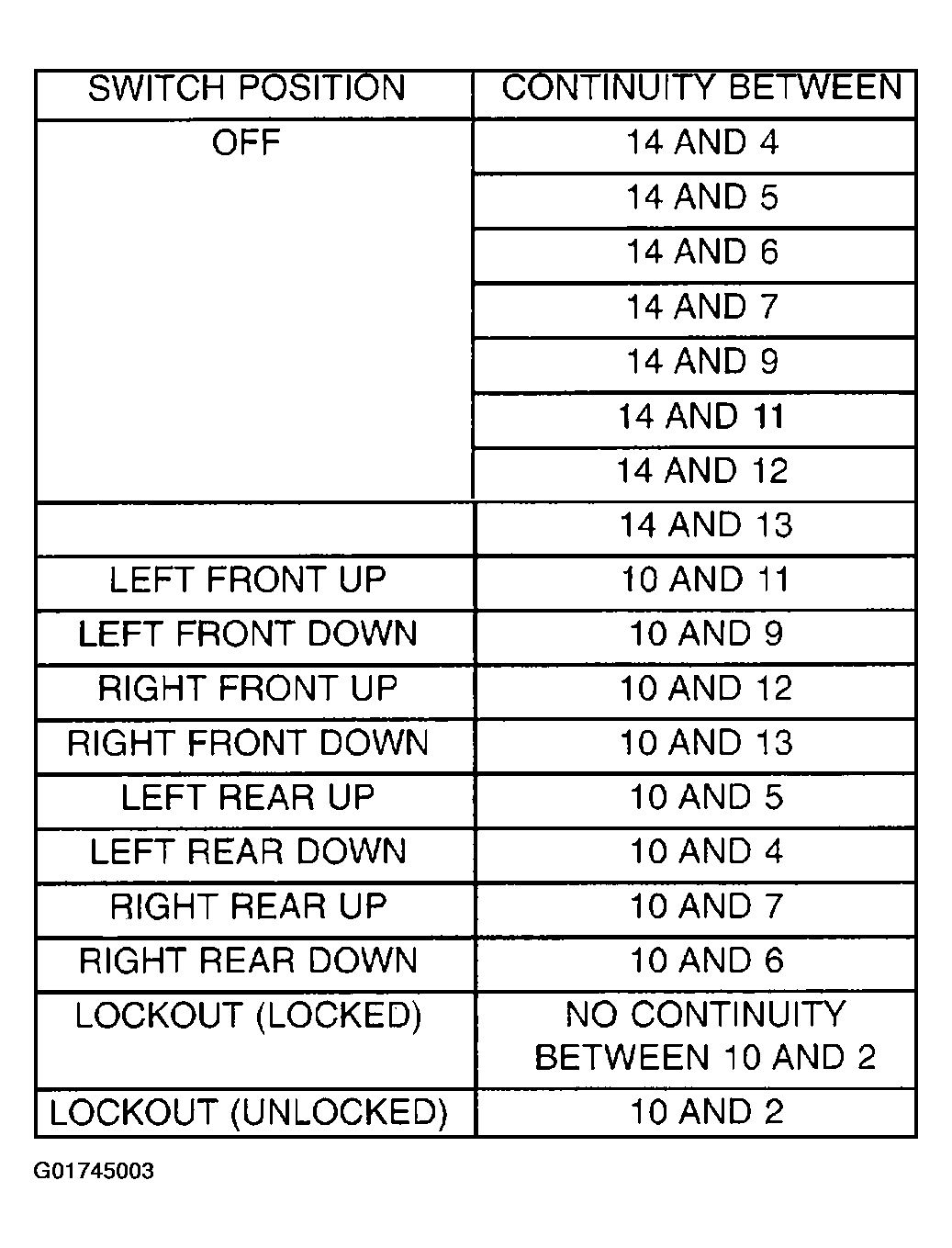

Fig 4: Testing Power Window Rear Window Switch
Courtesy of DAIMLERCHRYSLER CORP.
If the proper results are not obtained, replace the rear window switch.
