Fuel Delivery: Specifications: Torque

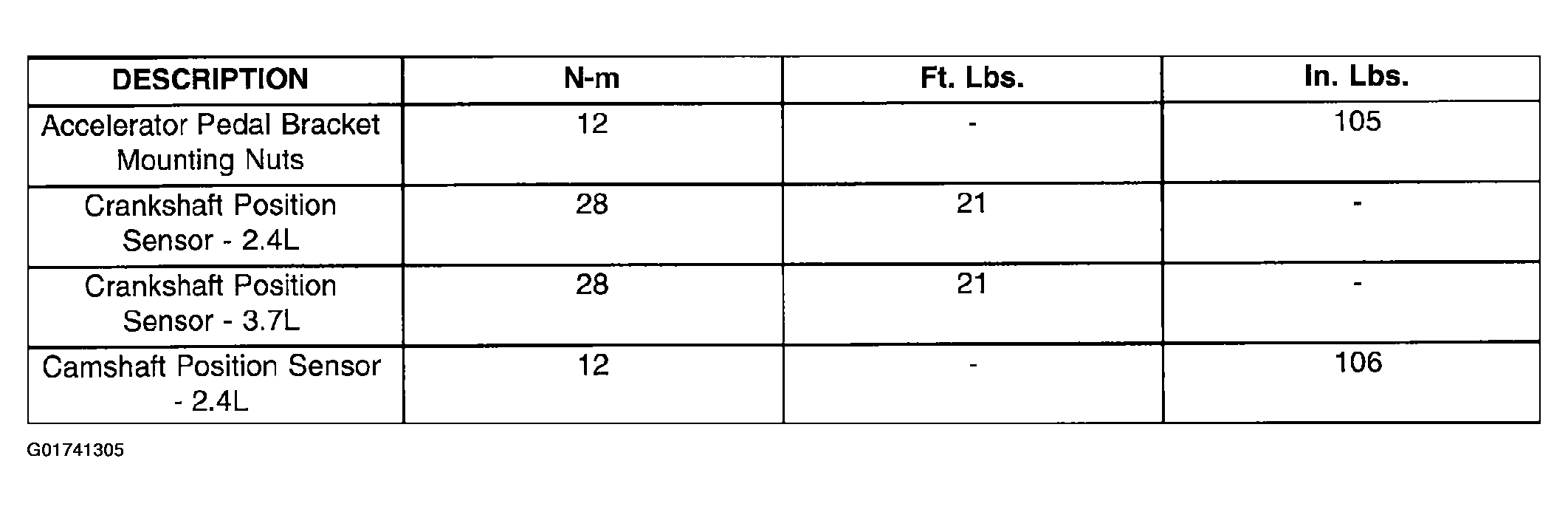

Fig 1: Torque Specifications Table (1 Of 2)
G01741305Courtesy of DAIMLERCHRYSLER CORP.

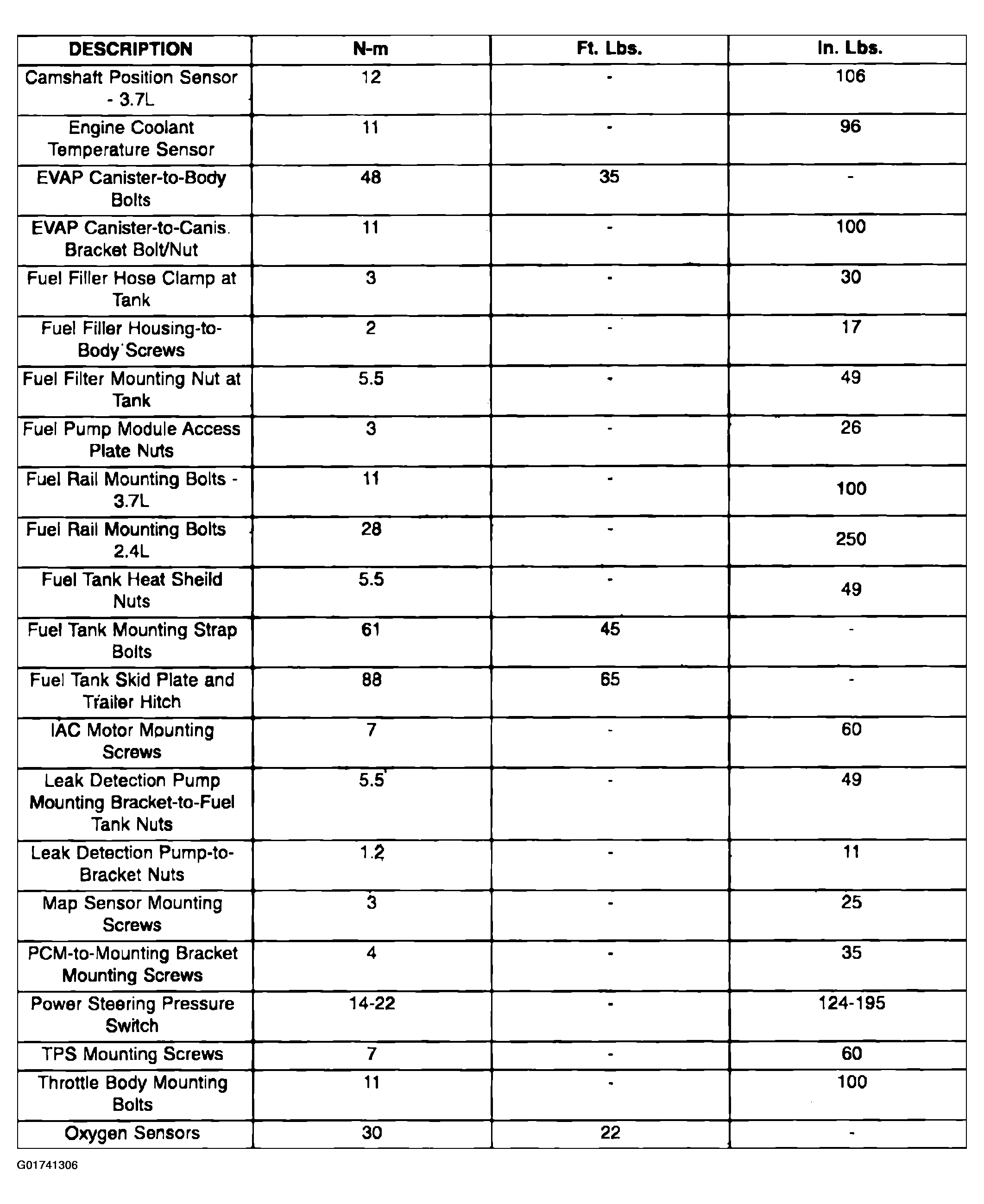

Fig 2: Torque Specifications Table (2 Of 2)
G01741306Courtesy of DAIMLERCHRYSLER CORP.
