Throttle Position Sensor: Removal: 3.7L

The Throttle Position Sensor (TPS) is mounted to the throttle body.

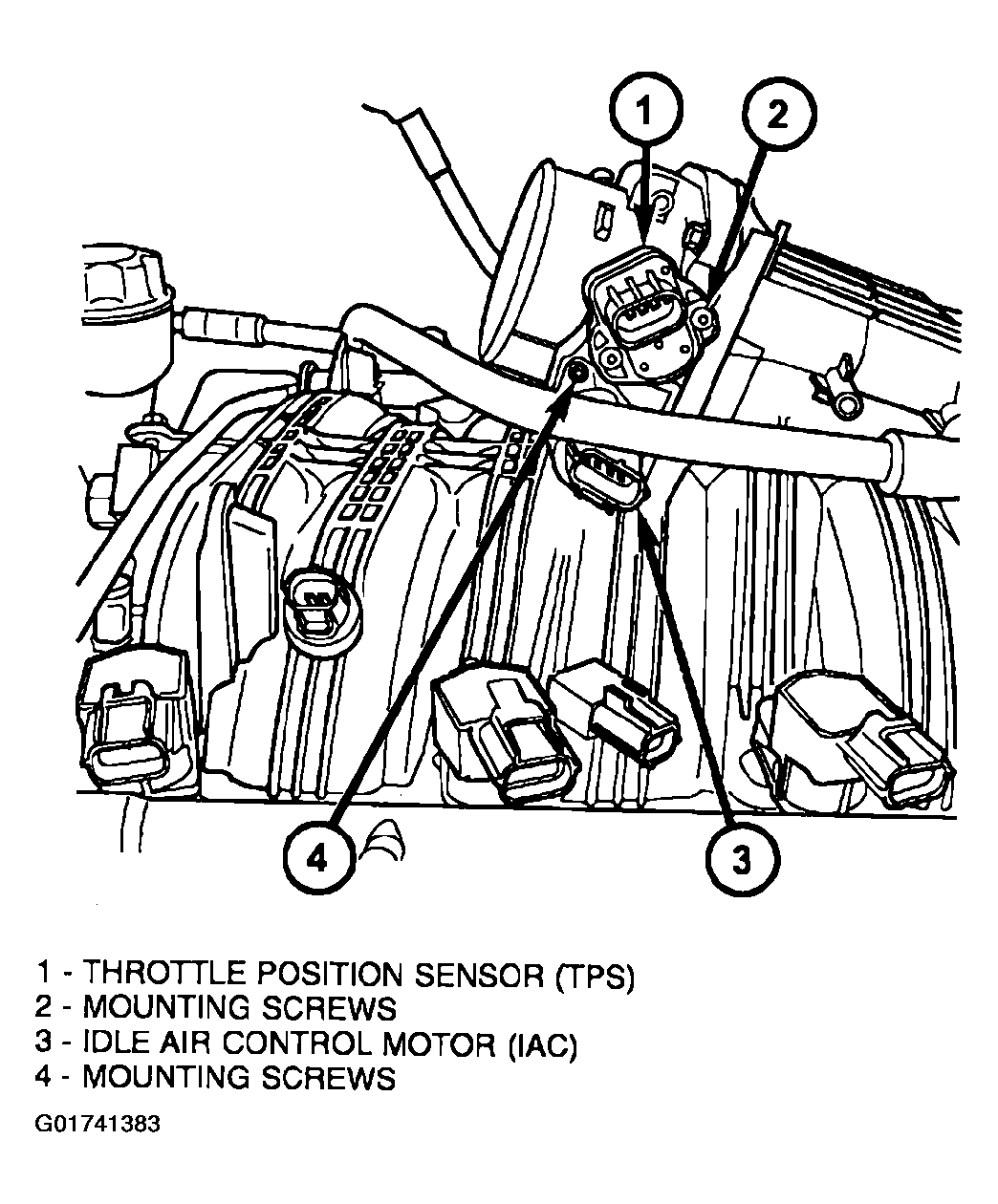

Fig 1: Identifying TPS/IAC Motor - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

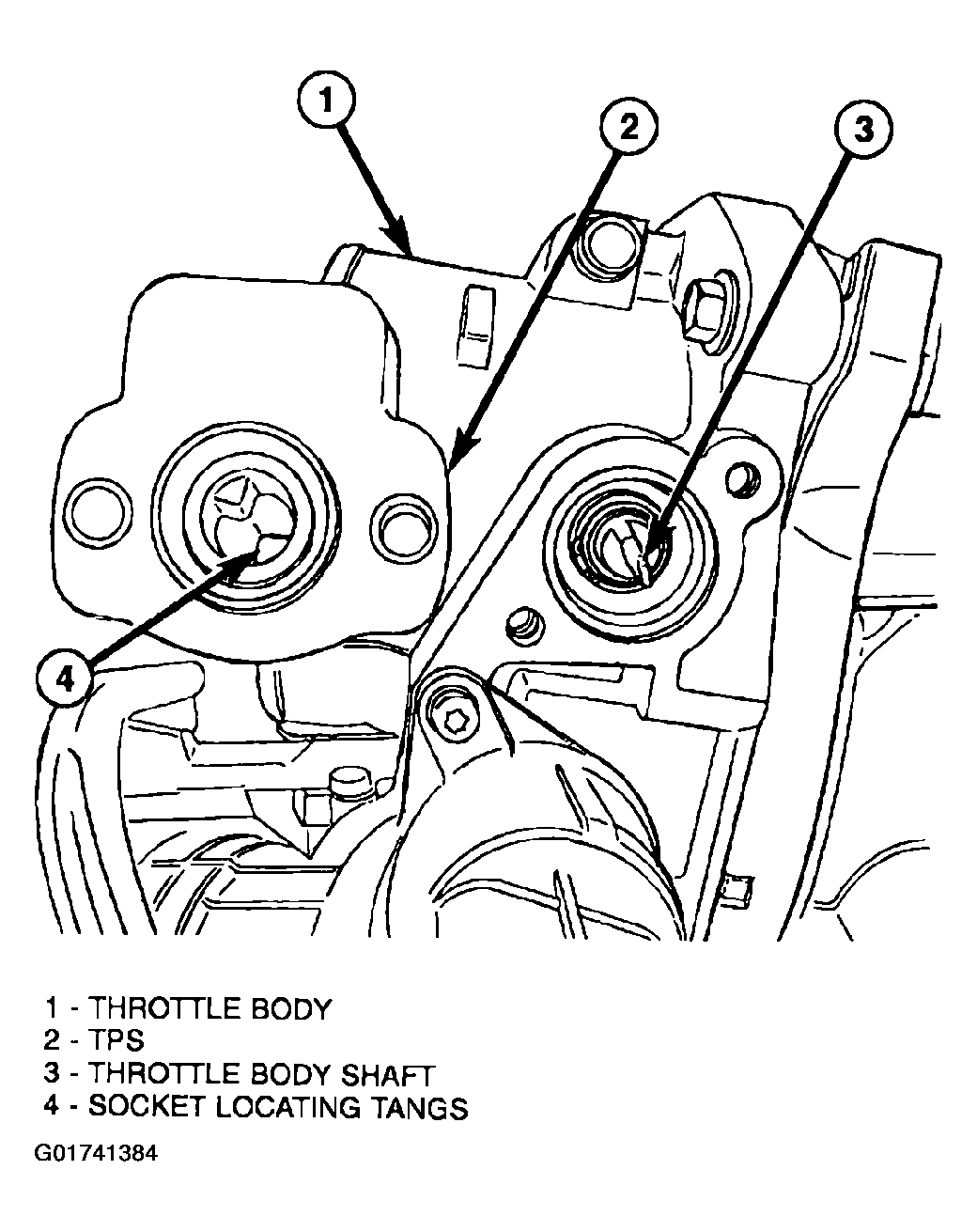

Fig 2: Installing TPS - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect TPS electrical connector.
2. Remove 2 TPS mounting screws.
3. Remove TPS.
