Fuel Injector: Removal

  1. Remove fuel rail. Refer to FUEL RAIL .
  2. Disconnect clip(s) that retain fuel injector(s) to fuel rail.

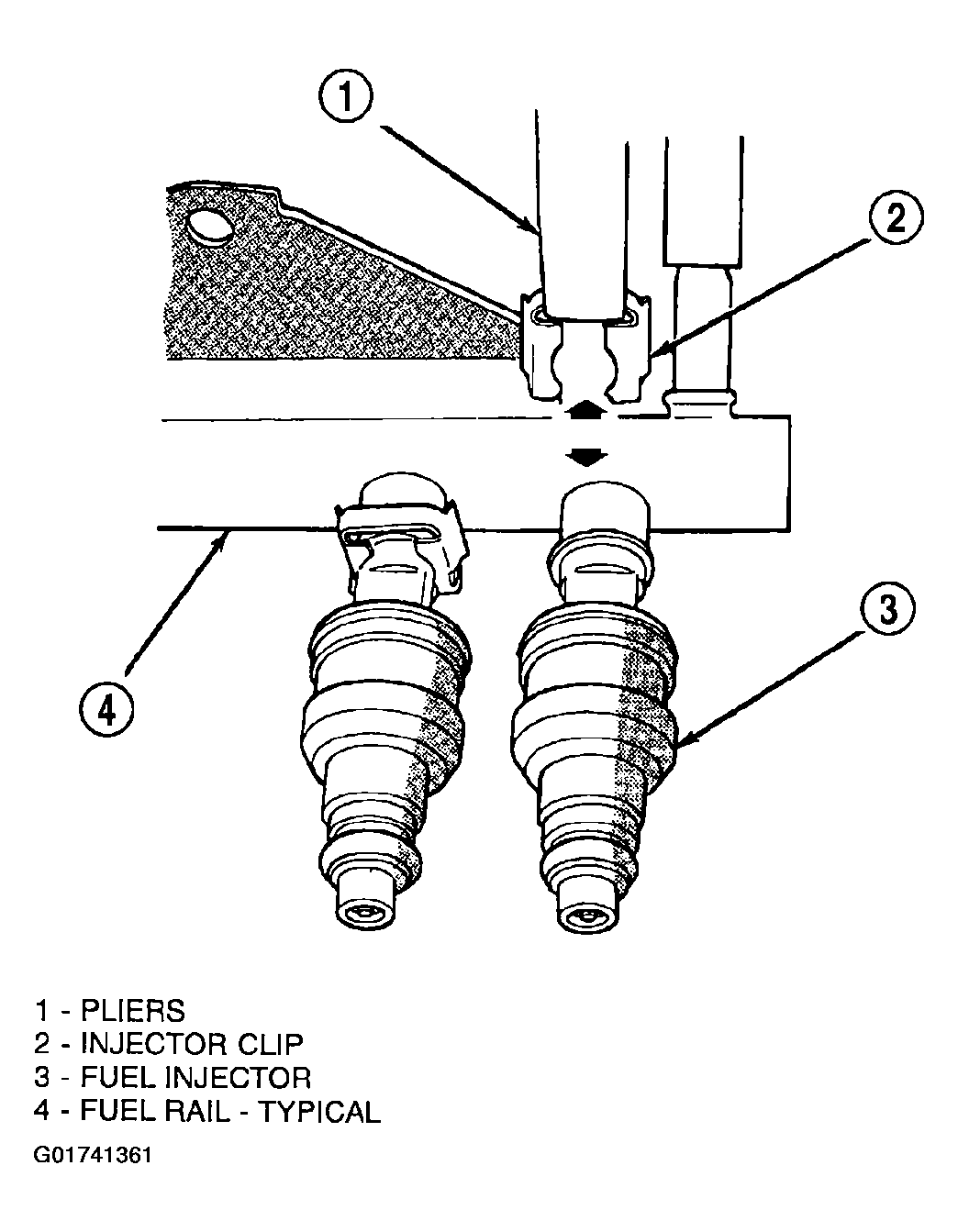

    Fig 1: Disconnecting Injector Retaining Clip
    G01741361Courtesy of DAIMLERCHRYSLER CORP.
