Intake Air Temperature Sensor: Installation: 3.7L

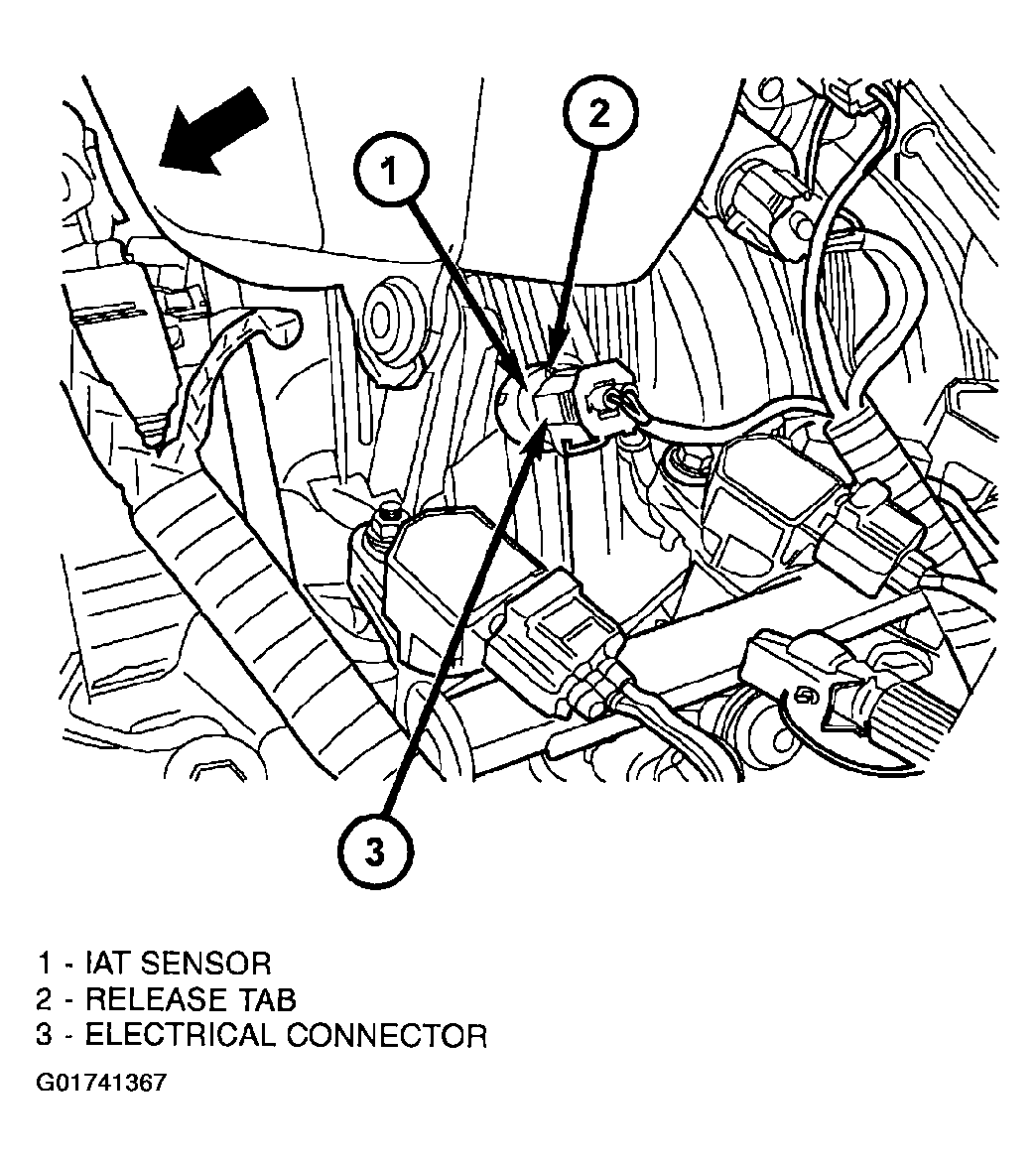

The intake manifold air temperature (IAT) sensor is installed into the left side of intake manifold plenum. See Figure.

1. Check condition of sensor o-ring.
2. Clean sensor mounting hole in intake manifold.
3. Position sensor into intake manifold and rotate clockwise until past release tab.
4. Install electrical connector.
