Right Front Wheel Speed Sensor Connector End View

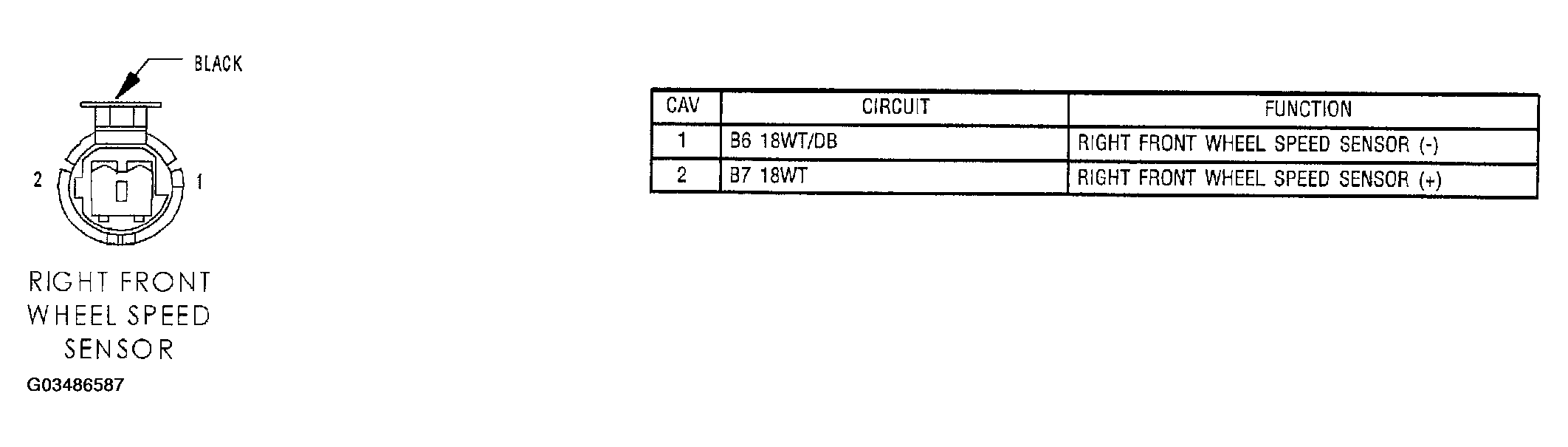

Fig 1: Right Front Wheel Speed Sensor Connector End View
G03486587Courtesy of DAIMLERCHRYSLER CORP.
