Front Wheel Speed Sensor: Removal
- Raise vehicle and turn wheel outward to access the sensor.
- Disconnect sensor wire connector at harness plug.
- Remove sensor wire from mounting retainers.
- Clean sensor and surrounding area with shop towel before removal.

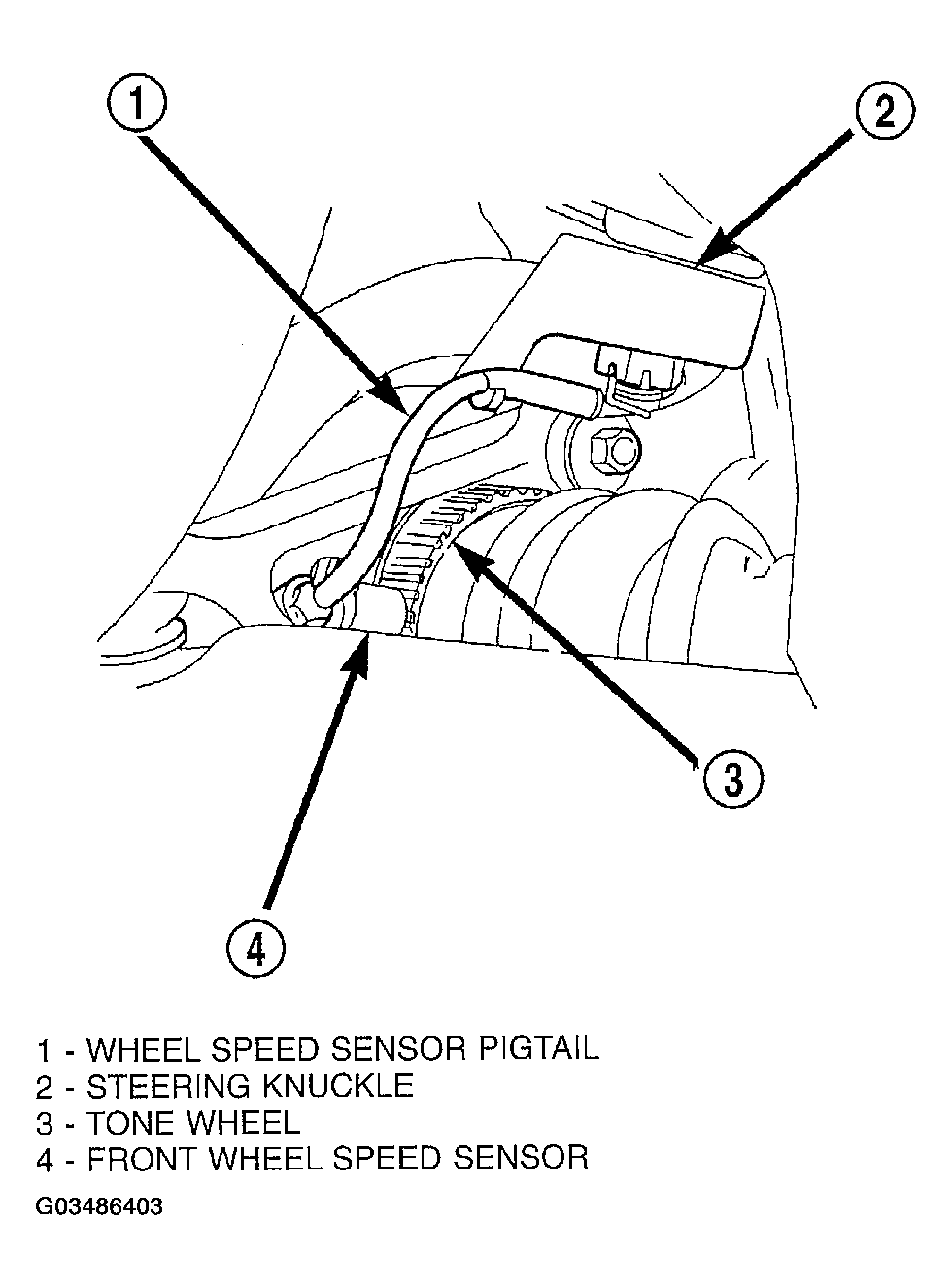

- Remove bolt attaching sensor to steering knuckle and remove sensor (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
