Compass/Temperature Mirror

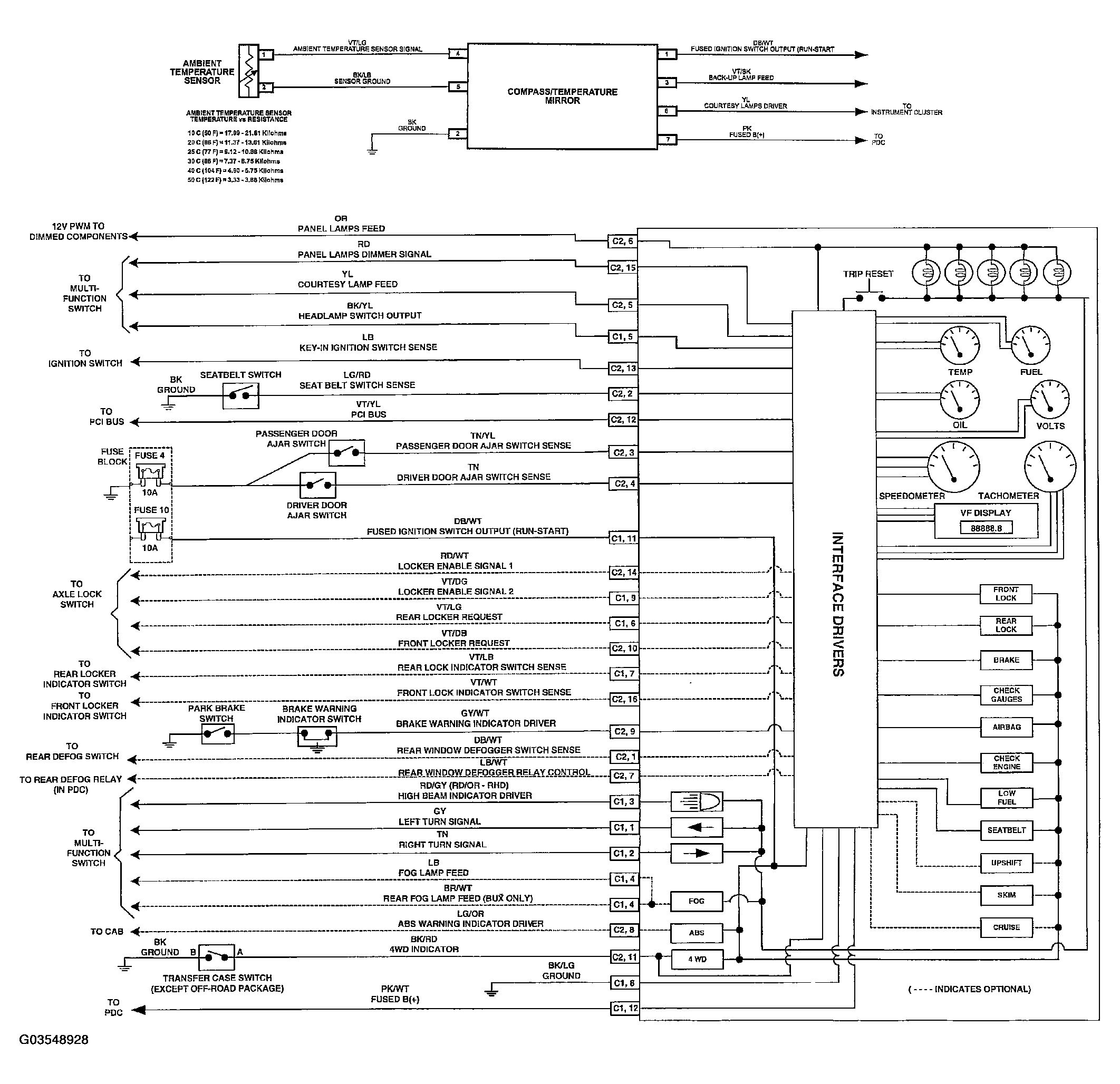

Fig 1: Compass/Temperature Mirror Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
