Throttle Position Sensor: Locations

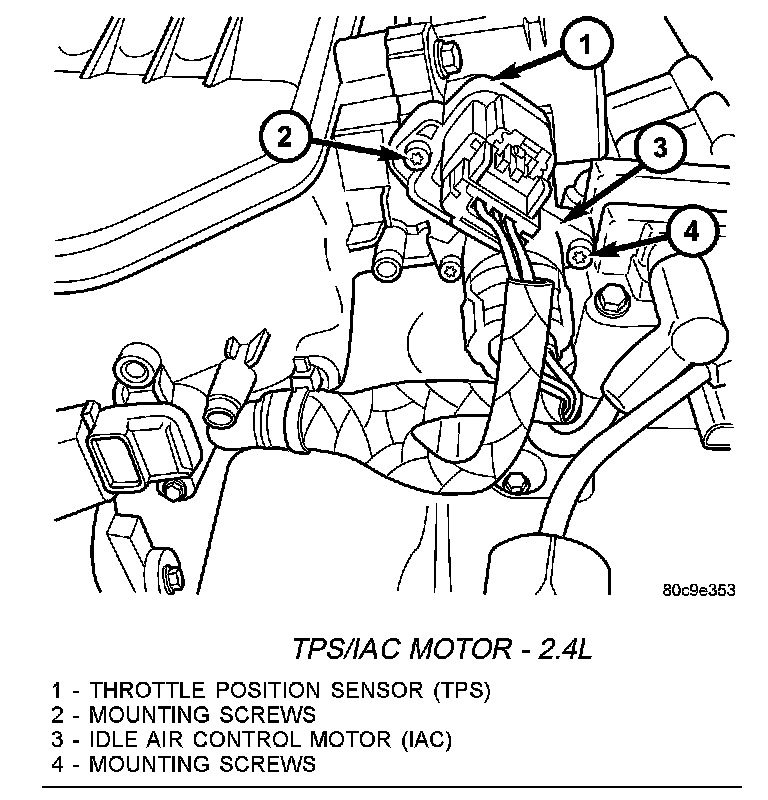

TPS/IAC Motor - 2.4L:

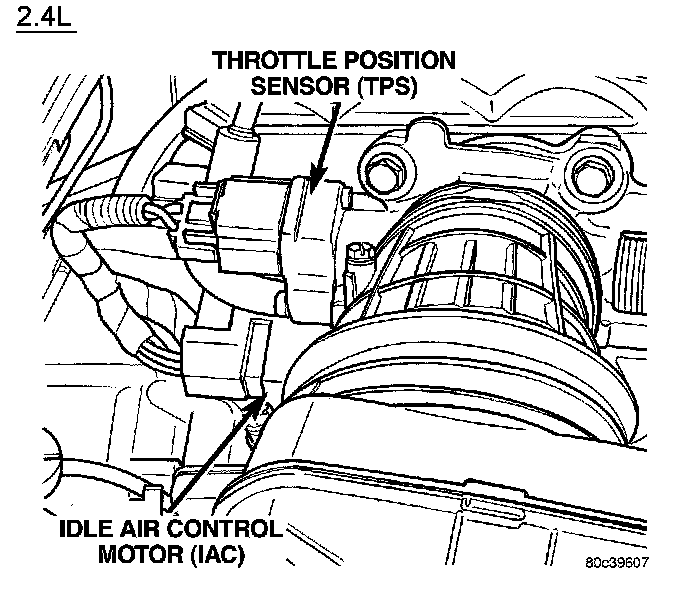

2.4L:

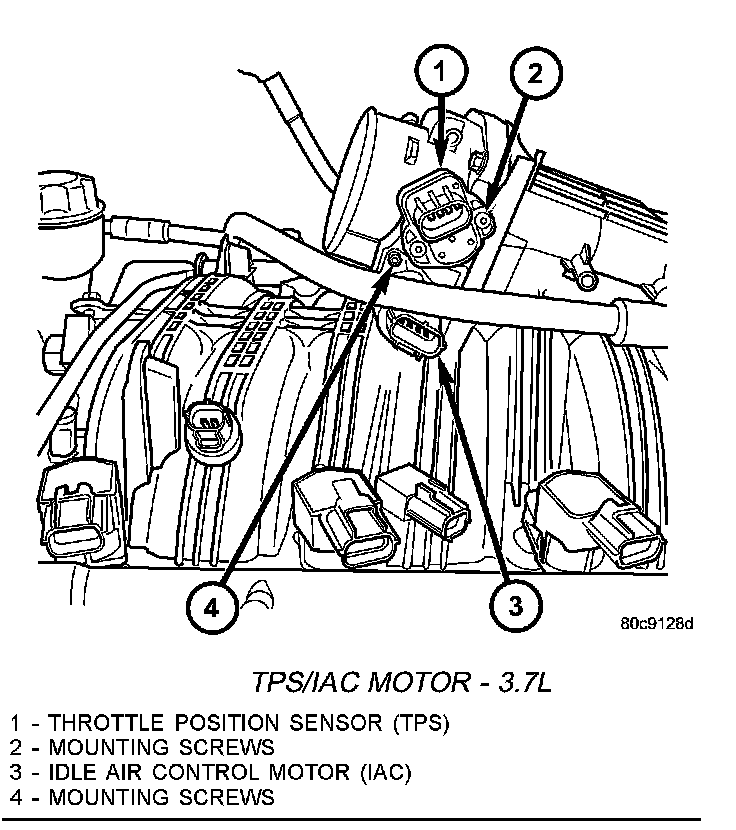

TPS/IAC Motor - 3.7L:

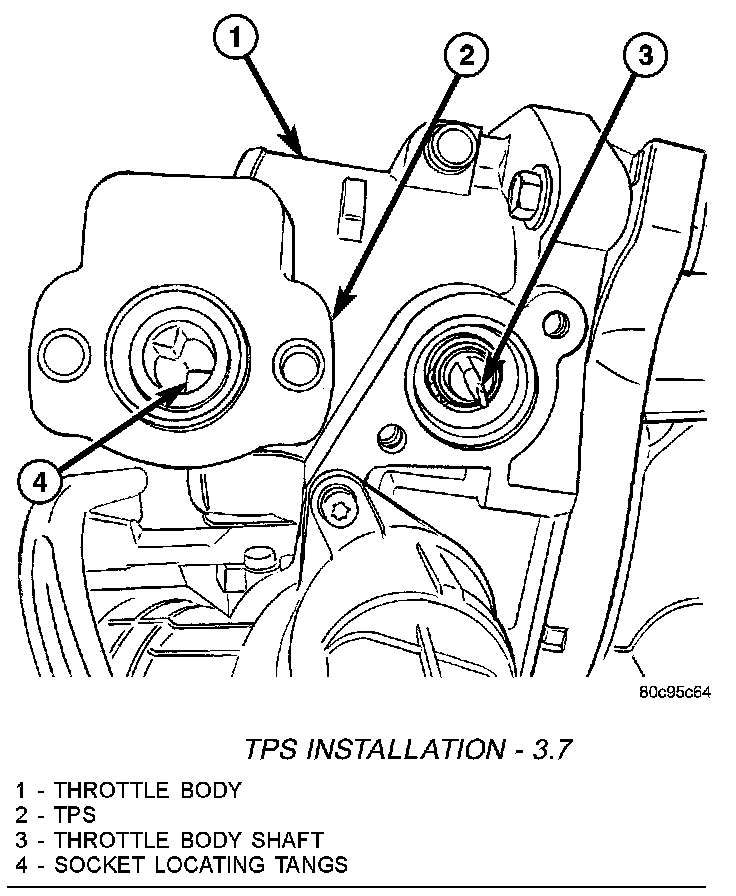

TPS Installation - 3.7L:




The Throttle Position Sensor (TPS) is mounted to the throttle body.
