Engine Torque Specifications

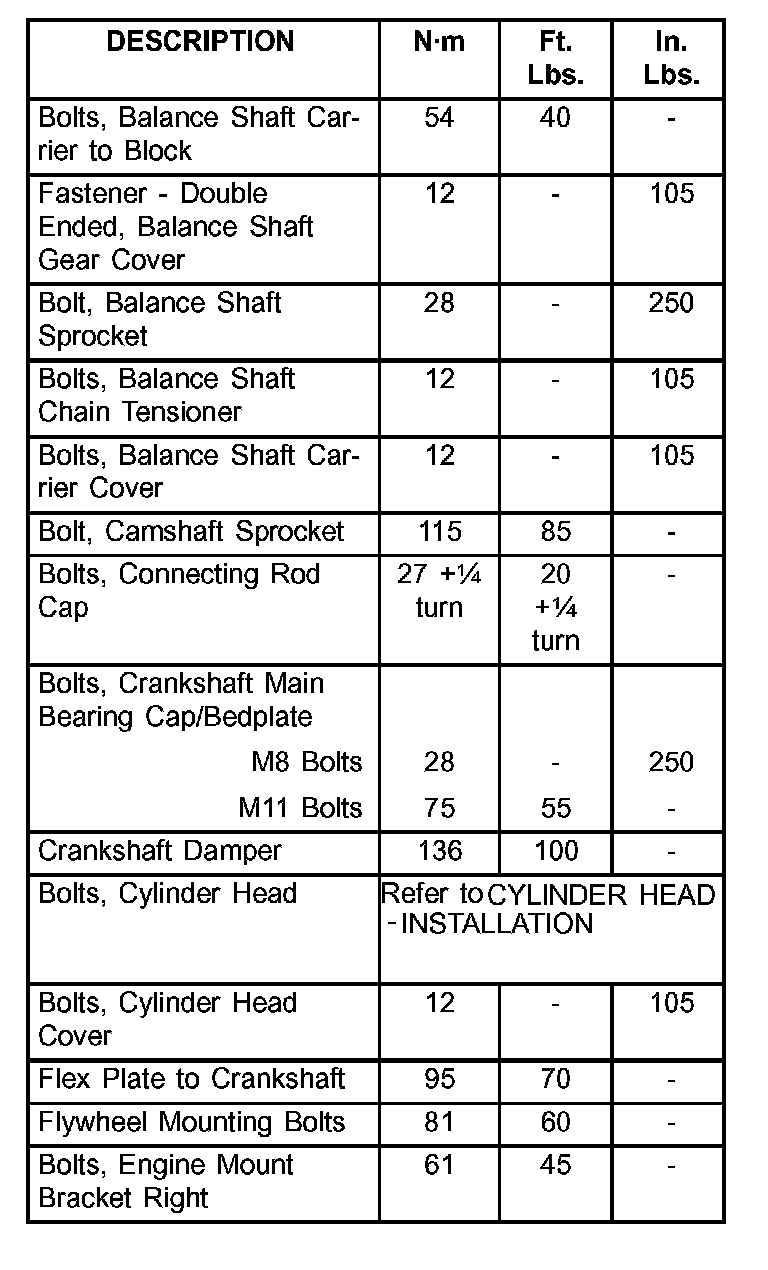

Torque specifications

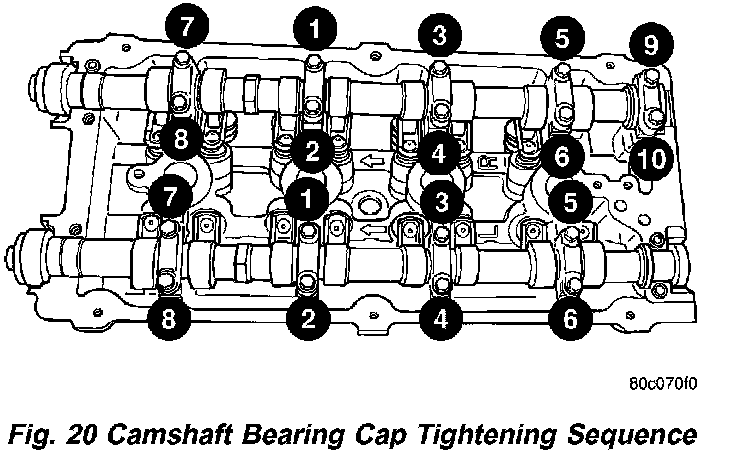

Camshaft bearing caps





M6 fasteners 12 Nm (105 inch lbs.)
M8 fasteners 28 Nm (250 inch lbs.)

Water pump screws 12 Nm (105 inch Lbs.)
