Ignition Coil: Description: 3.7L

The 3.7L V-6 engine uses 6 dedicated, and individually fired coil for each spark plug. See Fig 1. Each coil is mounted directly into the cylinder head and onto the top of each spark plug. See Fig 2.

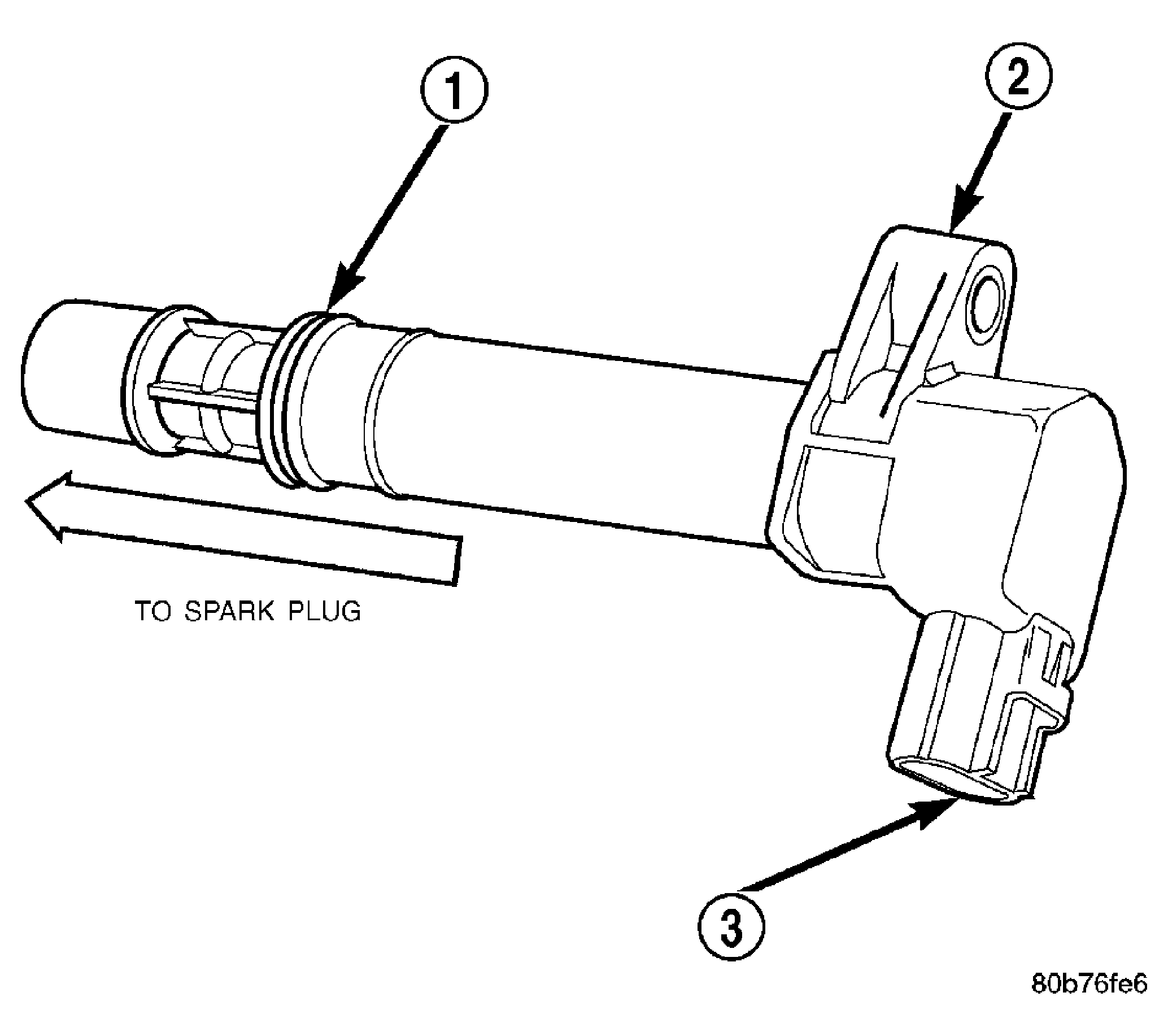

Fig 1: Ignition Coil - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - O-RING

2 - IGNITION COIL

3 - ELECTRICAL CONNECTOR

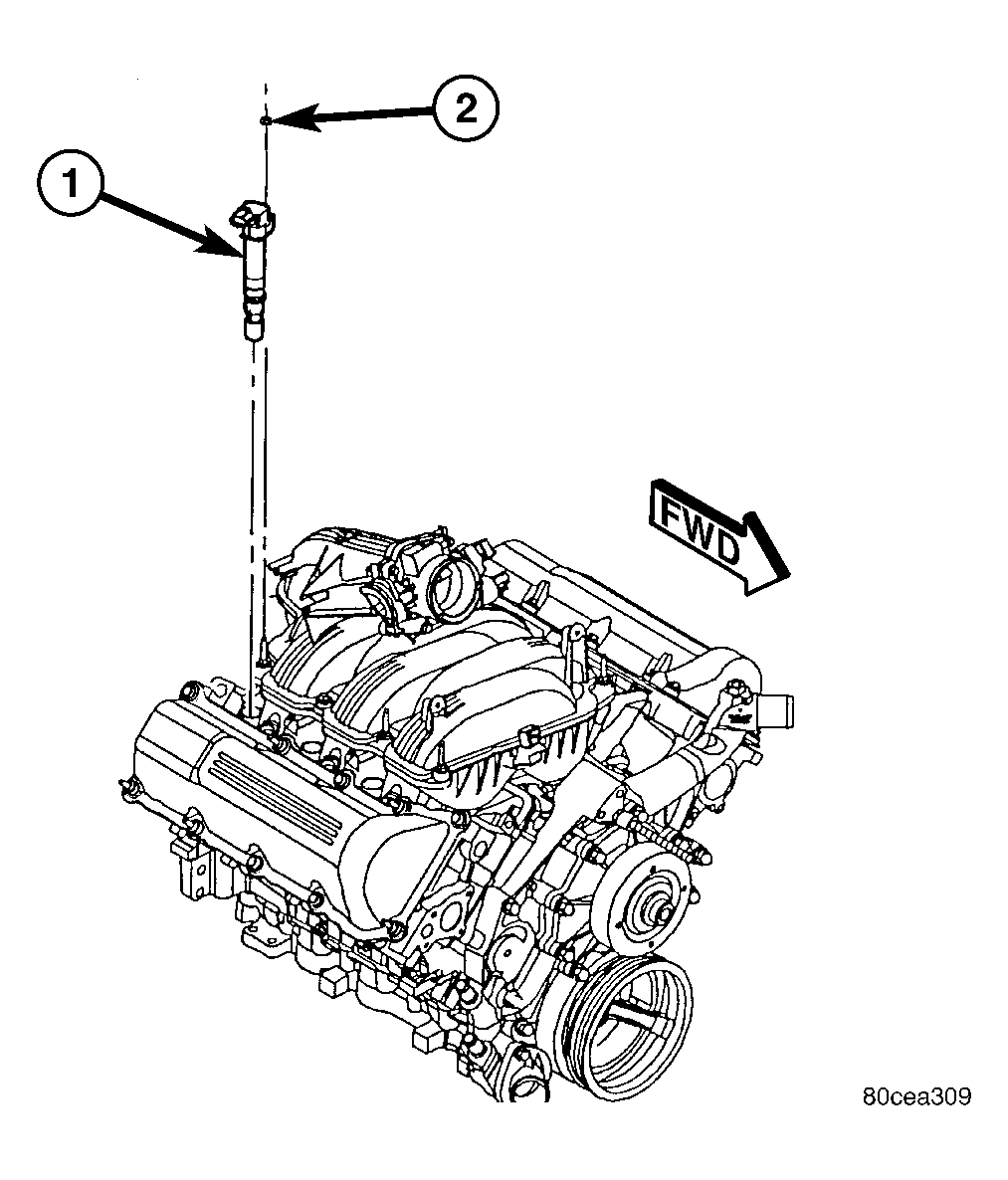

Fig 2: Ignition Coil Location - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION COIL

2 - COIL MOUNTING NUT
