Courtesy Lamps Inoperative - All Lamps

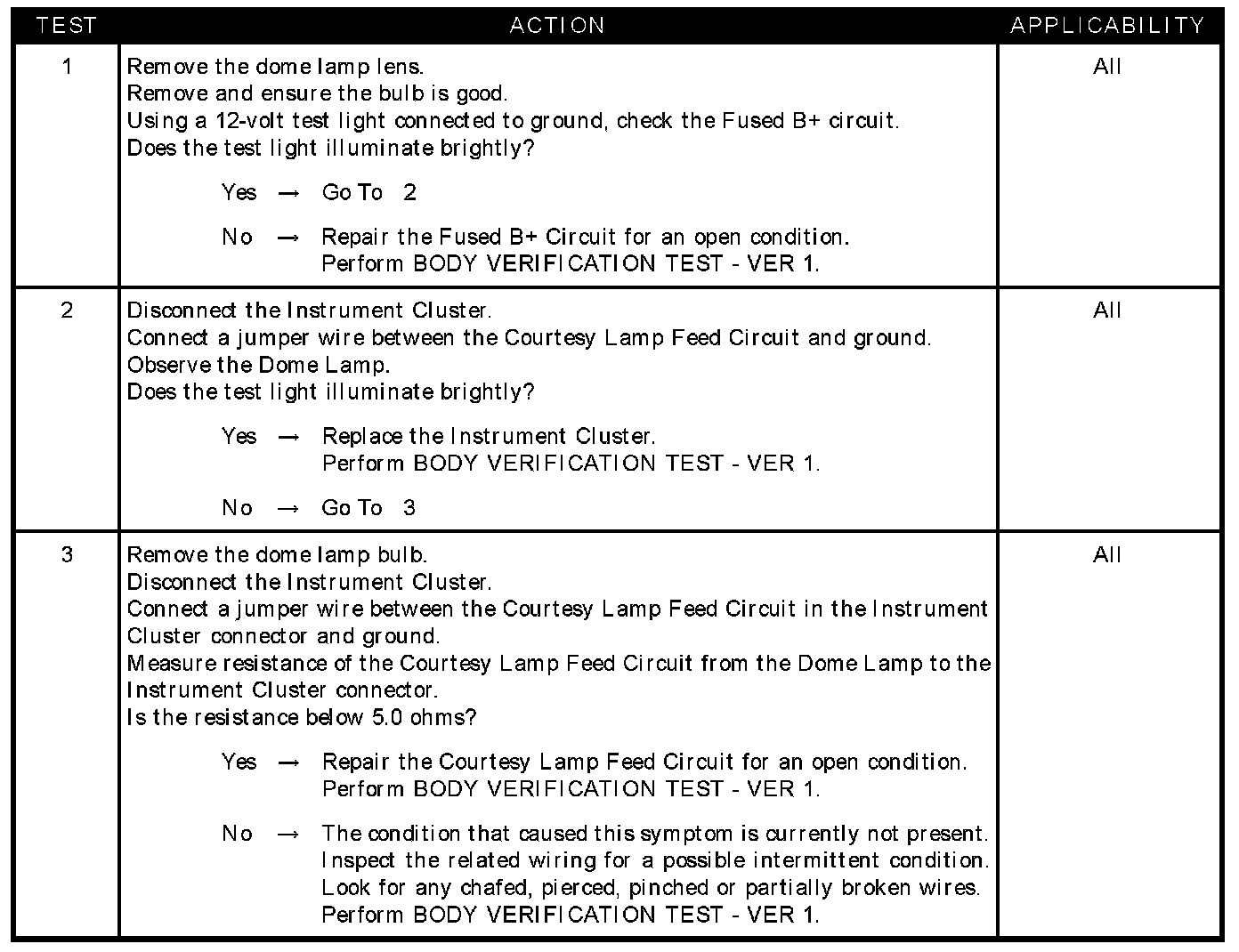

Test 1 - 3:






SYMPTOM
COURTESY LAMPS INOPERATIVE - ALL LAMPS

POSSIBLE CAUSES
- Fused B+ circuit open
- Instrument cluster - courtesy lamp open
- Courtesy lamp feed circuit open
- Intermittent condition
