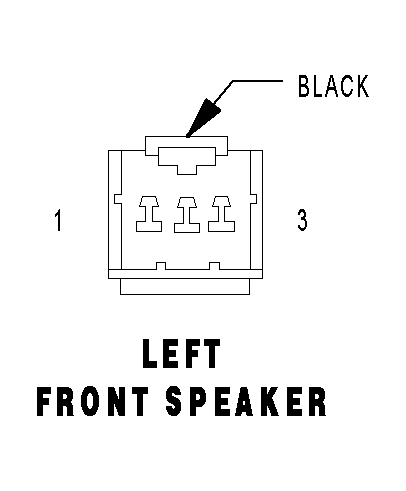

Left Front Speaker Connector End View
LEFT FRONT SPEAKER - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X53 18DG |
LEFT FRONT SPEAKER (+) |
| 2 |
- |
- |
| 3 |
X55 18DG/BR |
LEFT FRONT SPEAKER (-) |
