Horn Connector End View

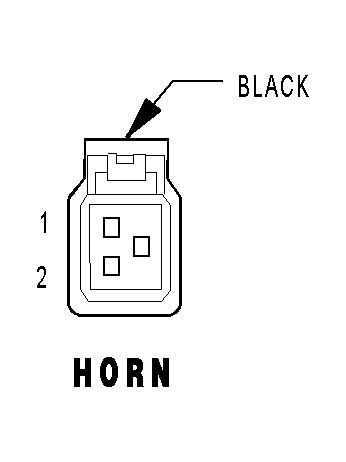

HORN - BLACK 2 WAY

GCTJ580097Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 Z950 18BK GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
