Throttle Position Sensor: Removal: 2.4L

The Throttle Position Sensor (TPS) is mounted to the throttle body. See Fig 1.

1. Disconnect TPS electrical connector.
2. Remove 2 TPS mounting screws.
3. Remove TPS.

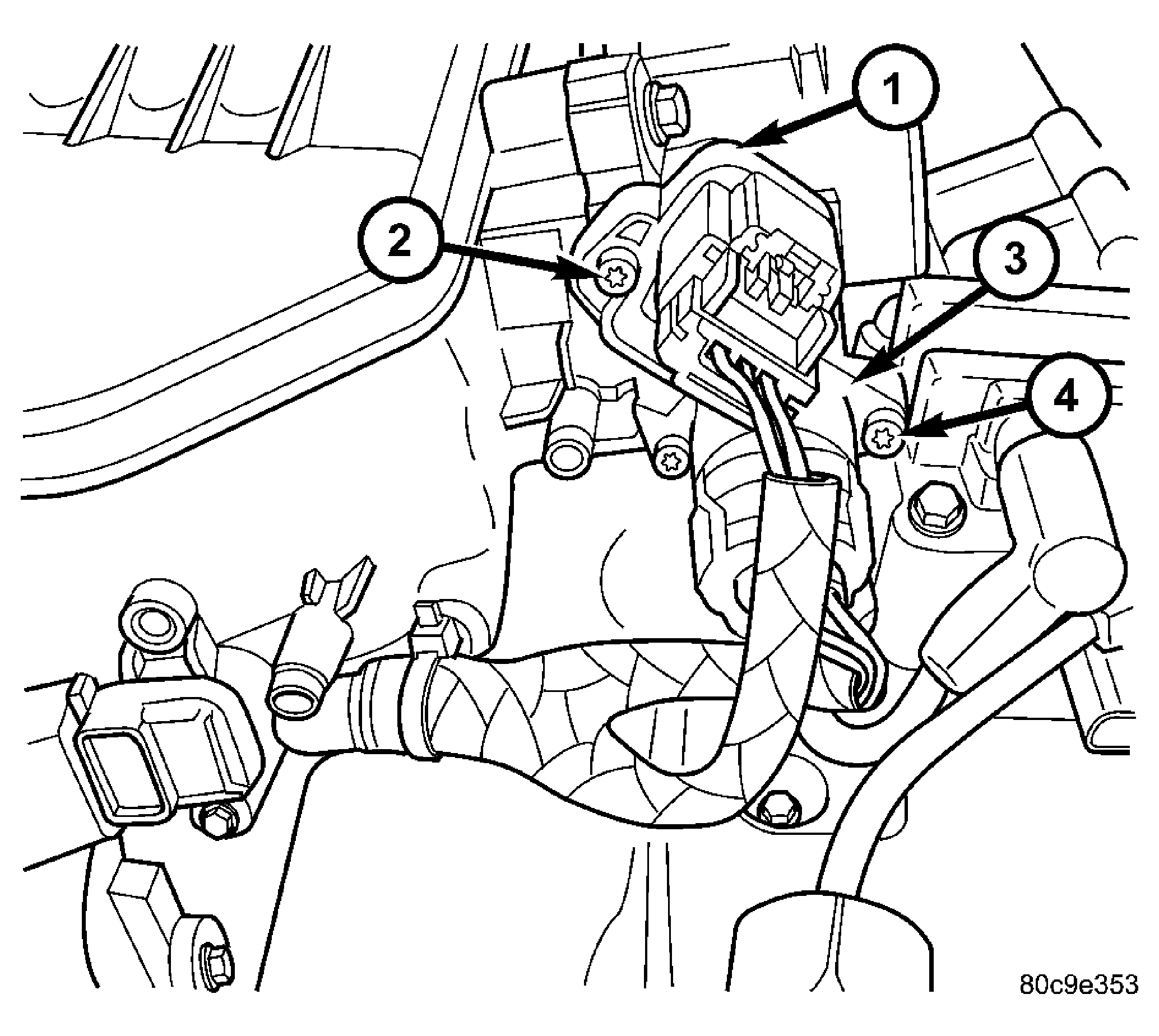

Fig 1: TPS/IAC Motor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.
