Air Bag Control Module

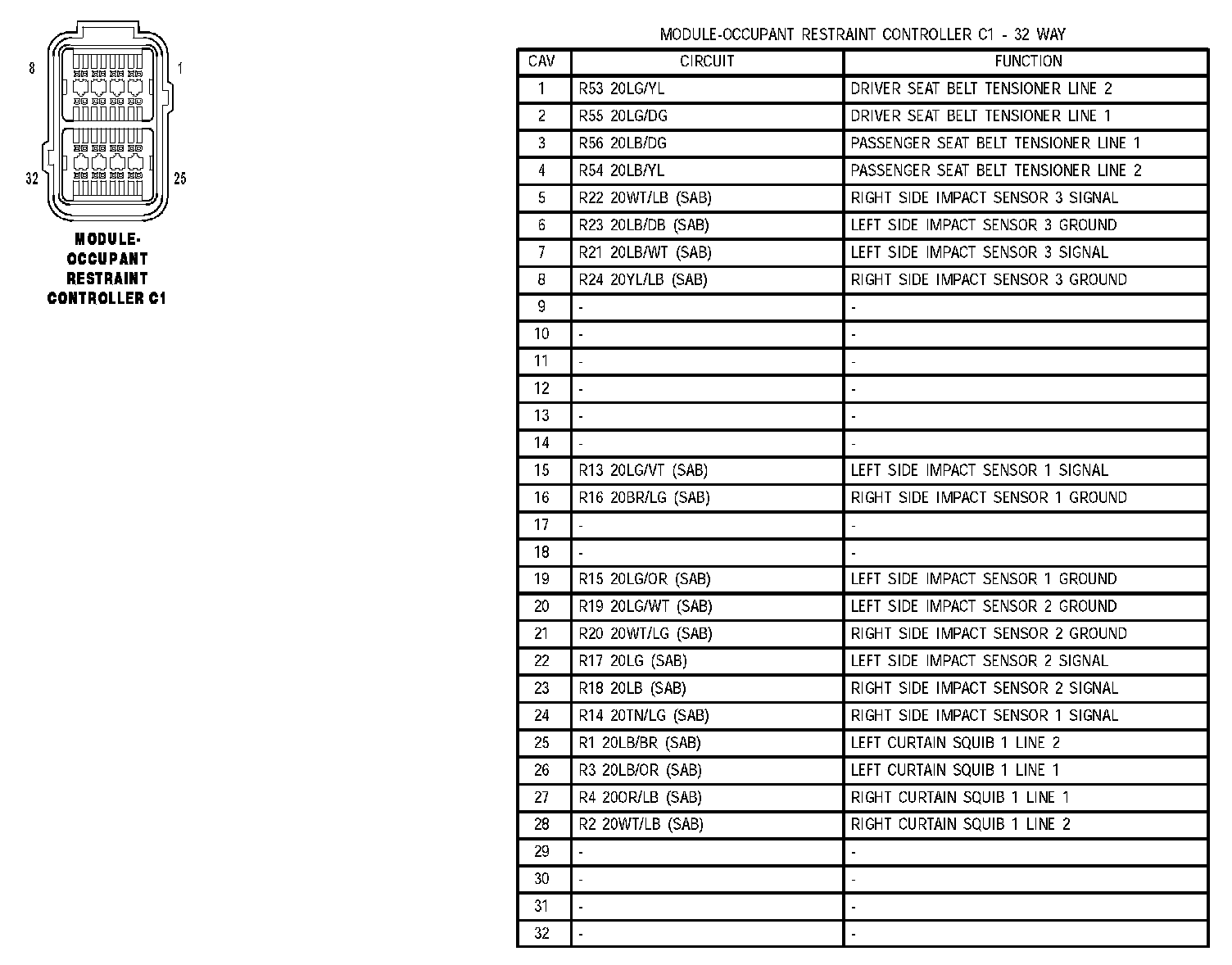

Module Occupant Restraint Controller C1:

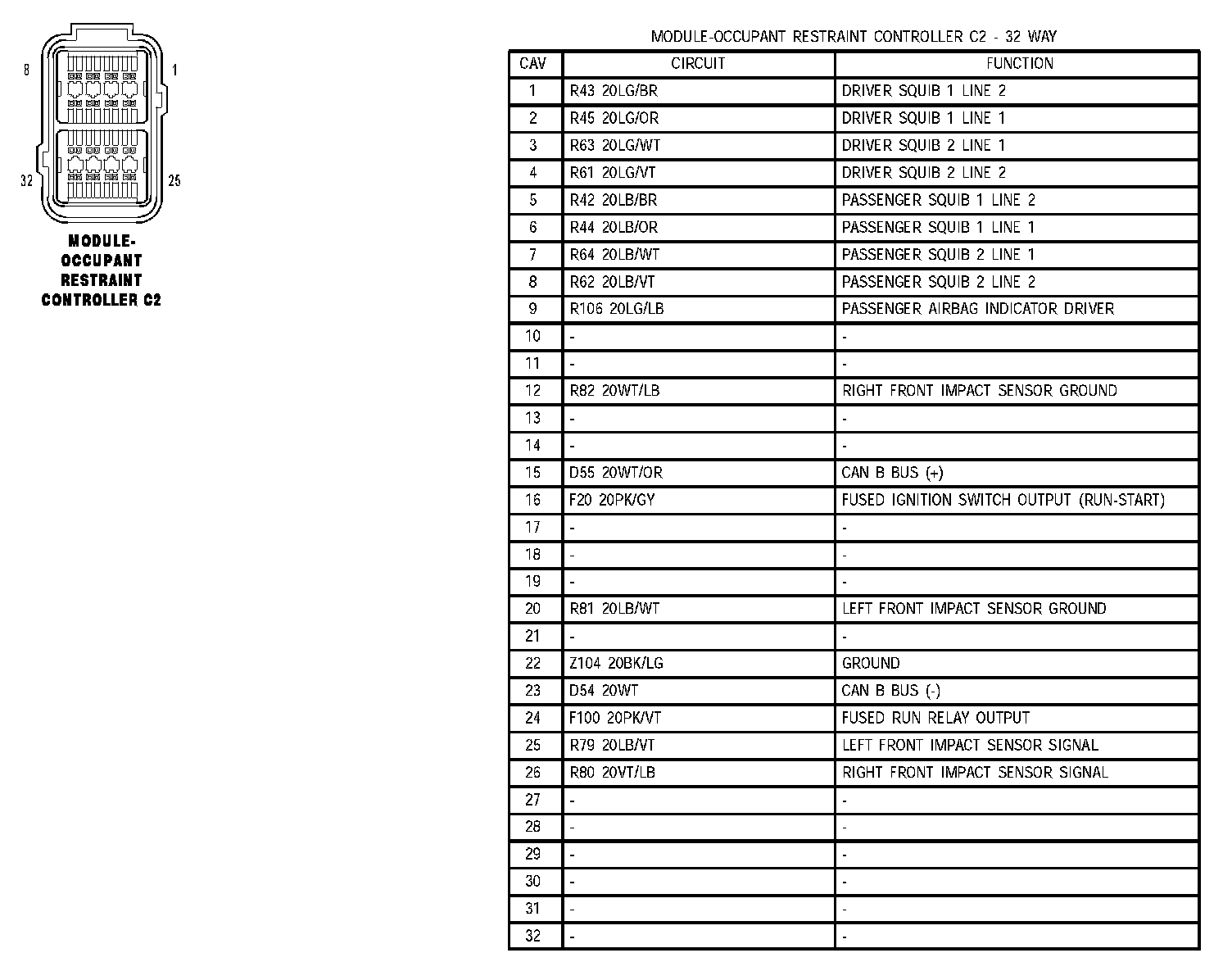

Module Occupant Restraint Controller C2:
