Steering Control Module

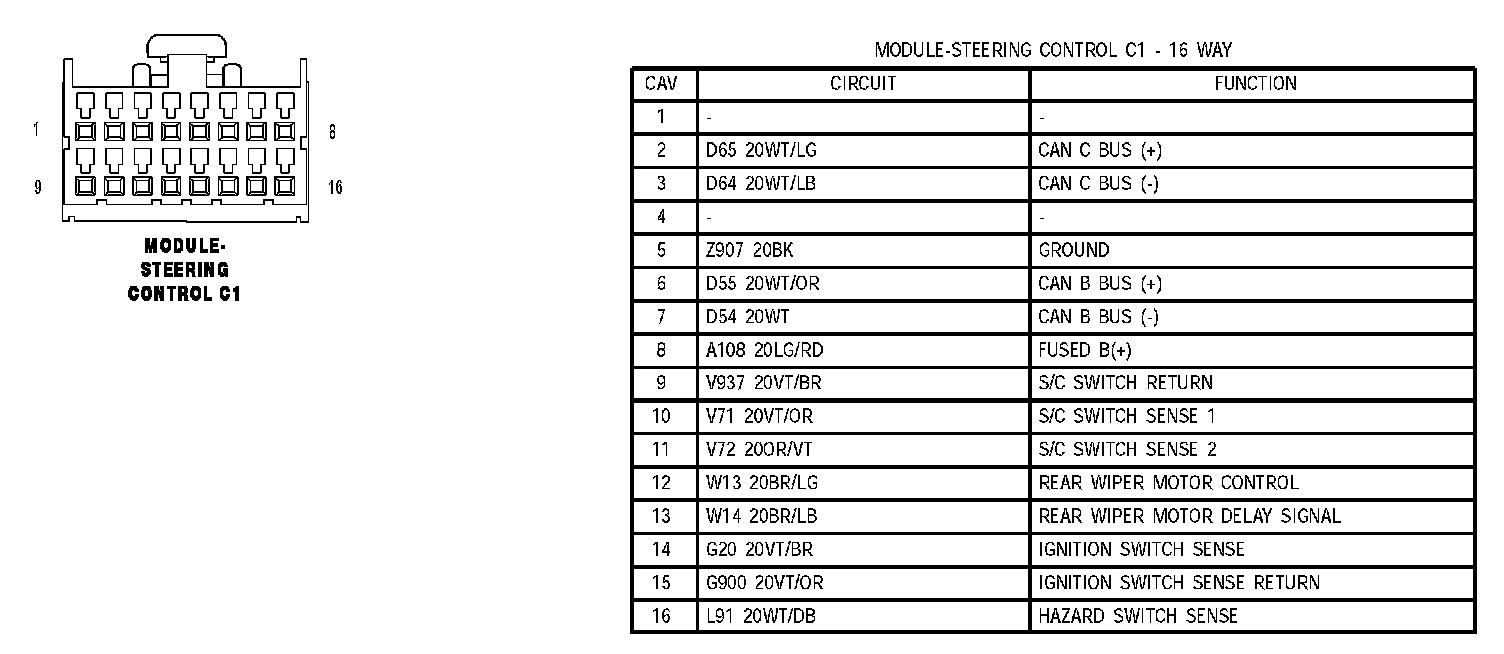

Module Steering Control C1:

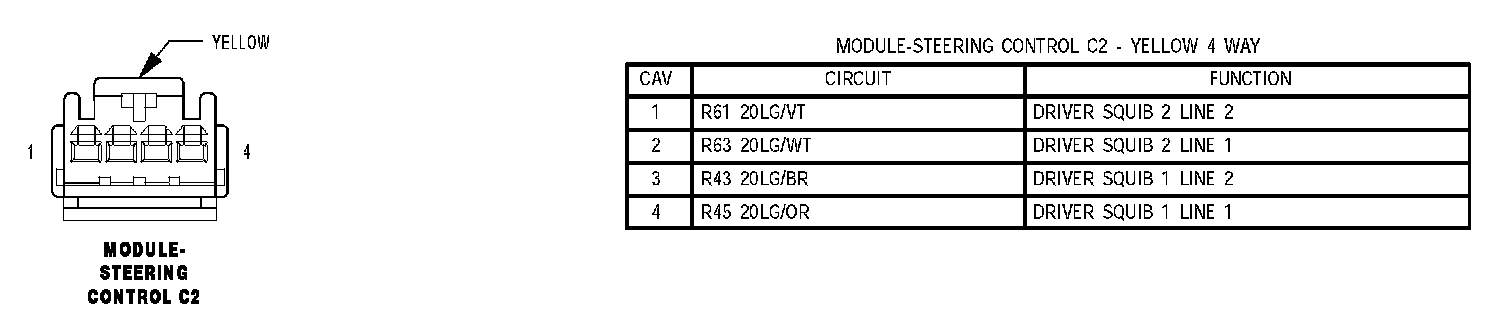

Module Steering Control C2:

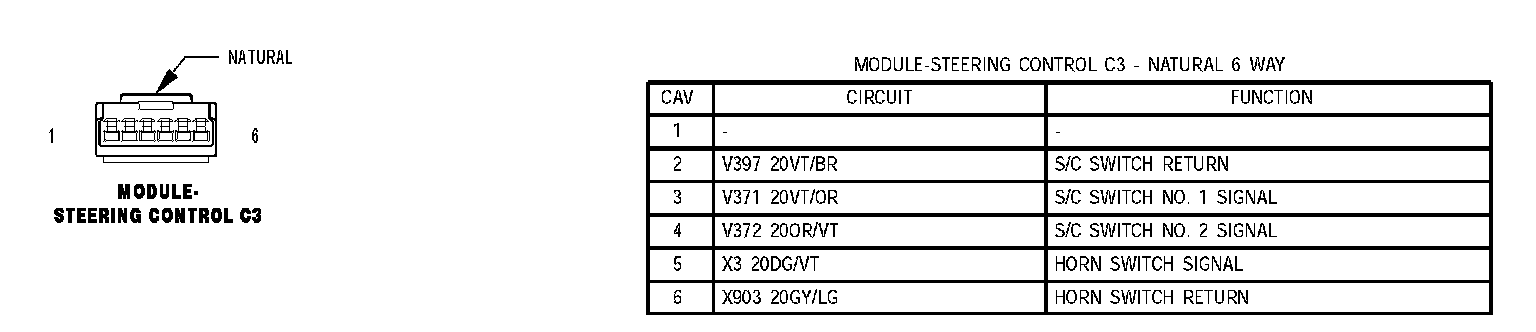

Module Steering Control C3:

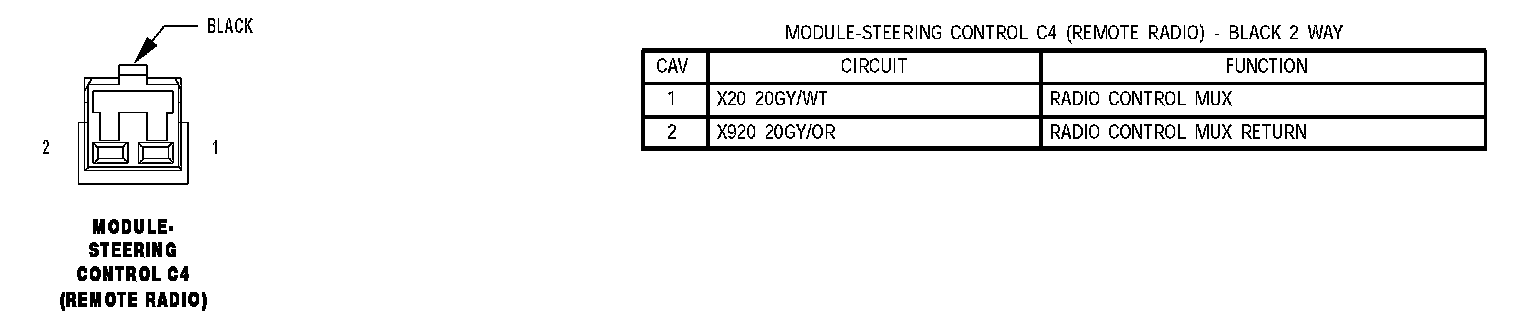

Module Steering Control C4 (Remote Radio):
