3.7L / 4.7L

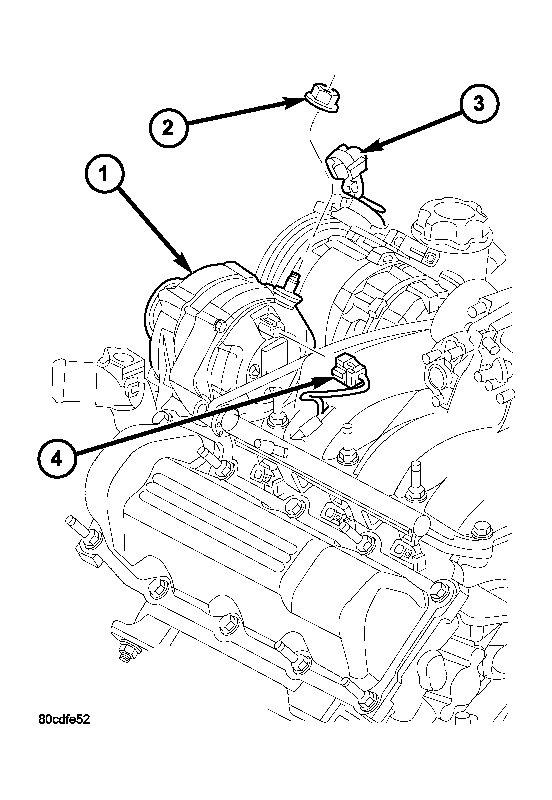

Fig 1: Locating Generator & Connectors - 3.7L/4.7L
GC0008572Courtesy of DAIMLERCHRYSLER CORP.
WARNING: Disconnect negative cable from battery before removing battery output wire (B+ wire) from generator. Failure to do so can result in injury or damage to electrical system.
  1. Disconnect negative battery cable at battery.
  2. Remove generator drive belt.
  3. Unsnap plastic insulator cap (3) from B+ output terminal.
  4. Remove B+ terminal mounting nut (2) at rear of generator. Disconnect terminal from generator.
  5. Disconnect field wire connector (4) at rear of generator by pushing on connector tab.

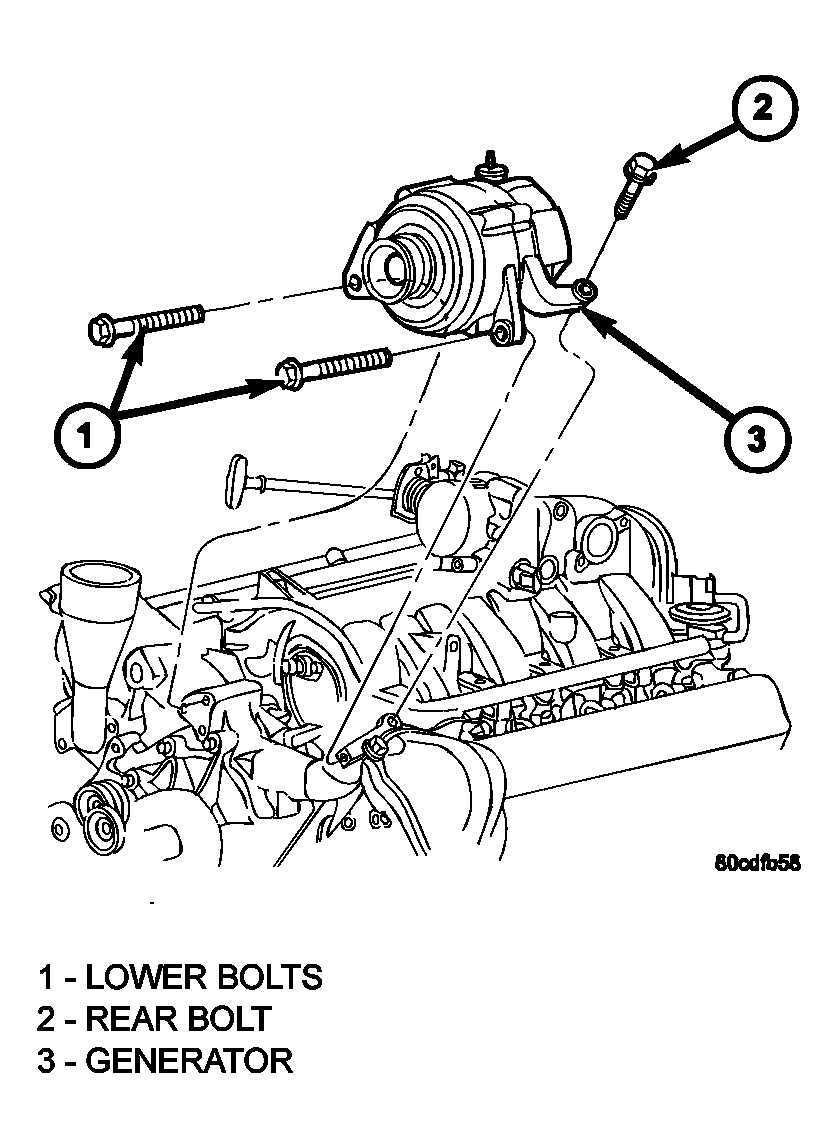

    Fig 2: Removing/Installing Generator - 3.7L/4.7L
    G04283380Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove 1 rear vertical generator mounting bolt (2).
  7. Remove 2 front horizontal generator mounting bolts (1).
  8. Remove generator from vehicle.
