Throttle Body: Installation: 4.7L
Courtesy of DAIMLERCHRYSLER CORP.

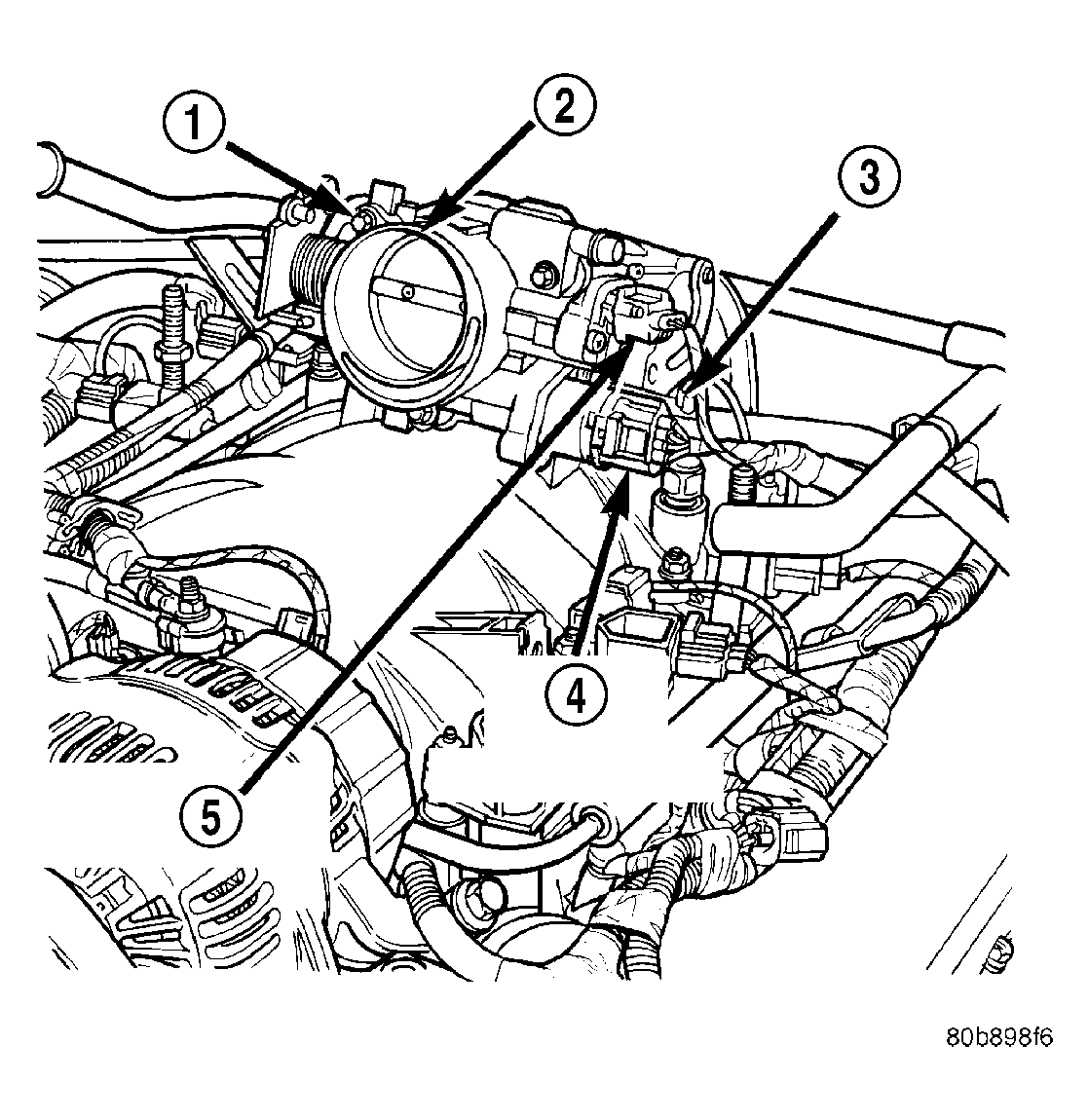

| 1 - MOUNTING BOLTS (3) |
| 2 - THROTTLE BODY |
| 3 - IAT SENSOR CONNECTOR |
| 4 - IAC MOTOR CONNECTOR |
| 5 - TPS CONNECTOR |
- Check condition of throttle body-to-intake manifold O-ring. Replace as necessary.
- Clean mating surfaces of throttle body and intake manifold.
- Install throttle body-to-intake manifold O-ring.
- Install throttle body to intake manifold.
- Install 3 mounting bolts (1). See Fig 1Tighten bolts to 12 N.m (105 in. lbs.) torque.
- Install control cables.
- Install electrical connectors.
- Install necessary vacuum lines.
- Install air plenum.
