Tire Pressure Sensor: Removal

  1. Raise and support vehicle. Remove tire and wheel assembly from vehicle.
  2. Let the air out of the tire.
  3. Remove tire from wheel according to manufacturer's instructions being careful not to damage TPM sensor with dismounting tools.
  4. Remove sensor nut.
  5. Remove sensor from wheel. See Fig 3.
Fig 1: Identifying Tire Pressure Sensor Components (1 Of 2)
G00225419Courtesy of CHRYSLER CORP.

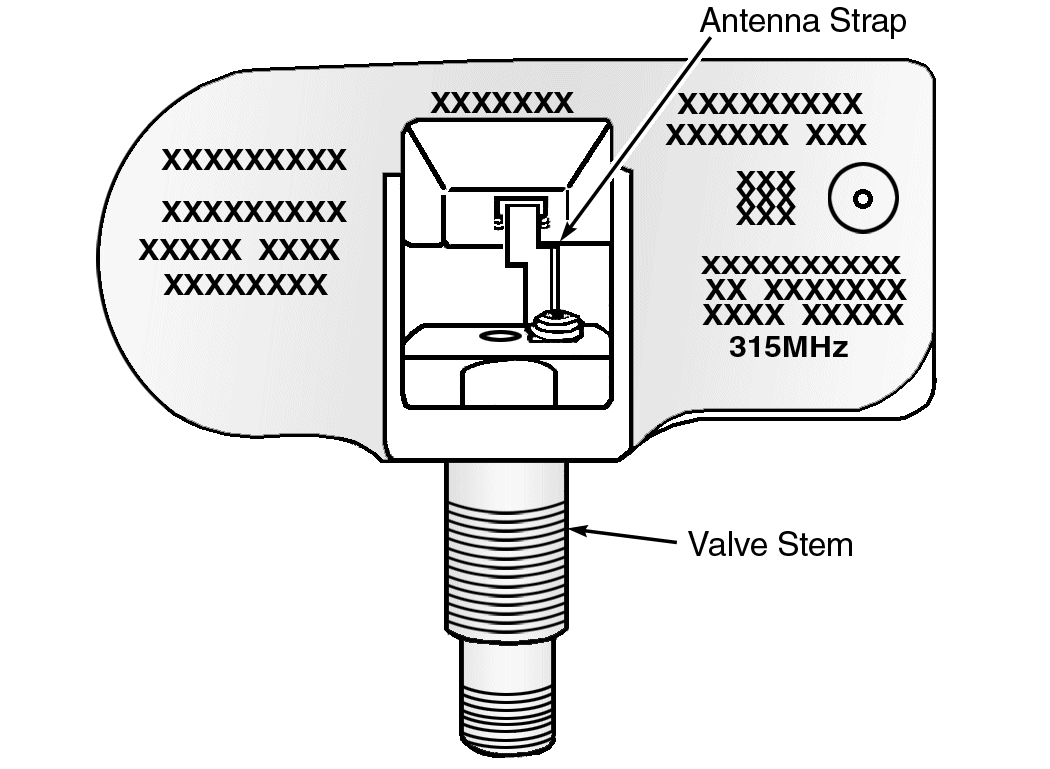

Fig 2: Identifying Tire Pressure Sensor Components (2 Of 2)
G00225420Courtesy of CHRYSLER CORP.

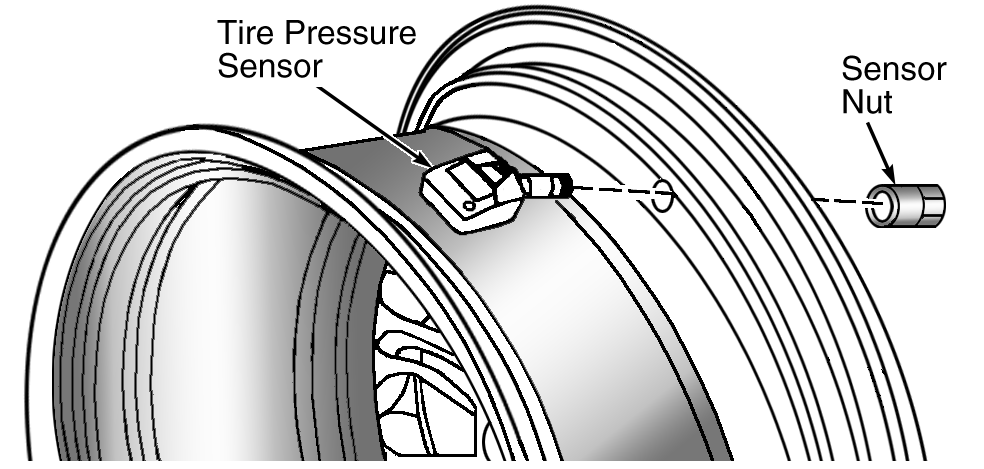

Fig 3: Removing & Installing Tire Pressure Sensor
G00225421Courtesy of CHRYSLER CORP.
