Schematics And Diagrams

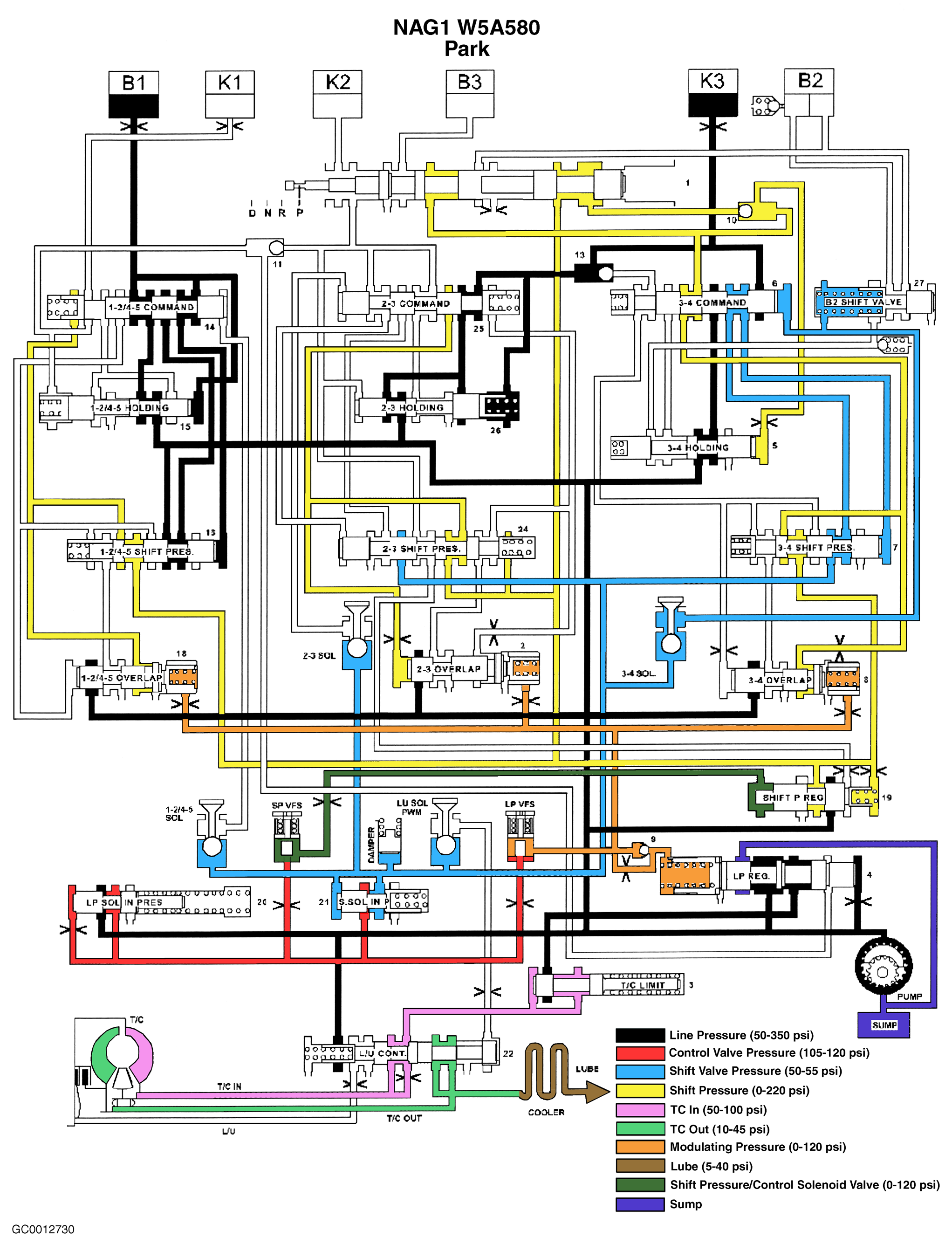

Fig 1: Hydraulic Flow In Park
GC0012730Courtesy of DAIMLERCHRYSLER CORP.

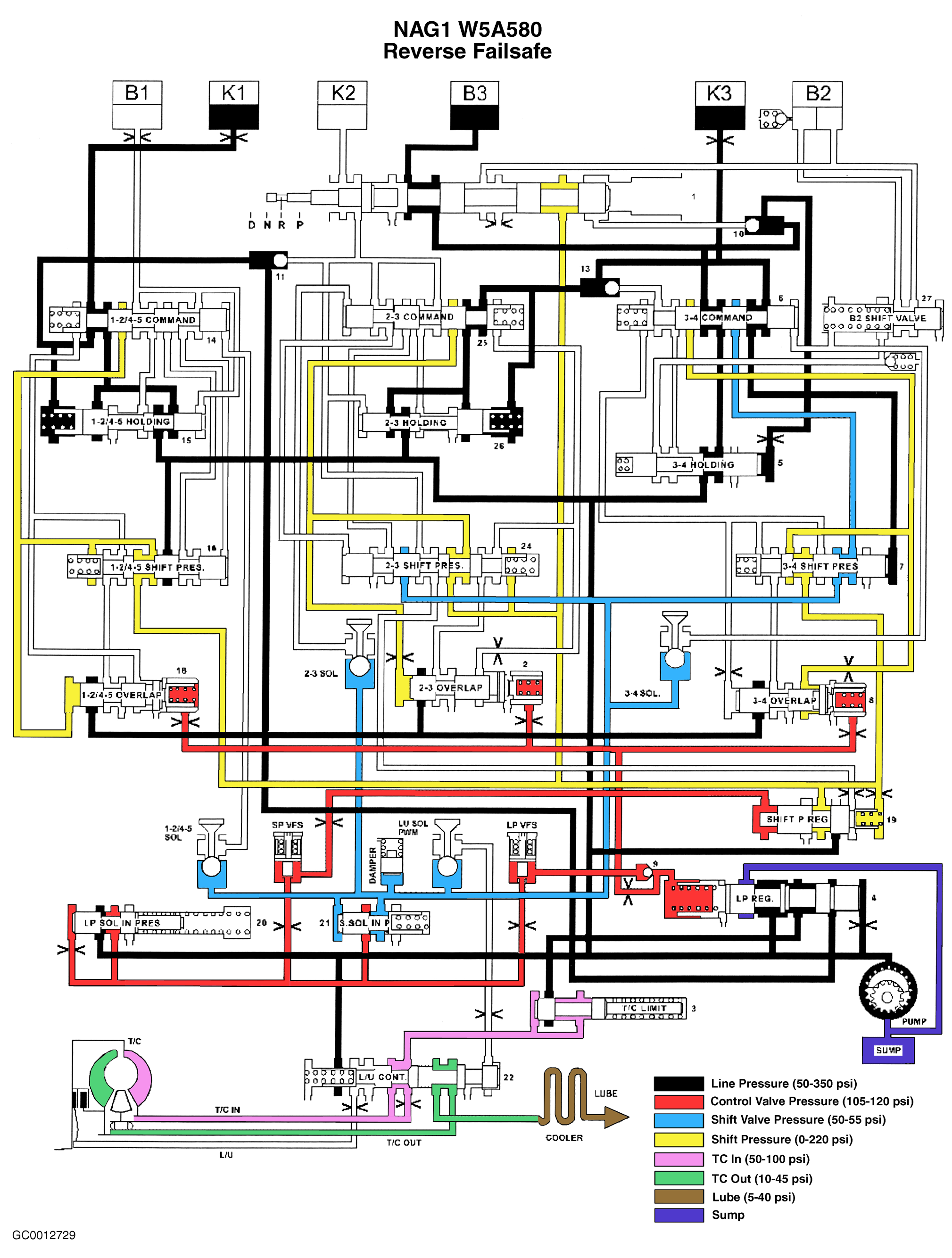

Fig 2: Hydraulic Flow In Reverse - Failsafe
GC0012729Courtesy of DAIMLERCHRYSLER CORP.

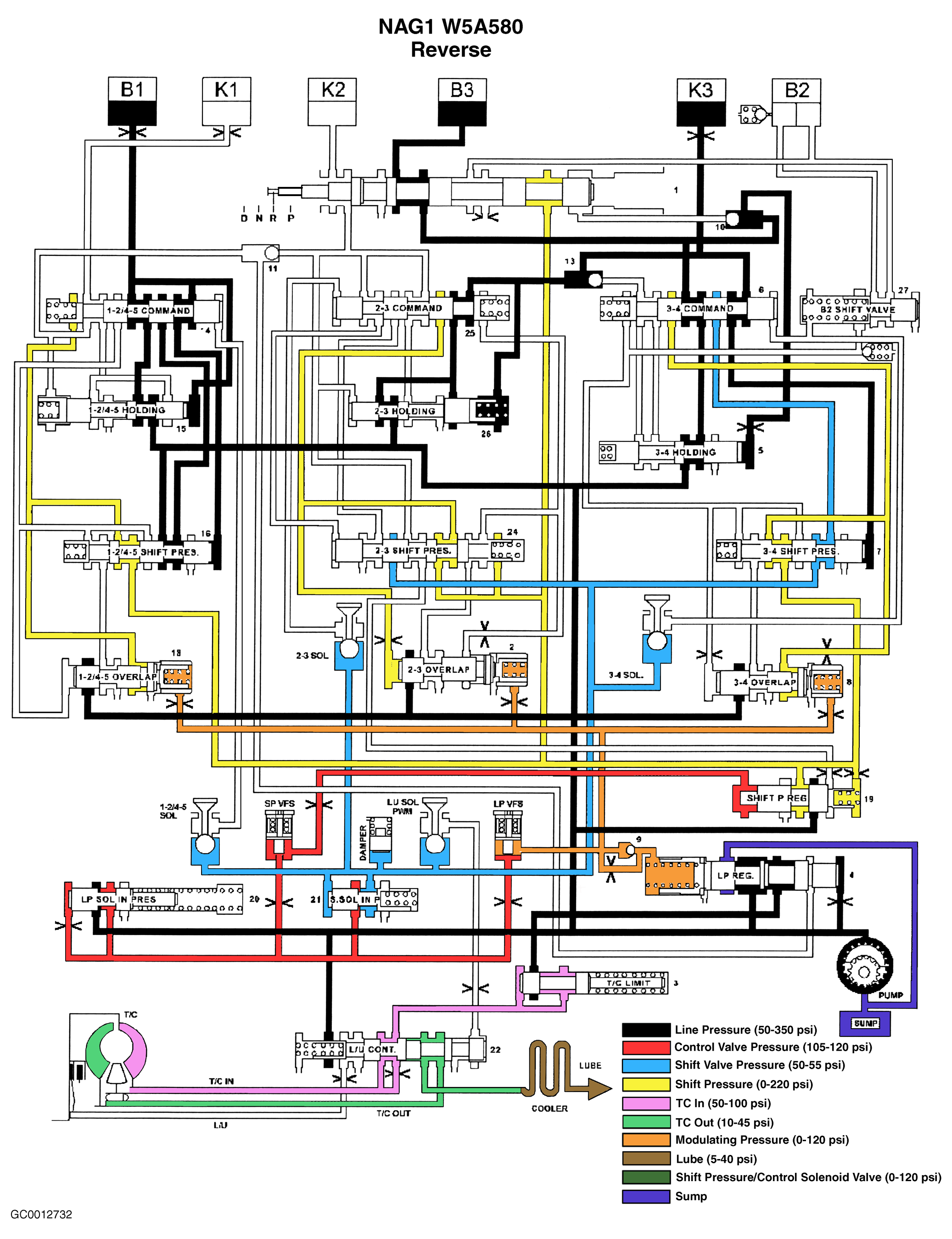

Fig 3: Hydraulic Flow In Reverse
GC0012732Courtesy of DAIMLERCHRYSLER CORP.

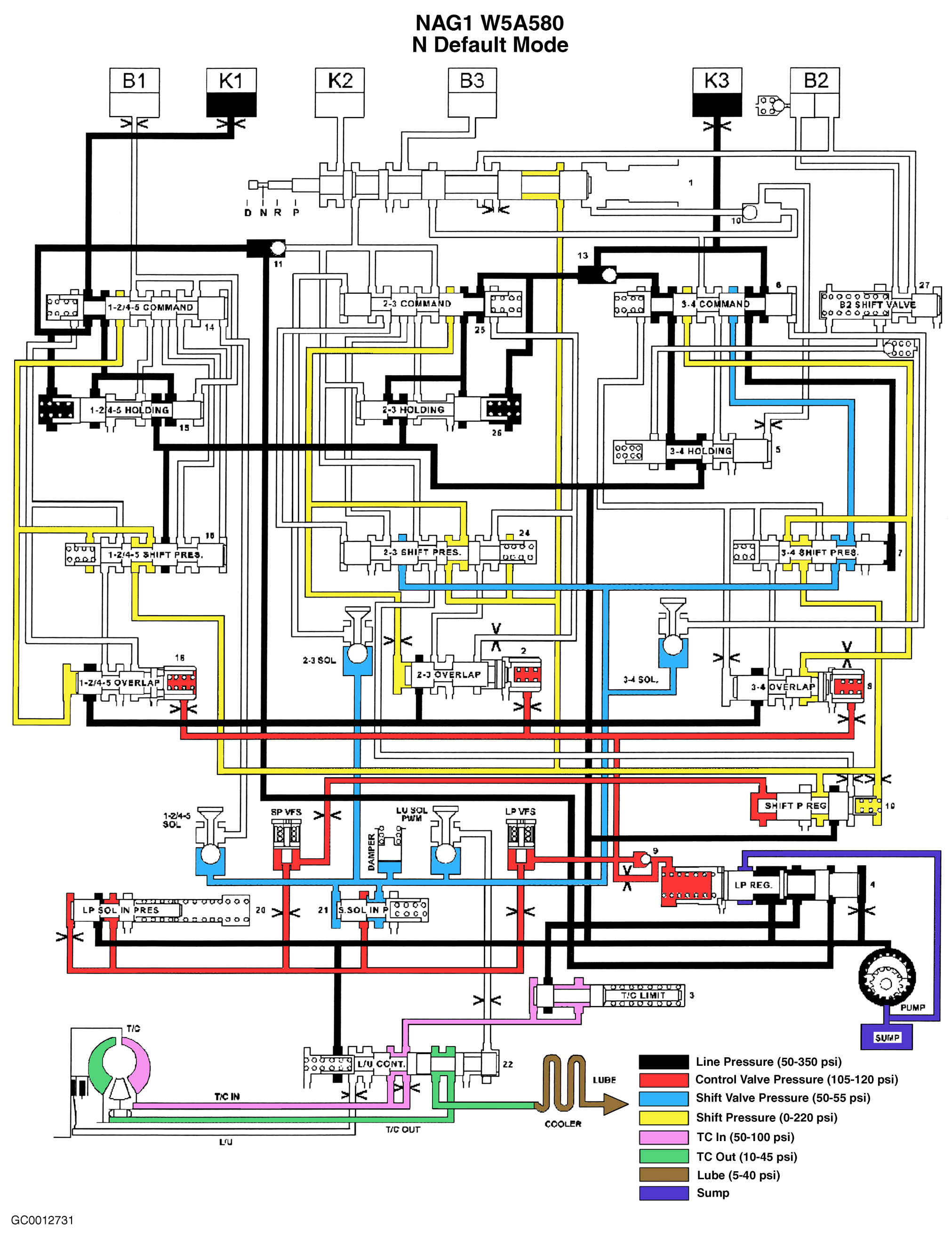

Fig 4: Hydraulic Flow In Neutral - Default
GC0012731Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Hydraulic Flow In Neutral
GC0012733Courtesy of DAIMLERCHRYSLER CORP.

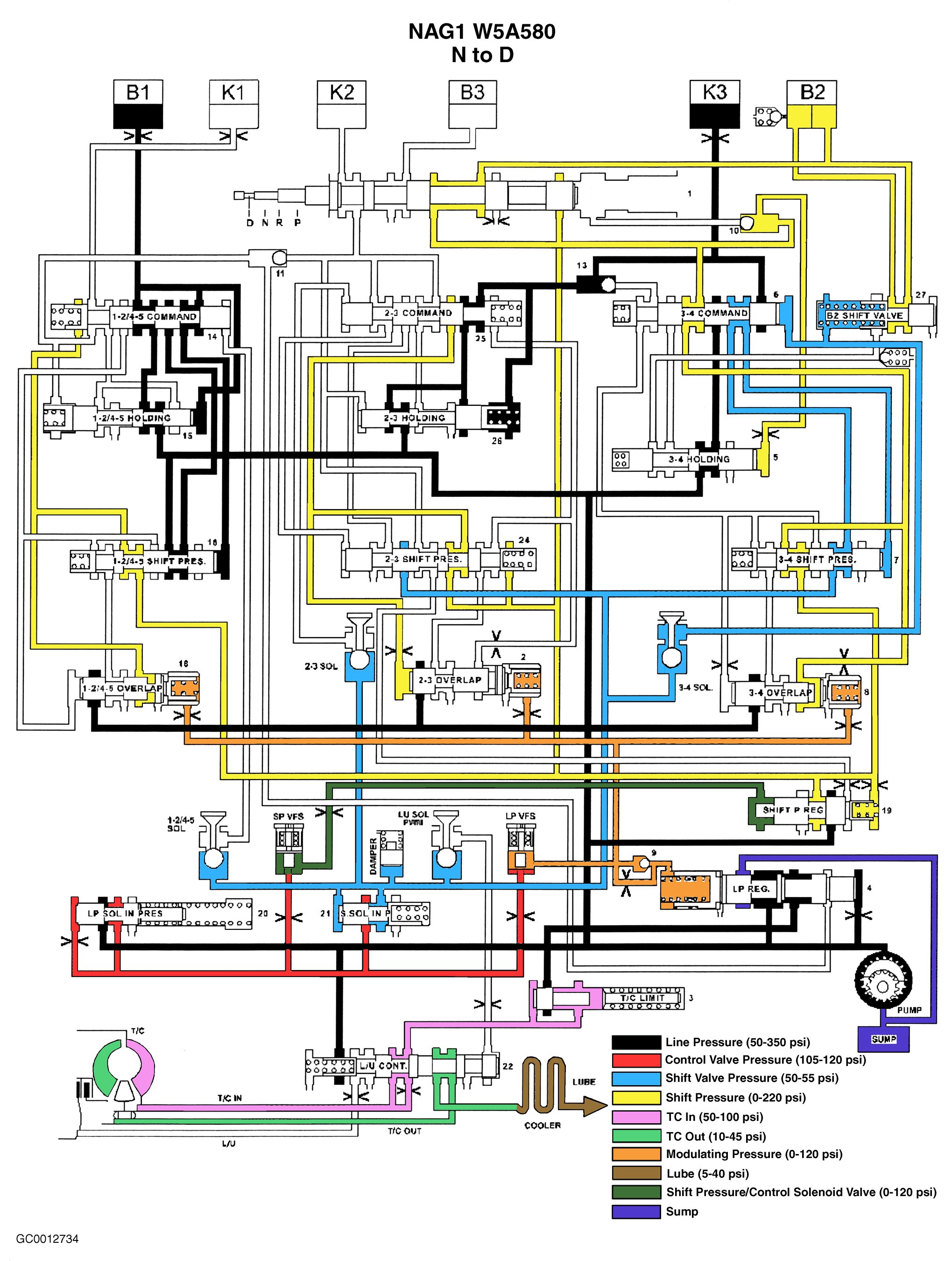

Fig 6: Hydraulic Flow In Neutral to Drive Transition
GC0012734Courtesy of DAIMLERCHRYSLER CORP.

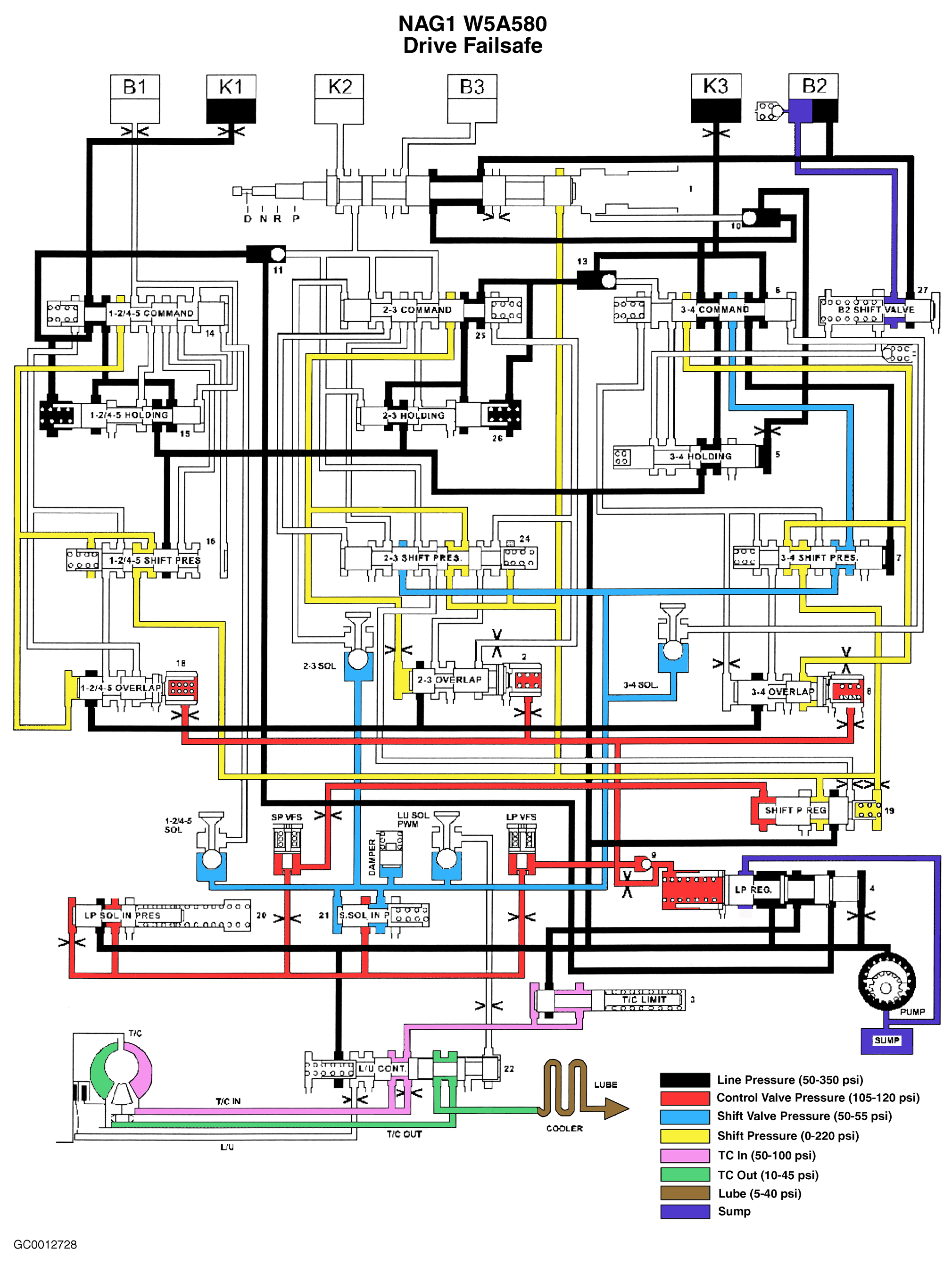

Fig 7: Hydraulic Flow In Drive - Failsafe
GC0012728Courtesy of DAIMLERCHRYSLER CORP.

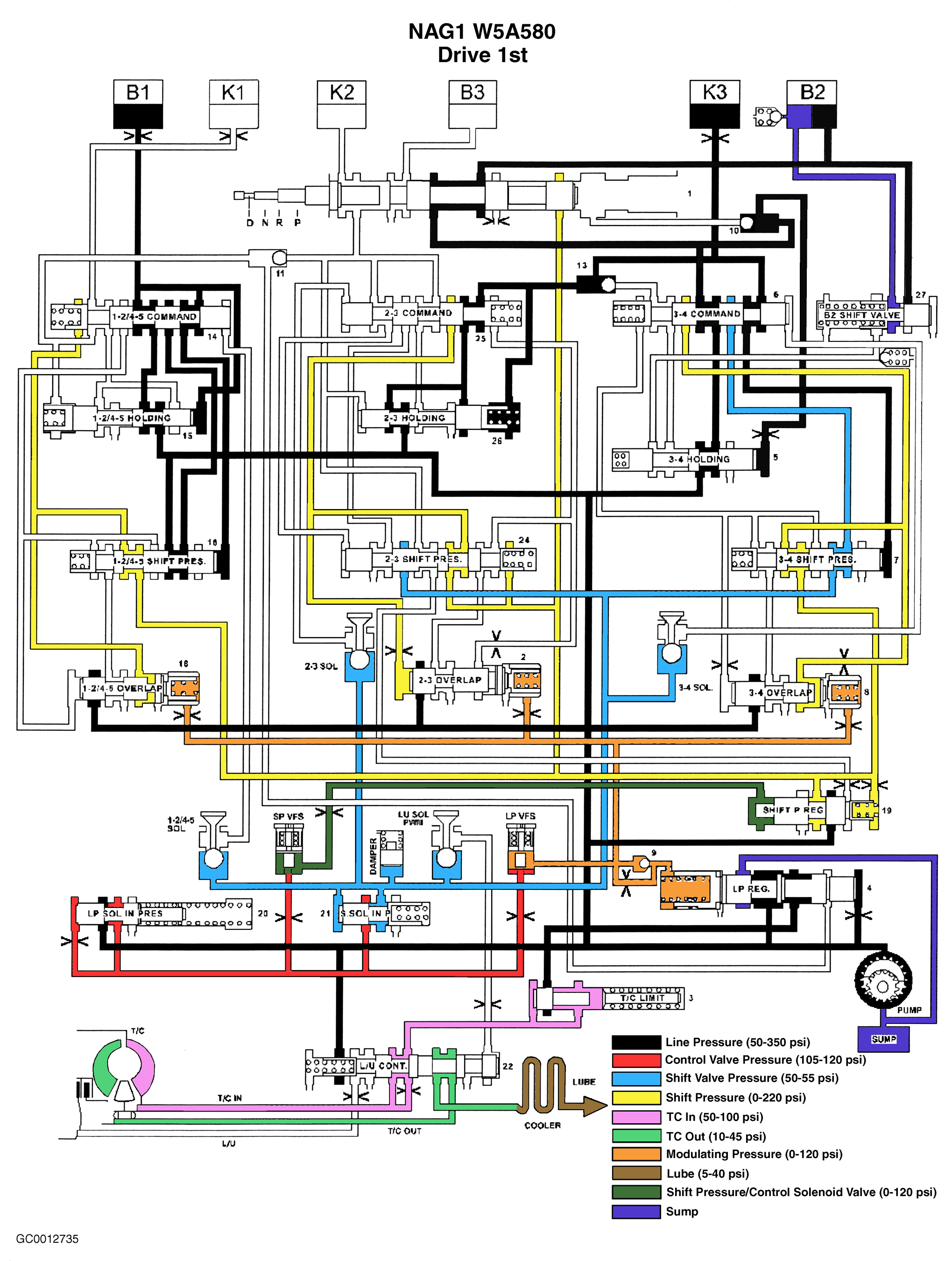

Fig 8: Hydraulic Flow In Drive - First Gear
GC0012735Courtesy of DAIMLERCHRYSLER CORP.

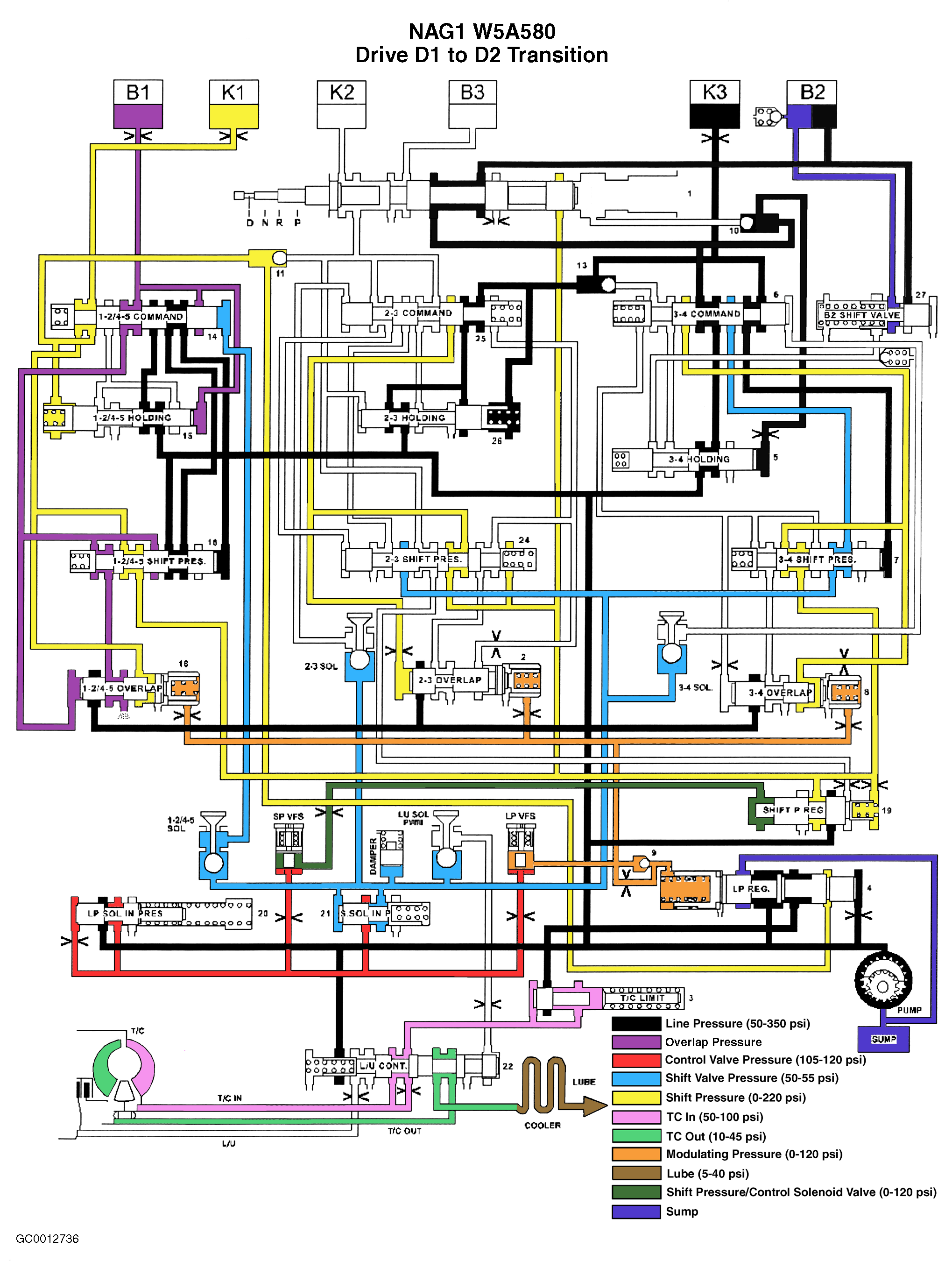

Fig 9: Hydraulic Flow In Drive - First to Second Gear Transition
GC0012736Courtesy of DAIMLERCHRYSLER CORP.

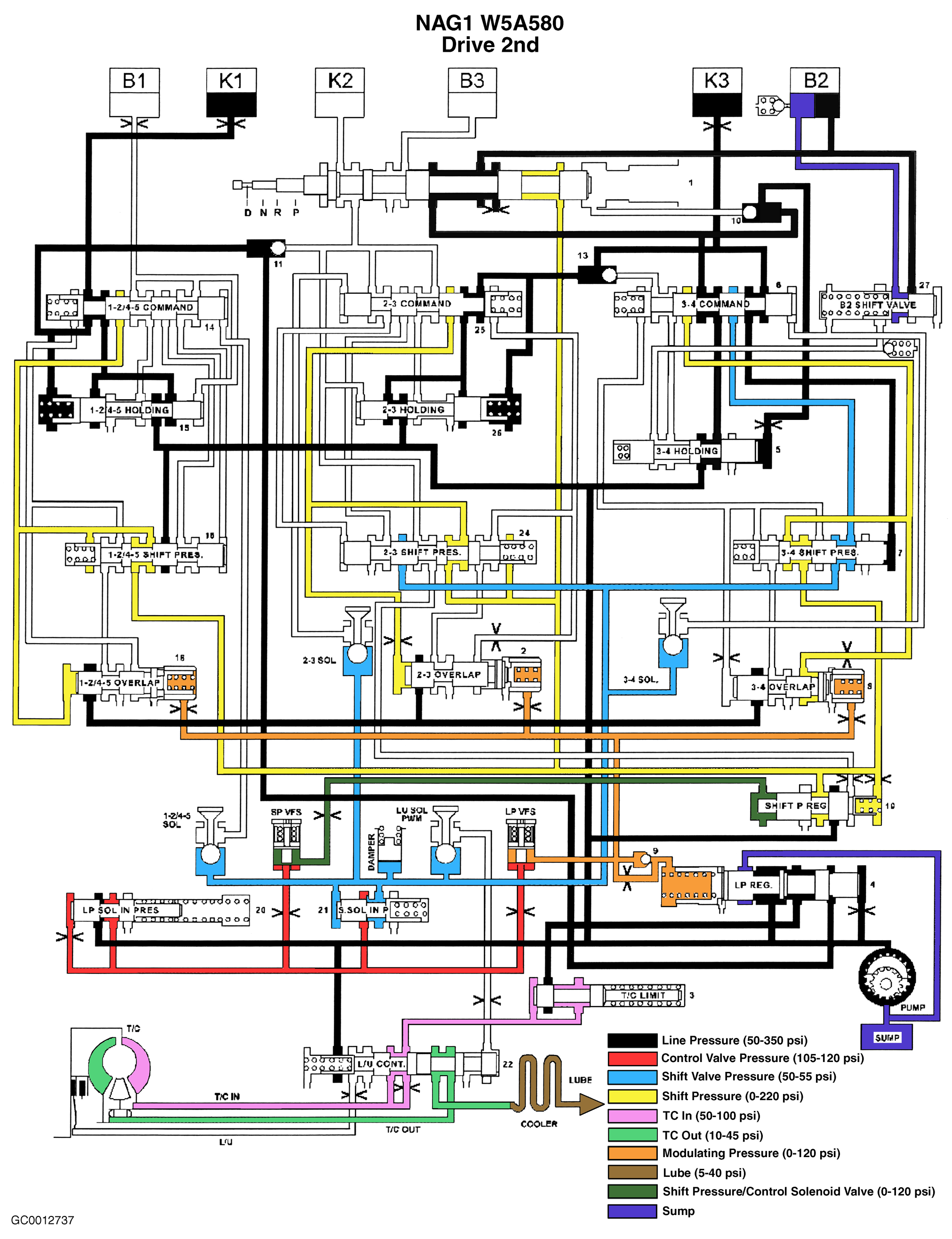

Fig 10: Hydraulic Flow In Drive - Second Gear
GC0012737Courtesy of DAIMLERCHRYSLER CORP.

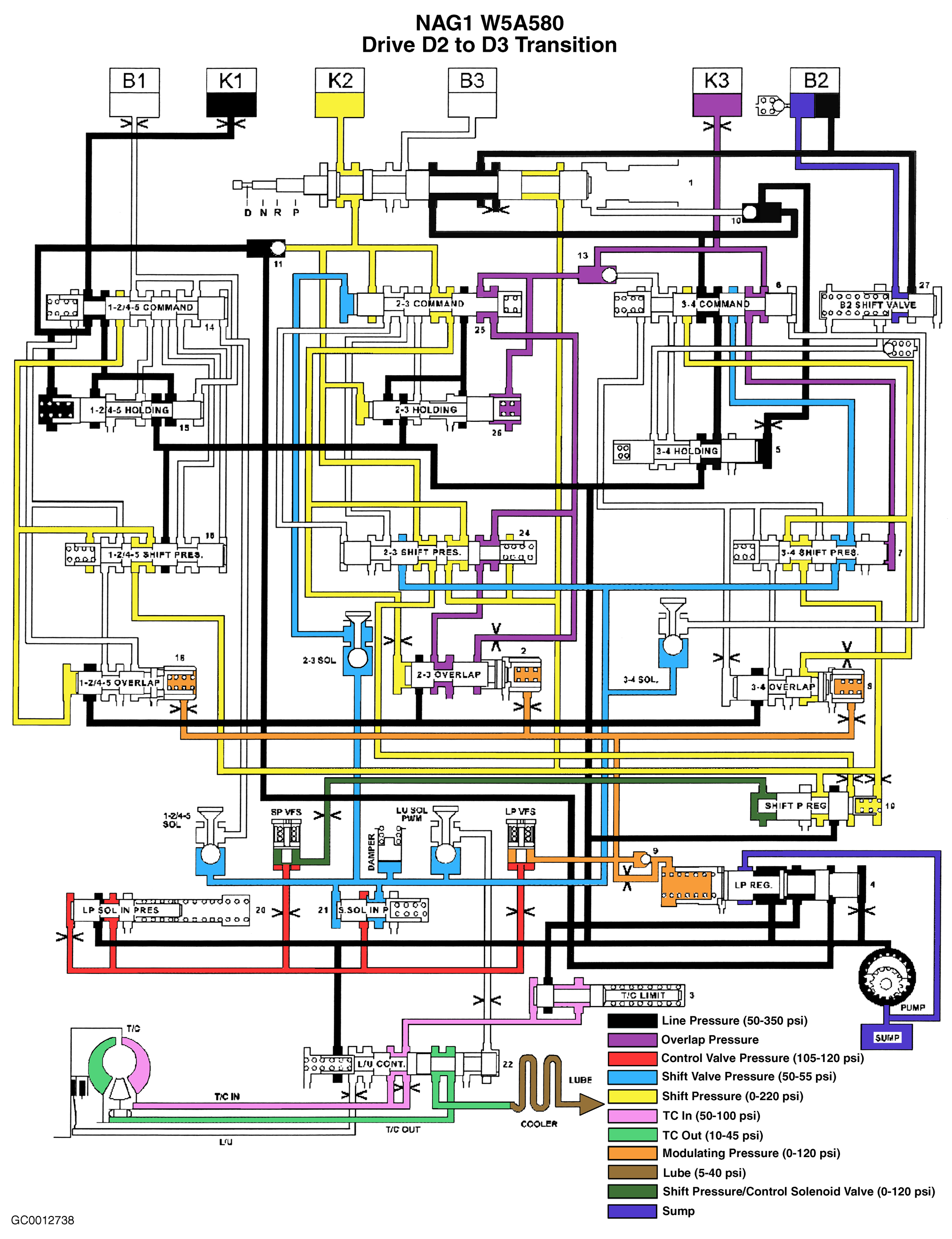

Fig 11: Hydraulic Flow In Drive - Second to Third Gear Transition
GC0012738Courtesy of DAIMLERCHRYSLER CORP.

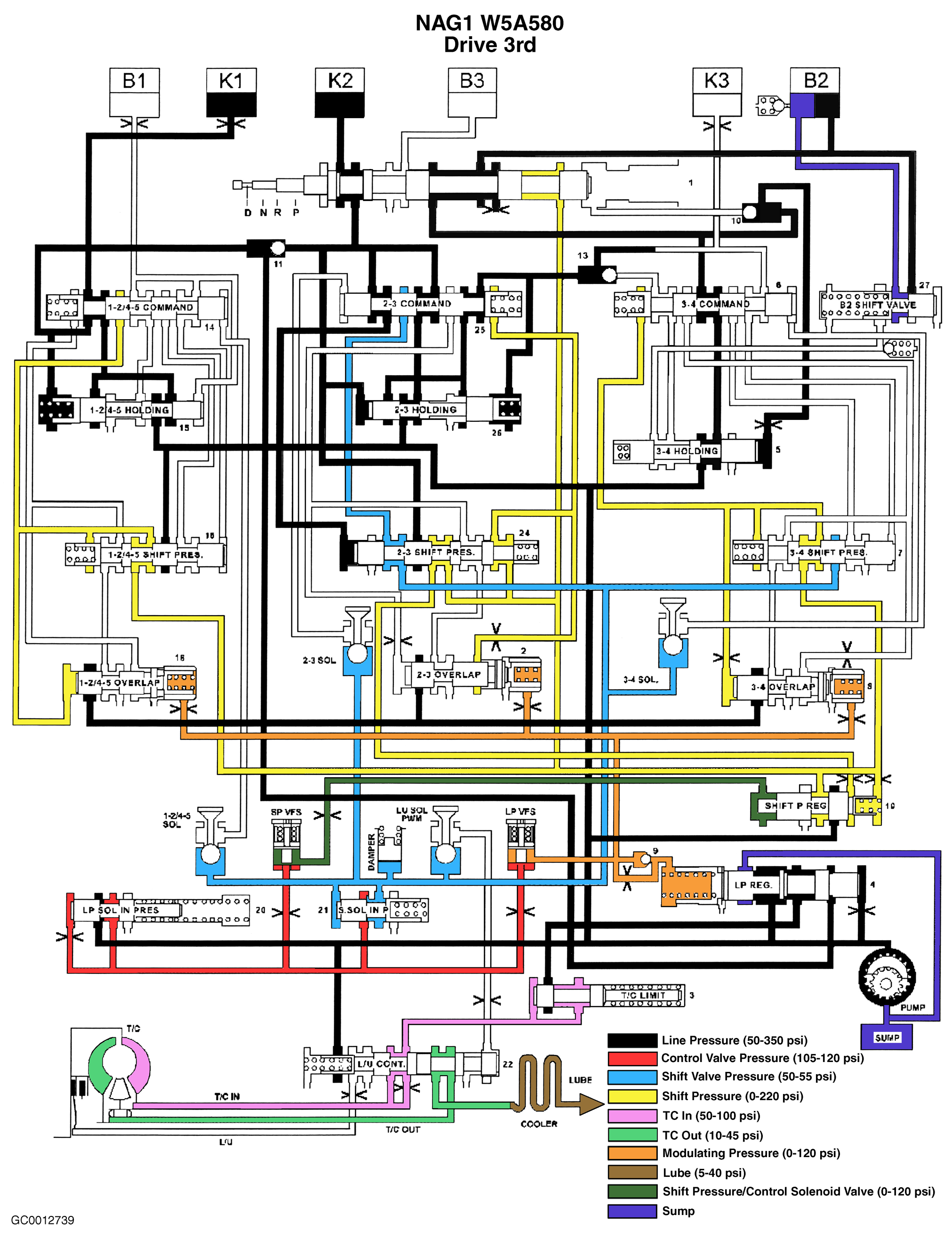

Fig 12: Hydraulic Flow In Drive - Third Gear
GC0012739Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Hydraulic Flow In Drive - Third to Fourth Gear Transition
GC0012740Courtesy of DAIMLERCHRYSLER CORP.

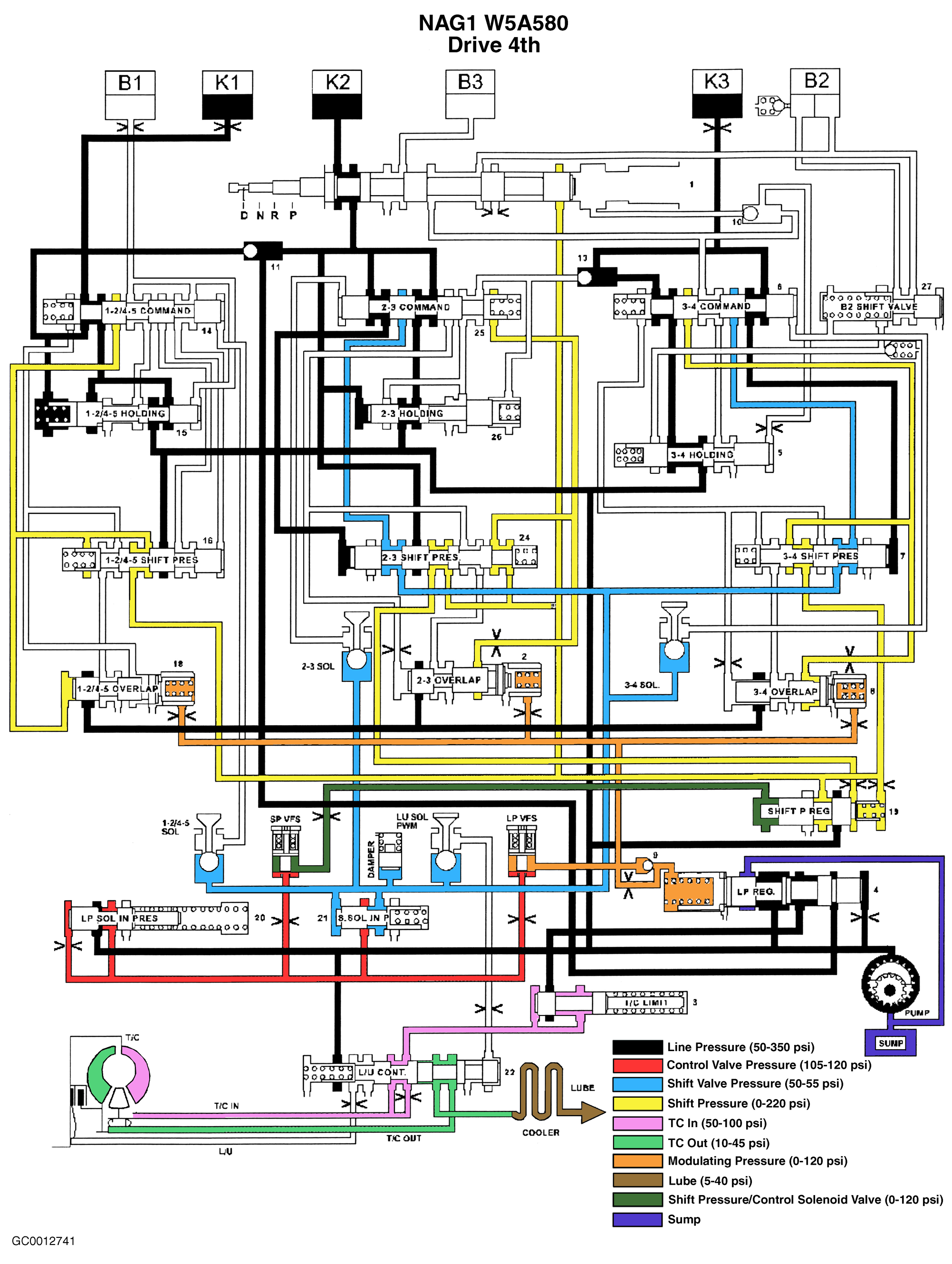

Fig 14: Hydraulic Flow In Drive - Fourth Gear
GC0012741Courtesy of DAIMLERCHRYSLER CORP.

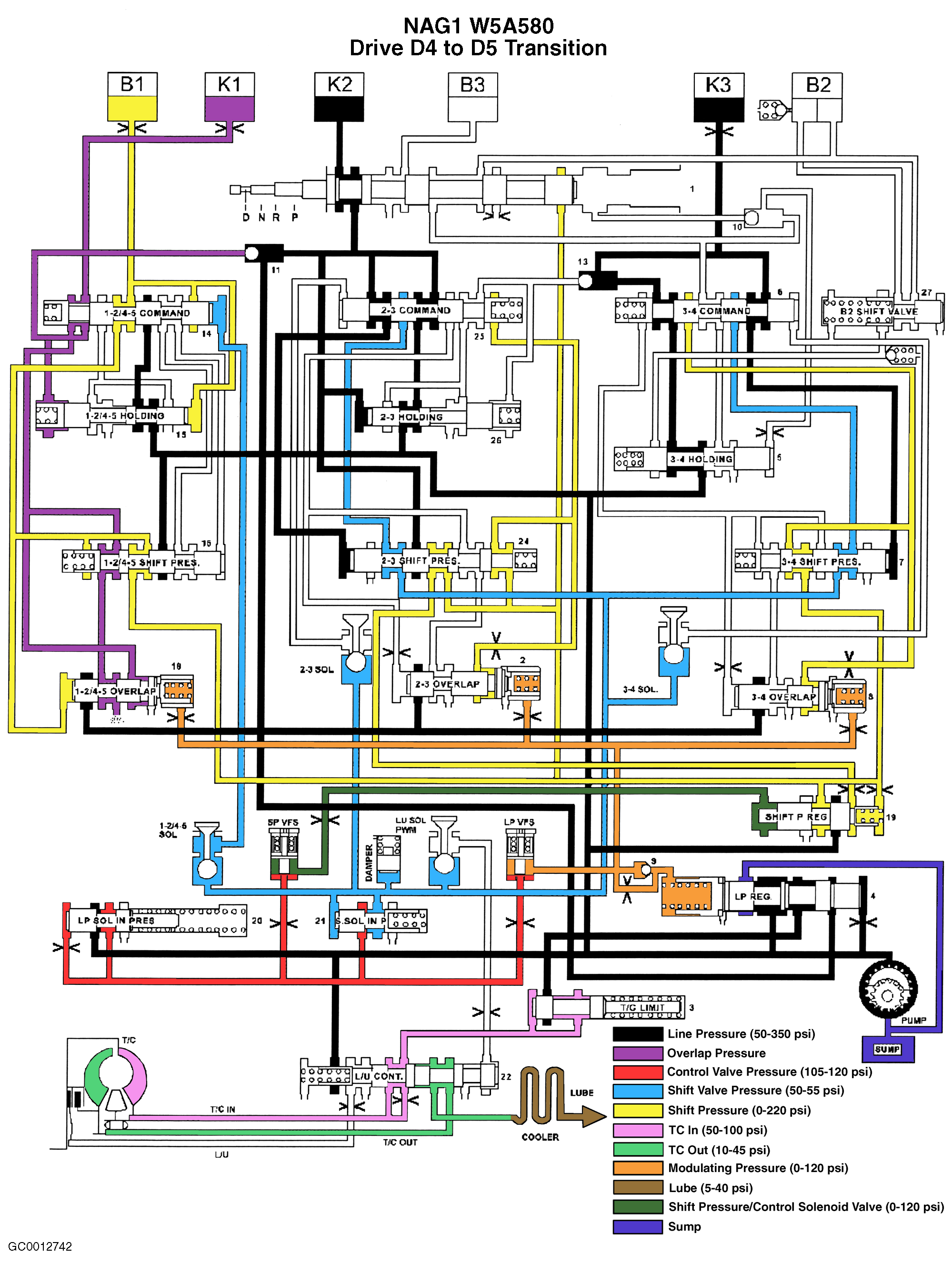

Fig 15: Hydraulic Flow In Drive - Fourth to Fifth Gear Transition
GC0012742Courtesy of DAIMLERCHRYSLER CORP.

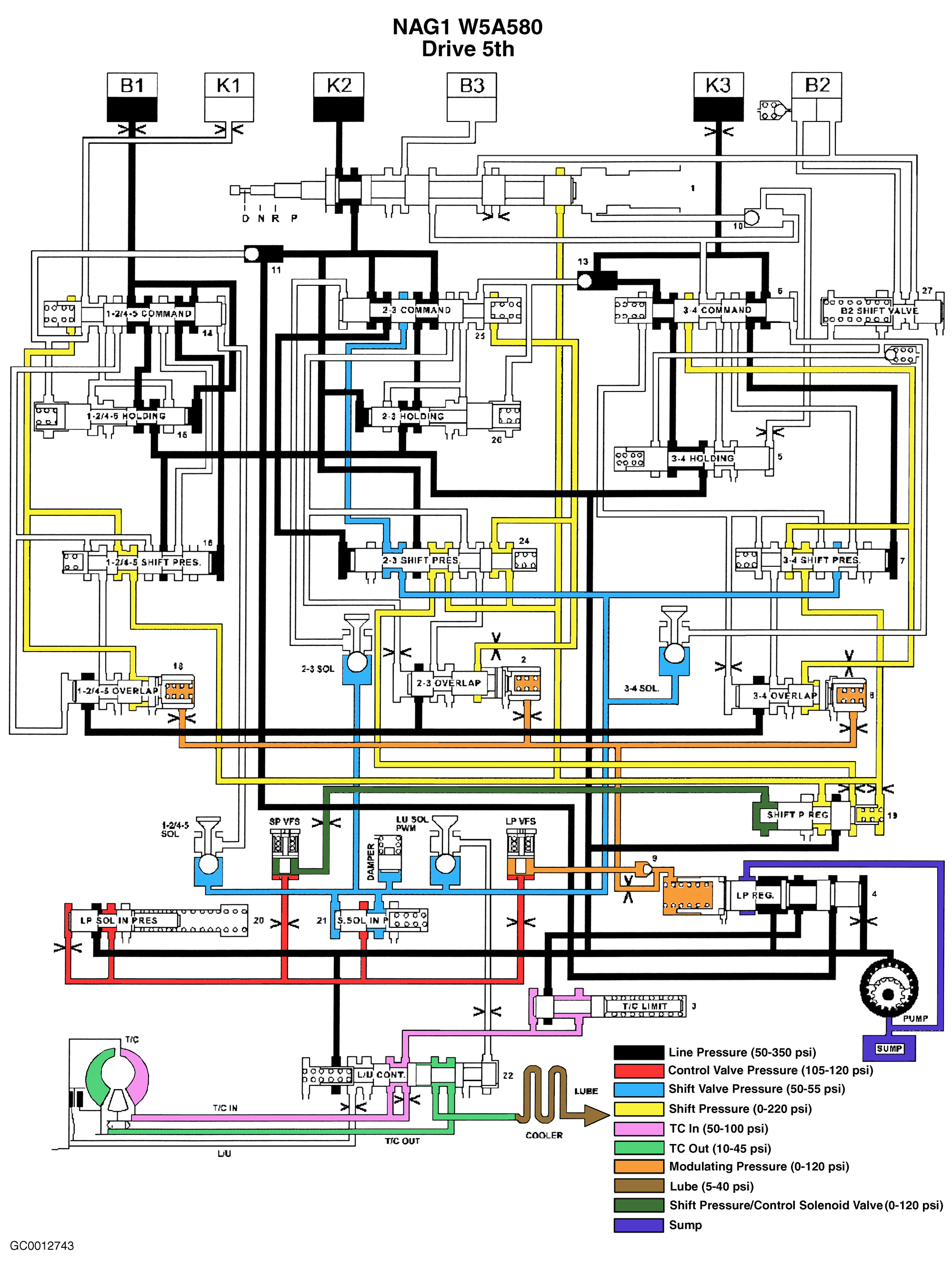

Fig 16: Hydraulic Flow In Drive - Fifth Gear
GC0012743Courtesy of DAIMLERCHRYSLER CORP.

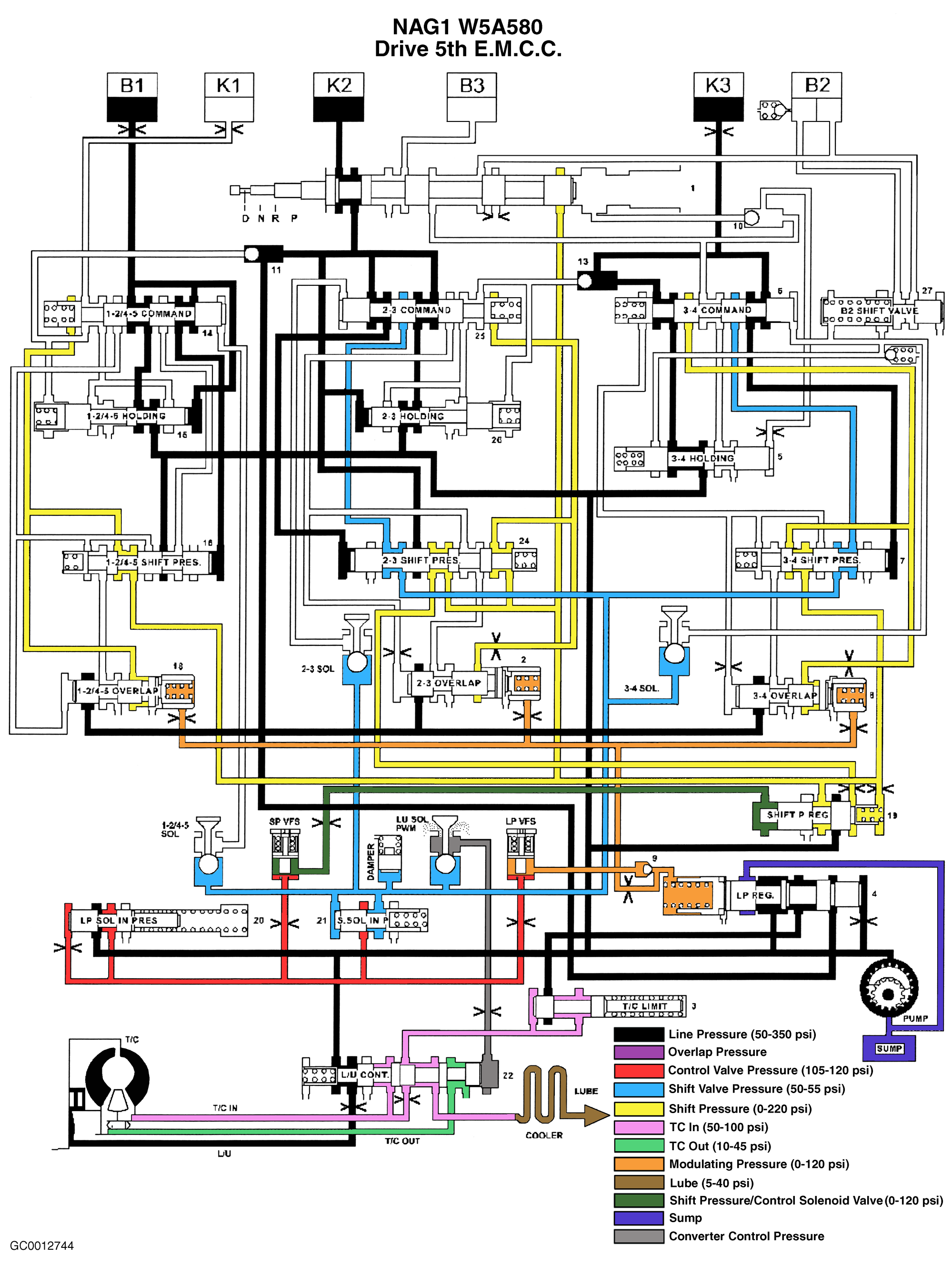

Fig 17: Hydraulic Flow In Drive - Fifth Gear - EMCC
GC0012744Courtesy of DAIMLERCHRYSLER CORP.

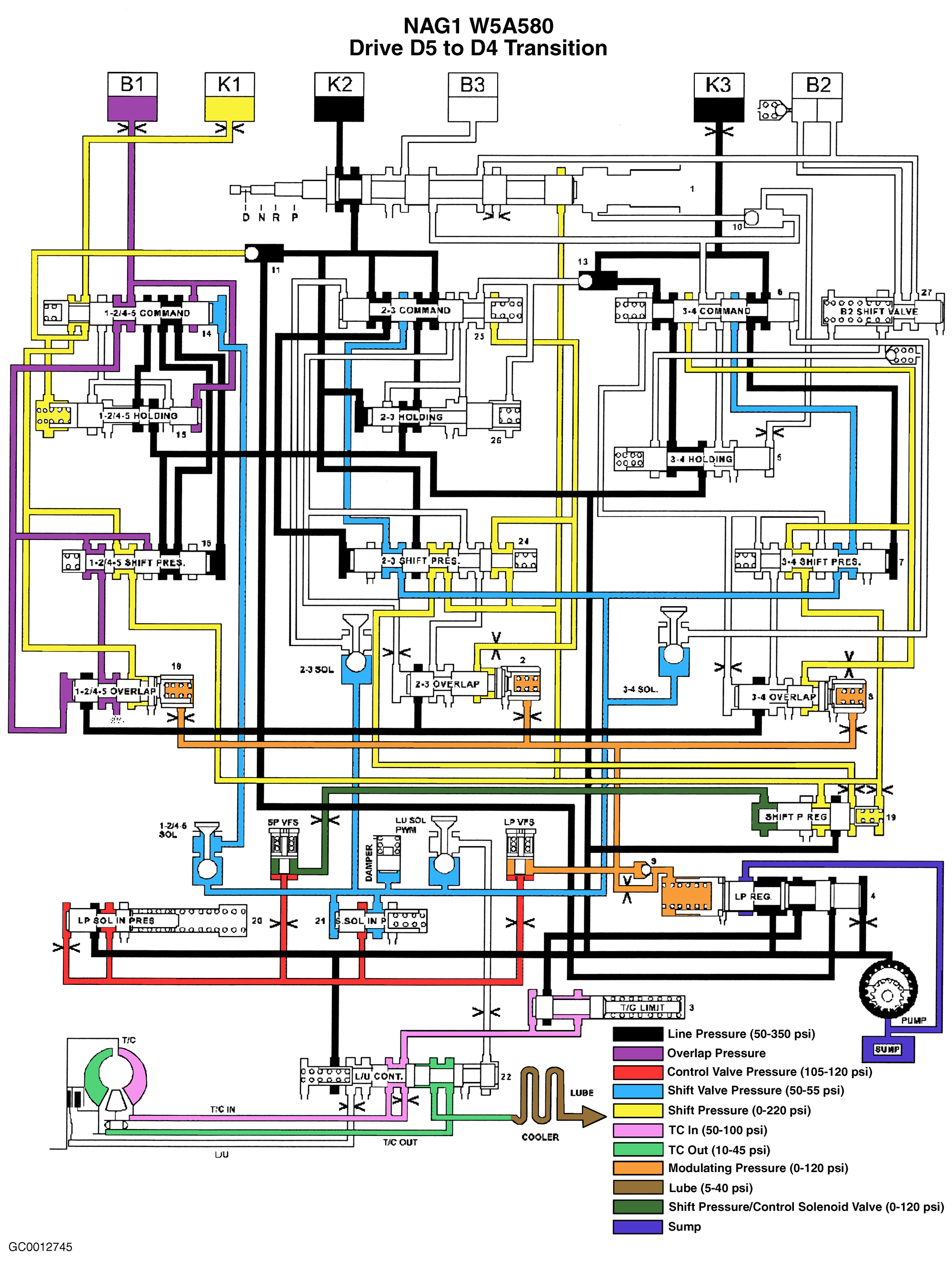

Fig 18: Hydraulic Flow In Drive - Fifth to Fourth Gear Transition
GC0012745Courtesy of DAIMLERCHRYSLER CORP.

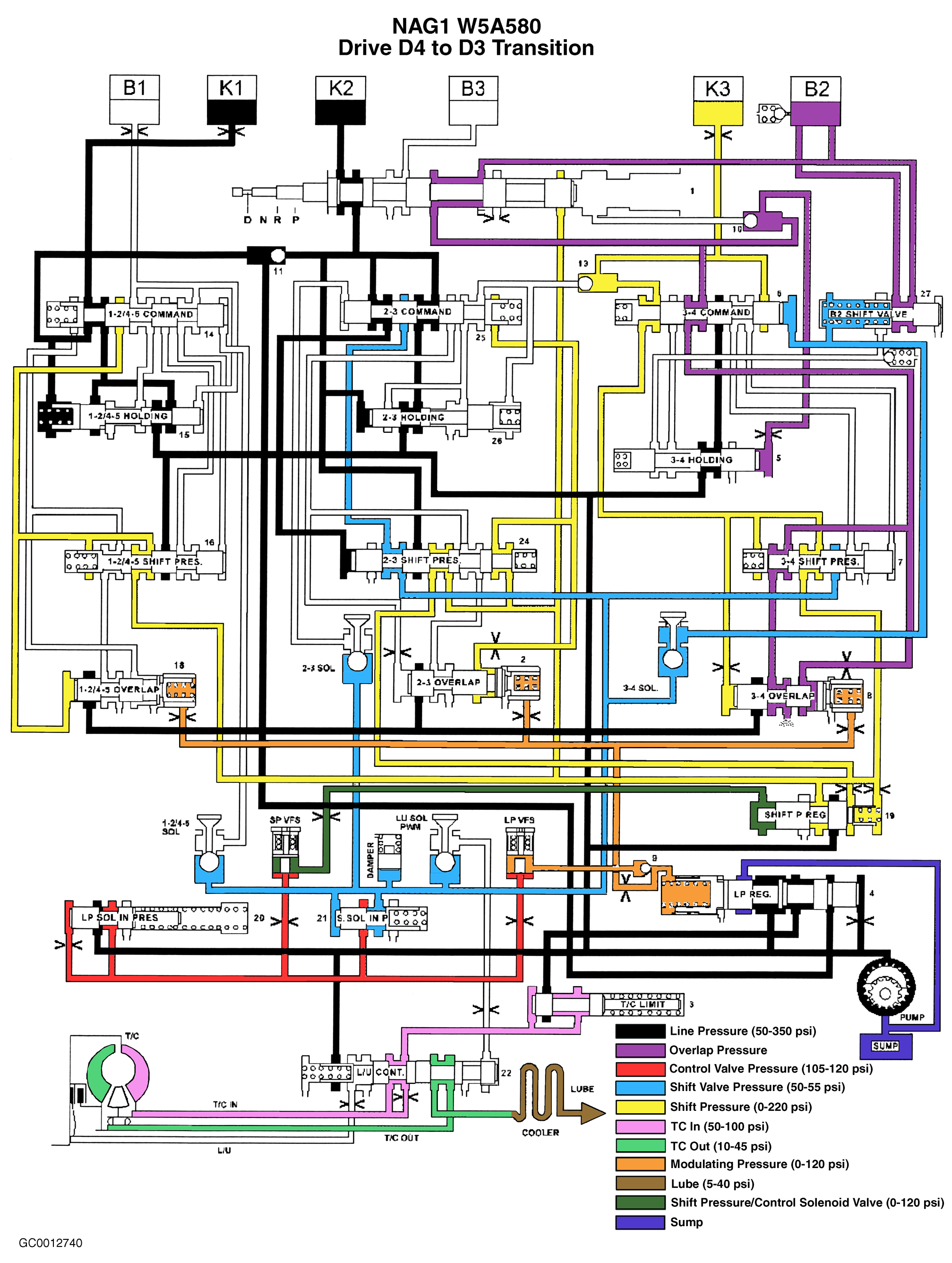

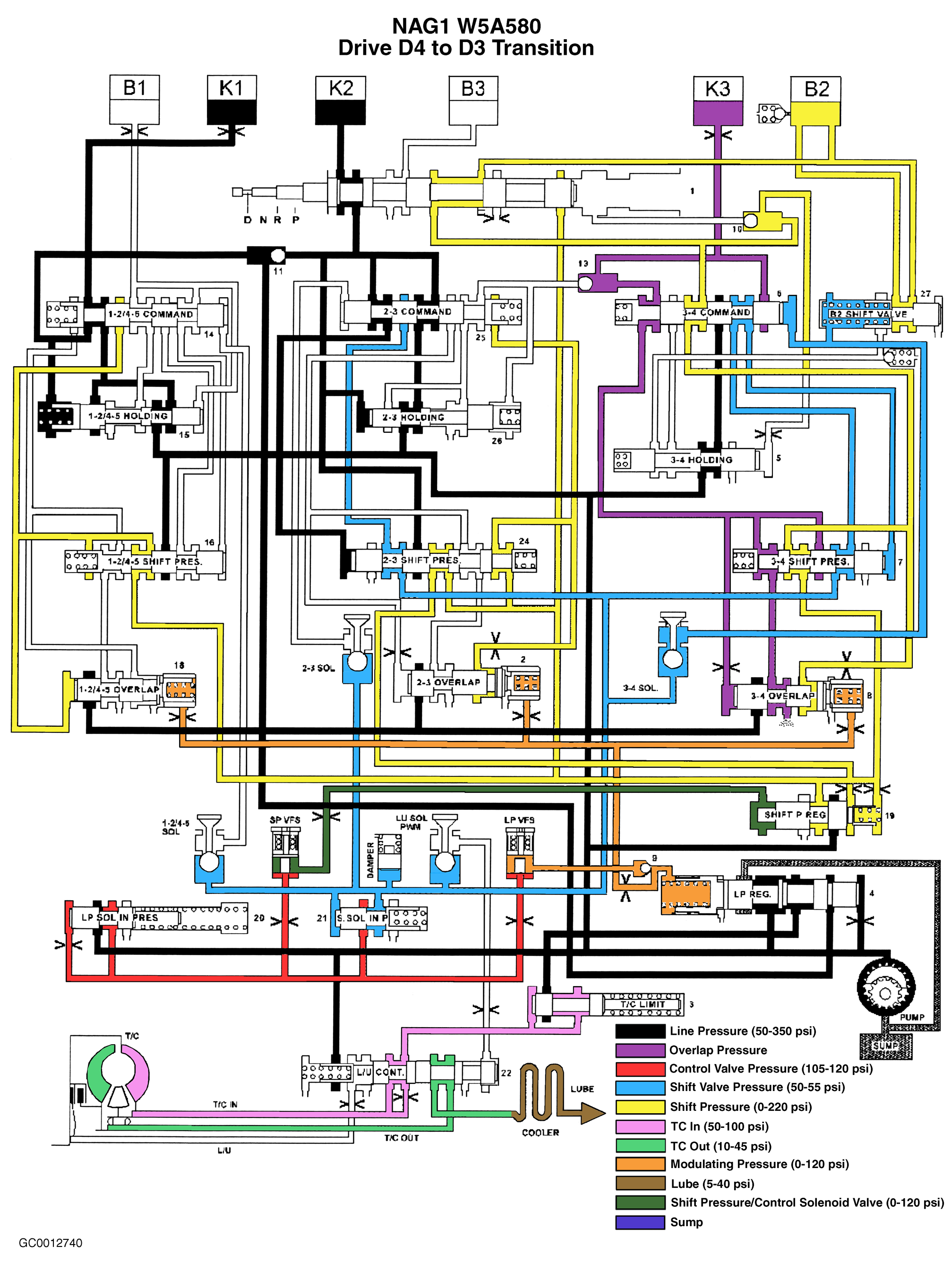

Fig 19: Hydraulic Flow In Drive - Fourth to Third Gear Transition
GC0012746Courtesy of DAIMLERCHRYSLER CORP.

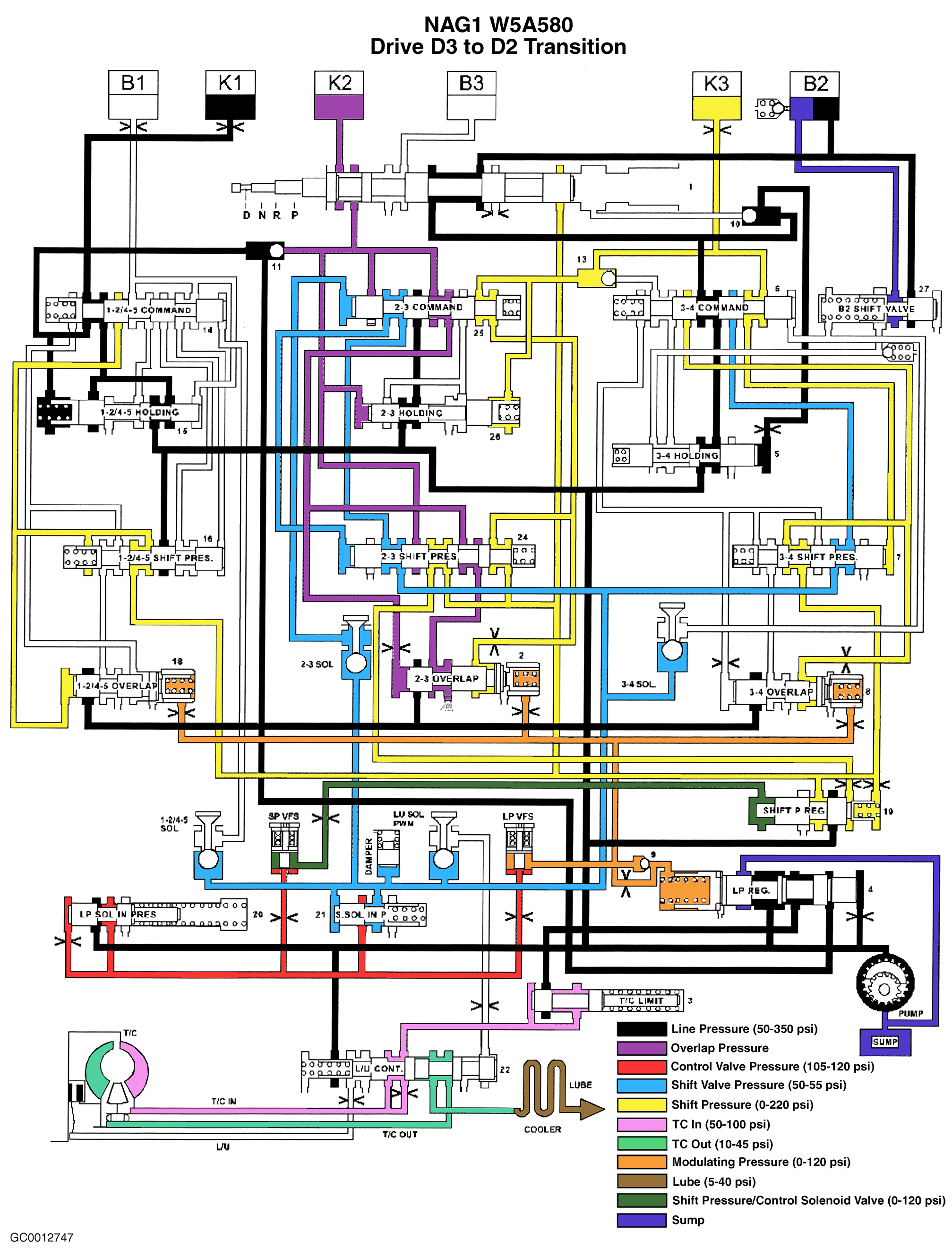

Fig 20: Hydraulic Flow In Drive - Third to Second Gear Transition
GC0012747Courtesy of DAIMLERCHRYSLER CORP.

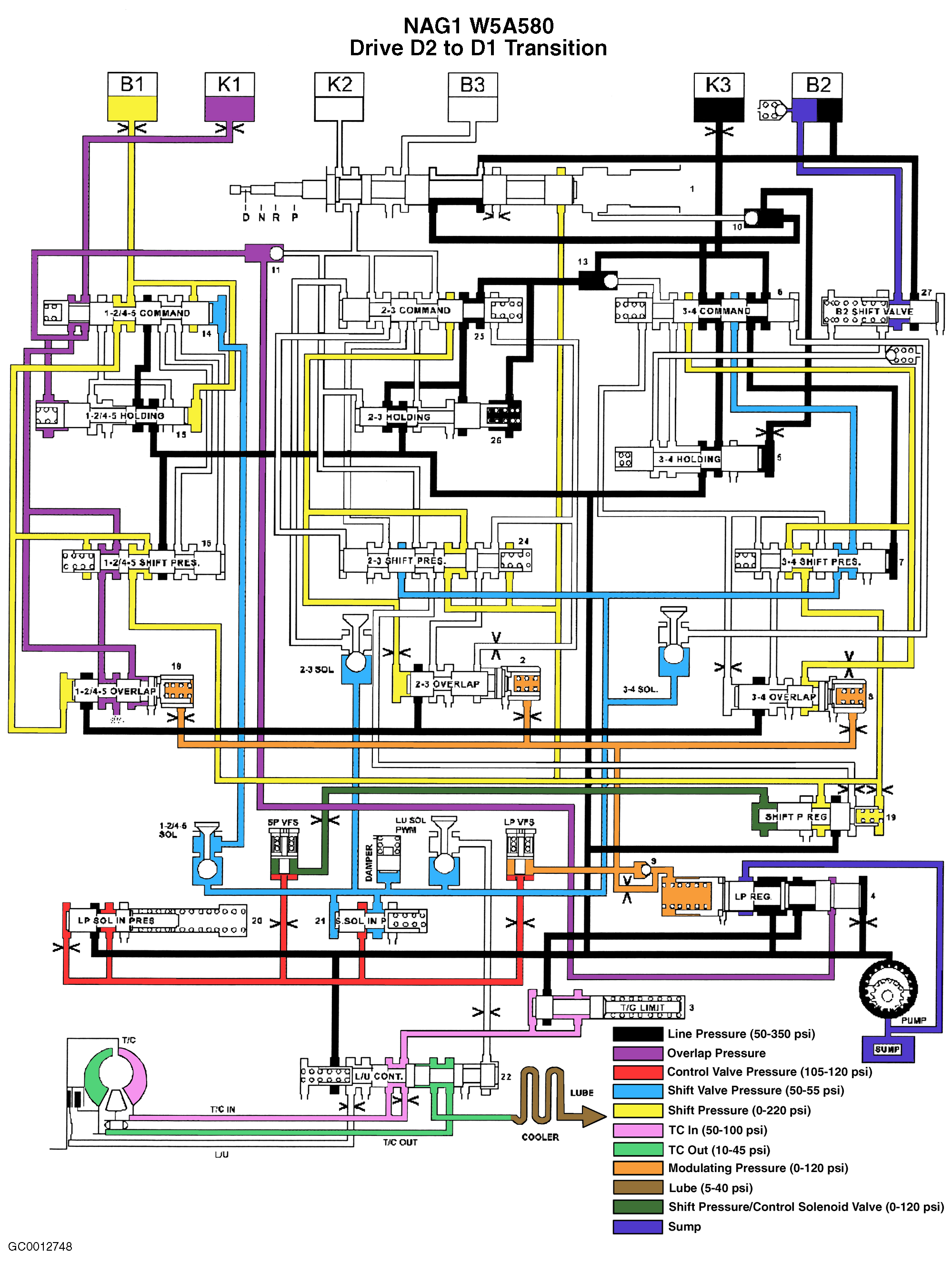

Fig 21: Hydraulic Flow In Drive - Second to First Gear Transition
GC0012748Courtesy of DAIMLERCHRYSLER CORP.
