B1802-Driver Door Lock/Unlock Switch Circuit High - Driver Door Module: Notes

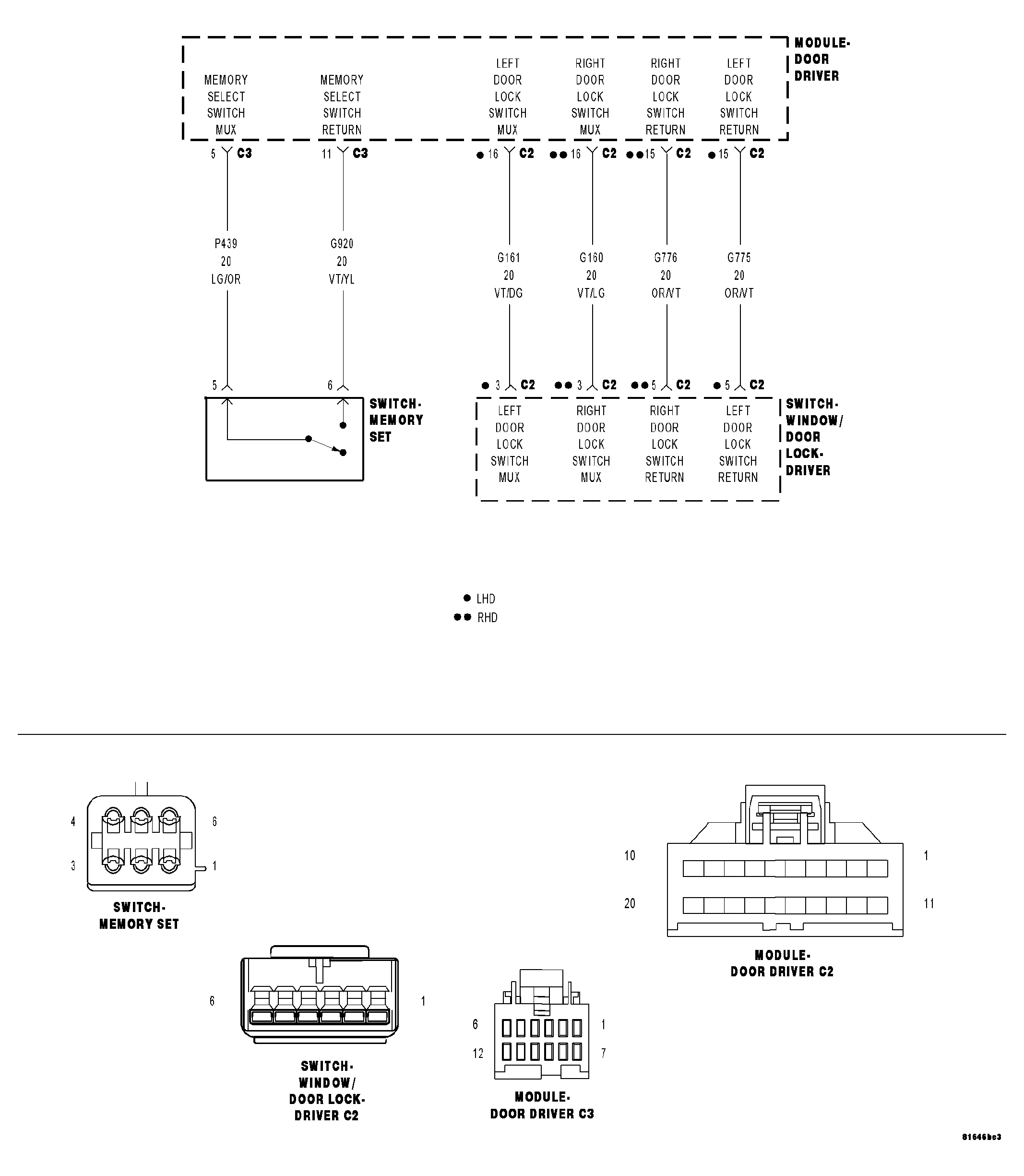

Fig 1: Checking Driver Door Lock/Unlock Switch Circuit Stuck Lock - Driver Door Module
GC0045542Courtesy of DAIMLERCHRYSLER CORP.
