Diagnostic Test

  1. 1) TEST FOR INTERMITTENT CONDITION

    Turn the ignition on.

    NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

    With the scan tool, select ECU view.

    NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

    Does the scan tool display a red X next to the module?

    Yes

    1. Go To step  2).

    No

    1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
  2. 2) (A114) FUSED B(+) CIRCUIT OPEN OR SHORTED

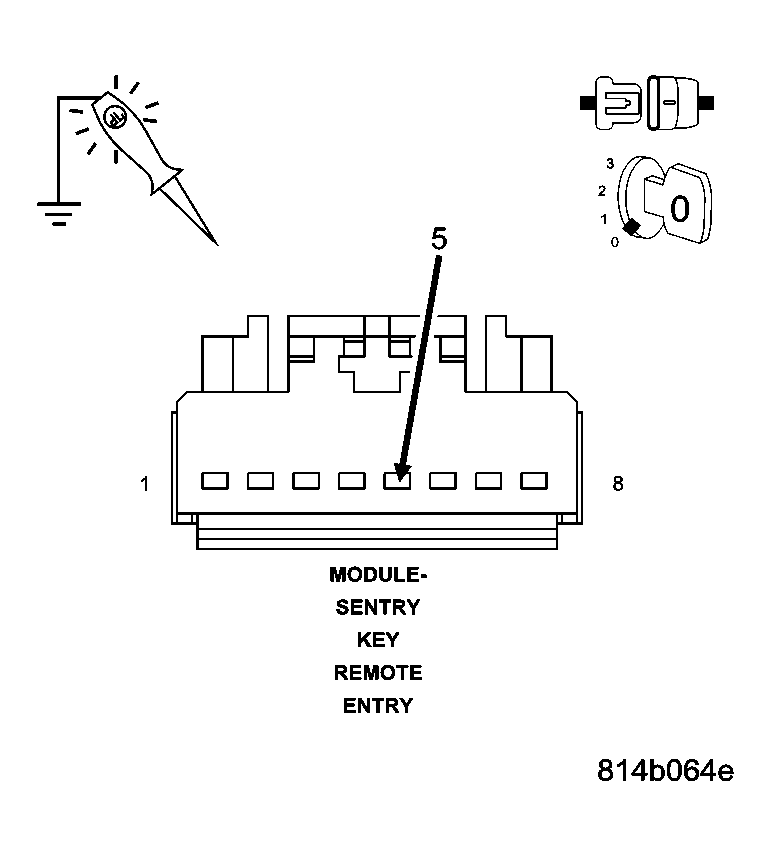

    Fig 1: Checking Fused B(+) Circuit
    GC0027602Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the Sentry Key Remote Entry Module harness connector.

    Using a 12-volt test light connected to ground, check the (A114) Fused B(+) circuit.

    Does the test light illuminate brightly?

    Yes

    1. Go To step  3).

    No

    1. Repair the (A114) Fused B(+) circuit for an open or short.
    2. Perform SKREEM VERIFICATION TEST .
  3. 3) (Z18) GROUND CIRCUIT OPEN

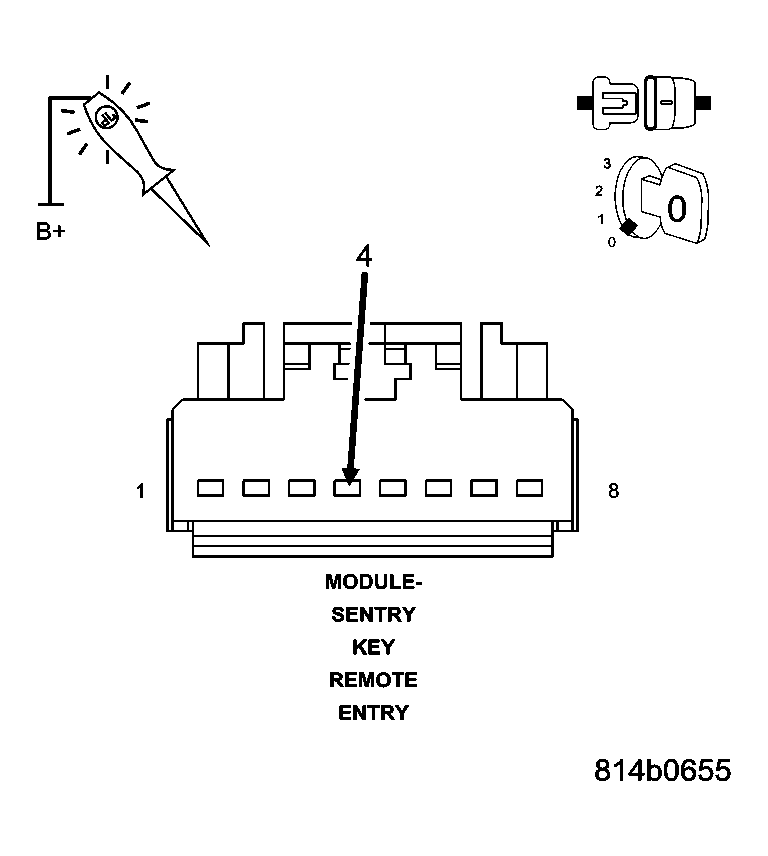

    Fig 2: Checking Ground Circuit
    GC0027603Courtesy of DAIMLERCHRYSLER CORP.

    Using a 12-volt test light connected to 12-volts, check the (Z18) ground circuit.

    Does the test light illuminate brightly?

    Yes

    1. Go To step  4).

    No

    1. Repair the (Z18) ground circuit for an open.
    2. Perform SKREEM VERIFICATION TEST .
  4. 4) (F941) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

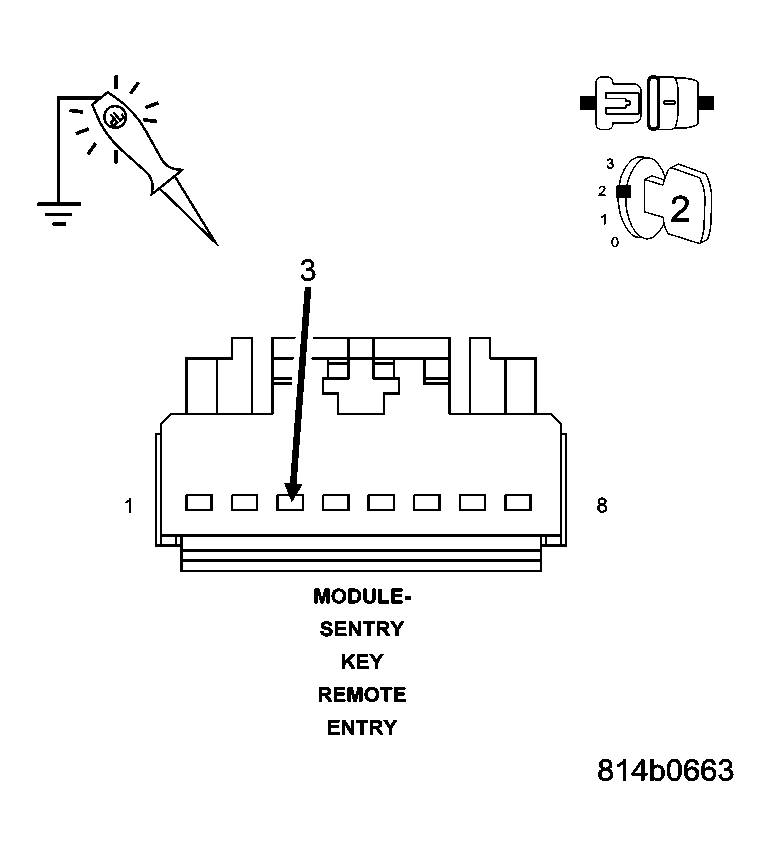

    Fig 3: Checking Fused Ignition Switch Output Circuit
    GC0027604Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition on.

    Using a 12-volt test light connected to ground, check the (F941) Fused Ignition Switch Output circuit.

    Does the test light illuminate brightly?

    Yes

    1. Go To step  5).

    No

    1. Repair the (F941) Fused Ignition Switch Output circuit for an open or short.
    2. Perform SKREEM VERIFICATION TEST .
  5. 5) (D55) AND (D54) CAN B BUS CIRCUITS OPEN

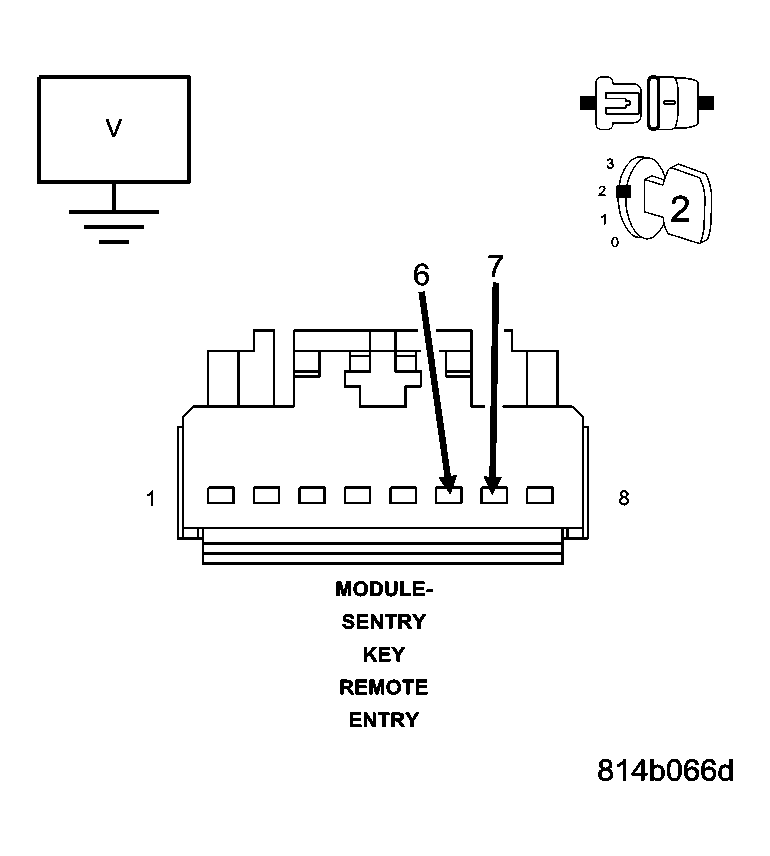

    Fig 4: Checking CAN B BUS Circuits
    GC0027605Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: One open circuit will not cause this condition.

    Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.

    Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.

    Is there any voltage present on either circuit?

    Yes

    1. Replace the Sentry Key Remote Entry Module in accordance with the service information.
    2. Perform SKREEM VERIFICATION TEST .

    No

    1. Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
    2. Perform SKREEM VERIFICATION TEST .
