Sensor-Input Speed: Installation

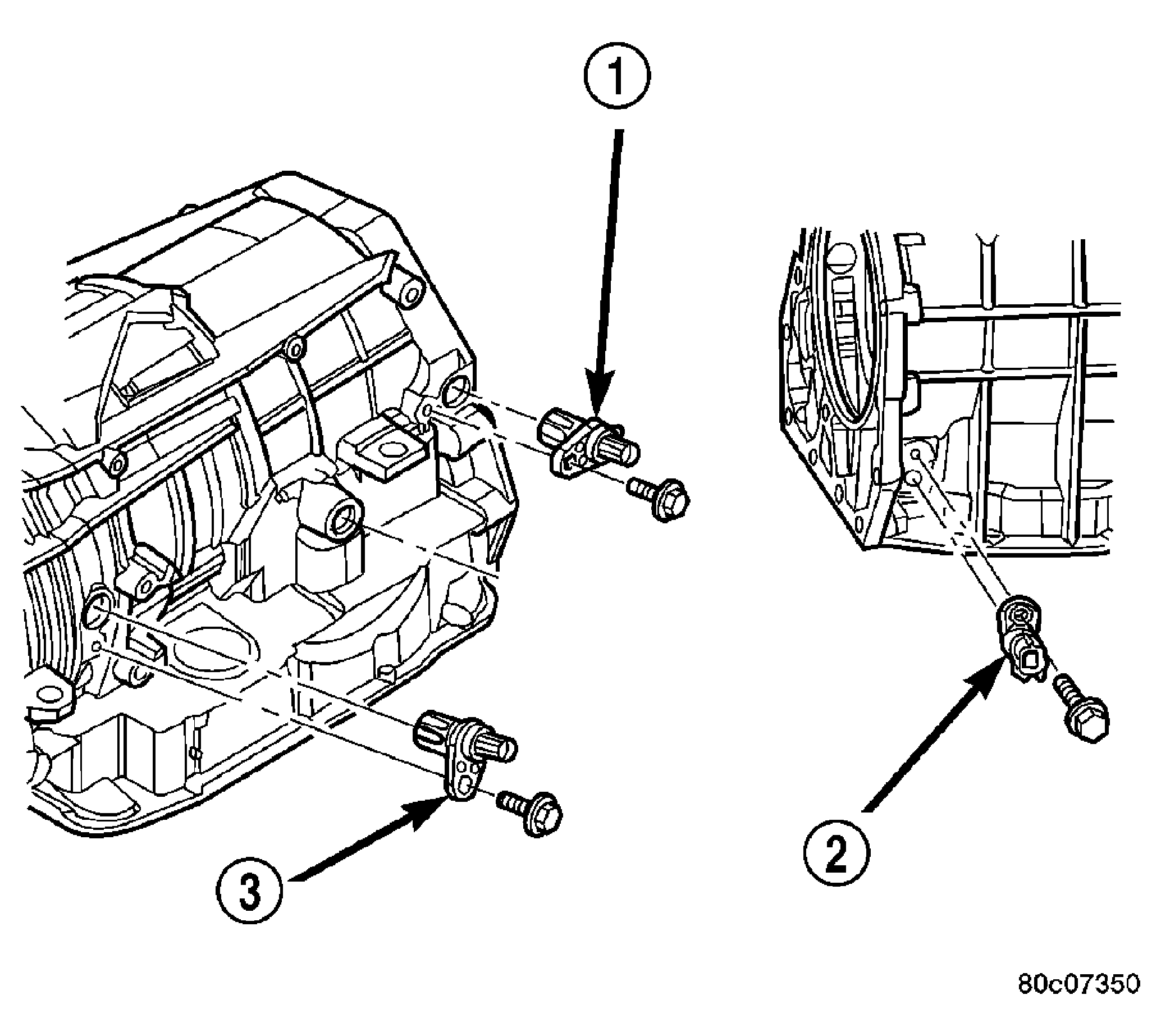

Fig 1: Locating Input Speed, Output Speed and Line Pressure Sensors

Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR

2 - LINE PRESSURE SENSOR

3 - INPUT SPEED SENSOR

Install the input speed sensor (3) into the transmission case. See Fig 1.
Install the bolt to hold the input speed sensor (3) into the transmission case. Tighten the bolt to 12 N.m (105 in.lbs.).
Install the wiring connector onto the input speed sensor.
Verify the transmission fluid level. Add fluid as necessary.
Lower vehicle.
