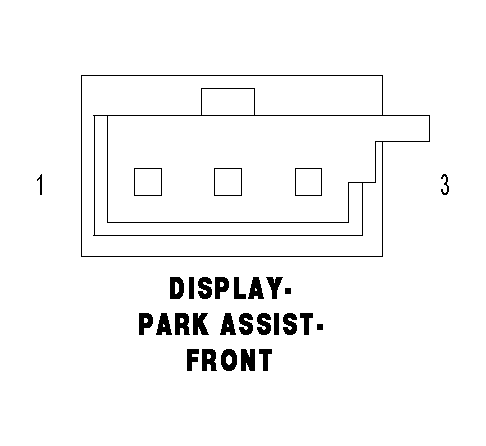

Front Park Assist Display Connector End View
DISPLAY-PARK ASSIST-FRONT - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X778 20GY/DB |
PARK ASSIST DISPLAY COMMUNICATION FEED |
| 2 |
Z172 20BK/OR |
GROUND |
| 3 |
D778 20WT/OR |
FRONT PARK ASSIST DISPLAY SIGNAL |
