Connector Locations

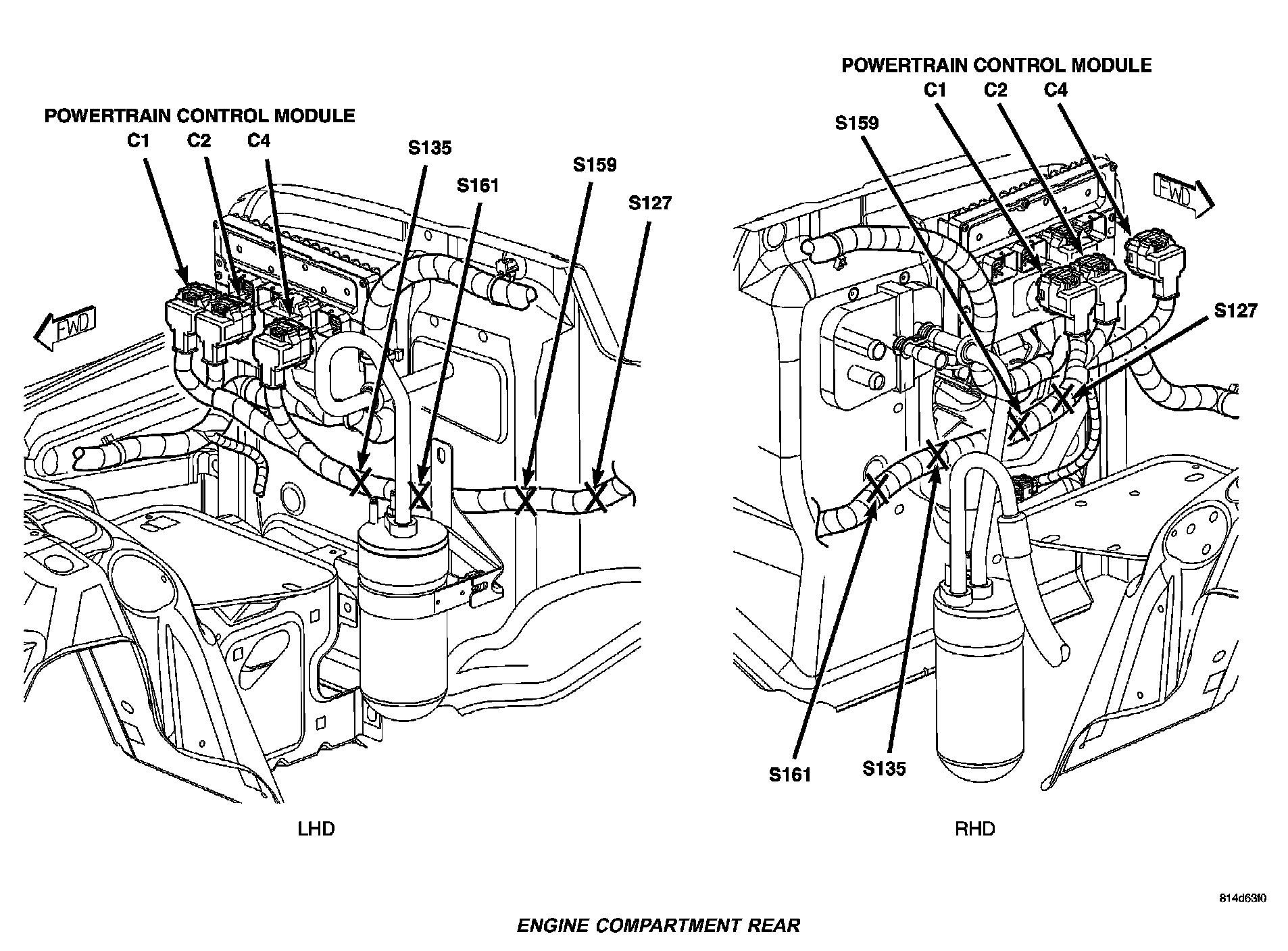

Engine Compartment Rear:

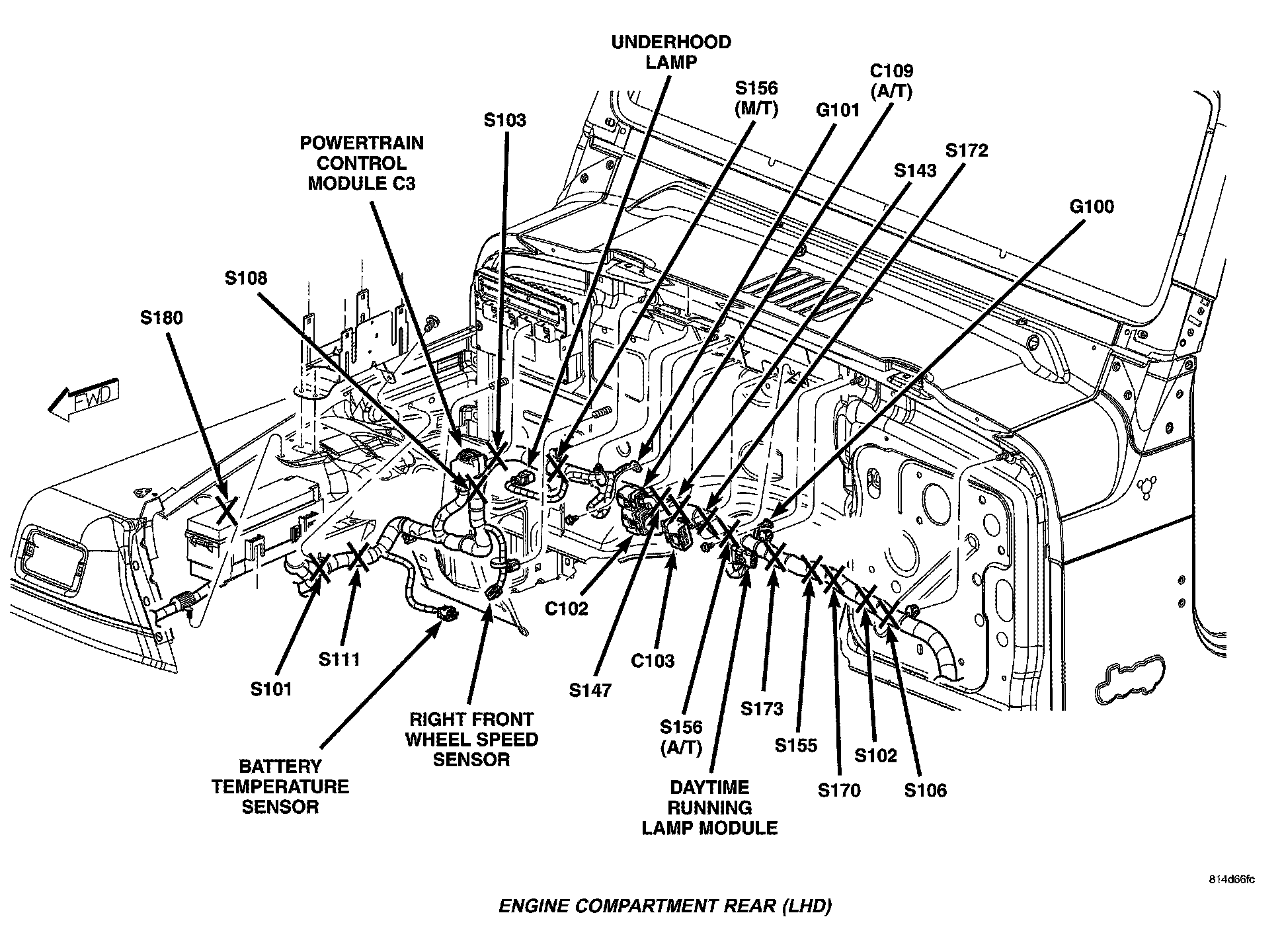

Engine Compartment Rear (LHD):

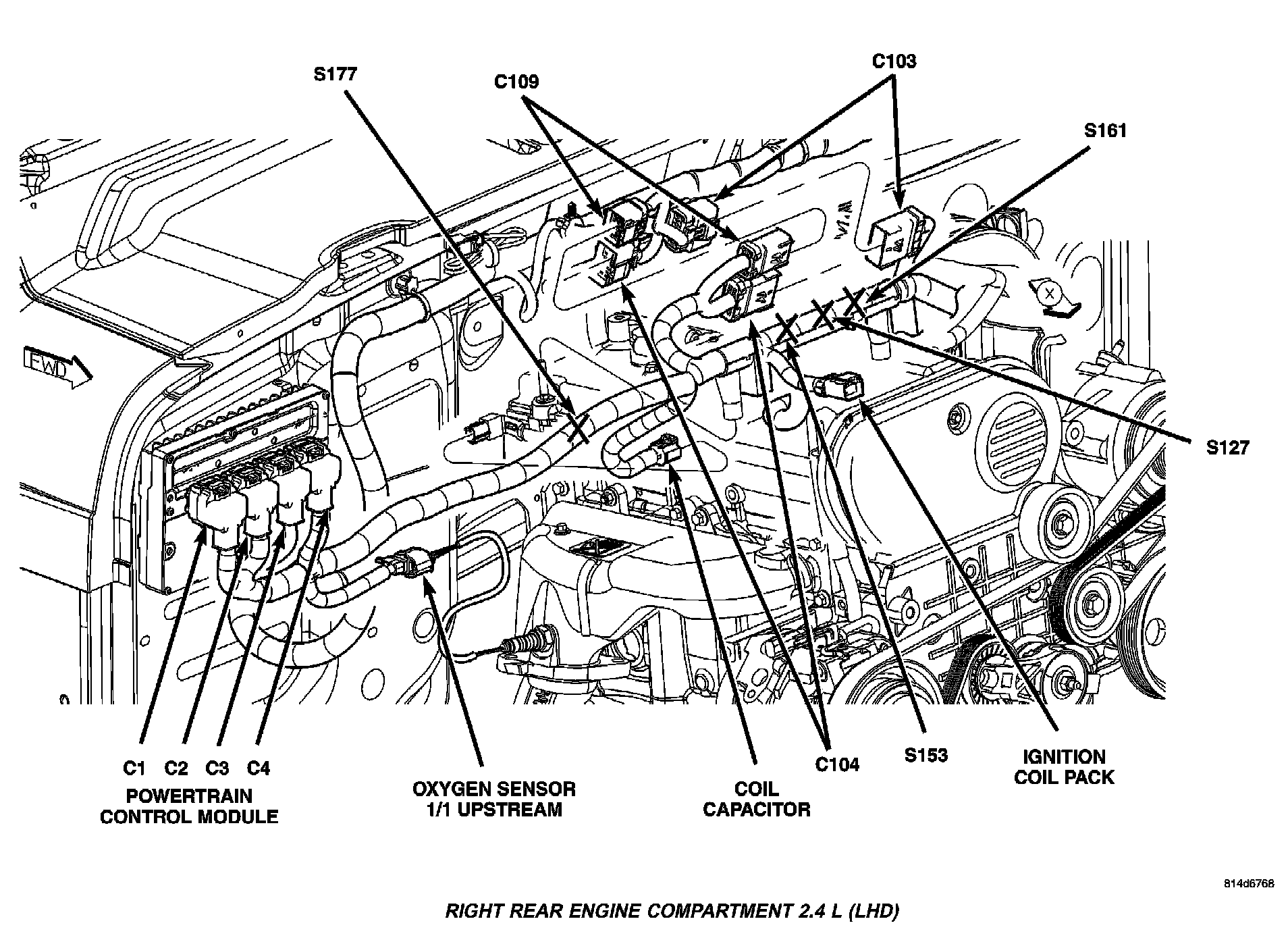

Right Rear Engine Compartment 2.4L (LHD):
