System Specifications

AUTOMATIC TRANSMISSION - 42RLE

SPECIFICATIONS

GENERAL SPECIFICATIONS 42RLE AUTOMATIC TRANSMISSION:

GENERAL SPECIFICATIONS

GEAR RATIOS 42RLE AUTOMATIC TRANSMISSION:

GEAR RATIOS

BEARING PRELOAD (DRAG TORQUE) 42RLE AUTOMATIC TRANSMISSION:

BEARING PRELOAD (DRAG TORQUE)

CLUTCH PACK 42RLE AUTOMATIC TRANSMISSION:

CLUTCH PACK

INPUT SHAFT 42RLE AUTOMATIC TRANSMISSION:

INPUT SHAFT

OIL PUMP CLEARANCES 42RLE AUTOMATIC TRANSMISSION (PART 1):

OIL PUMP CLEARANCES 42RLE AUTOMATIC TRANSMISSION (PART 2):

OIL PUMP CLEARANCES

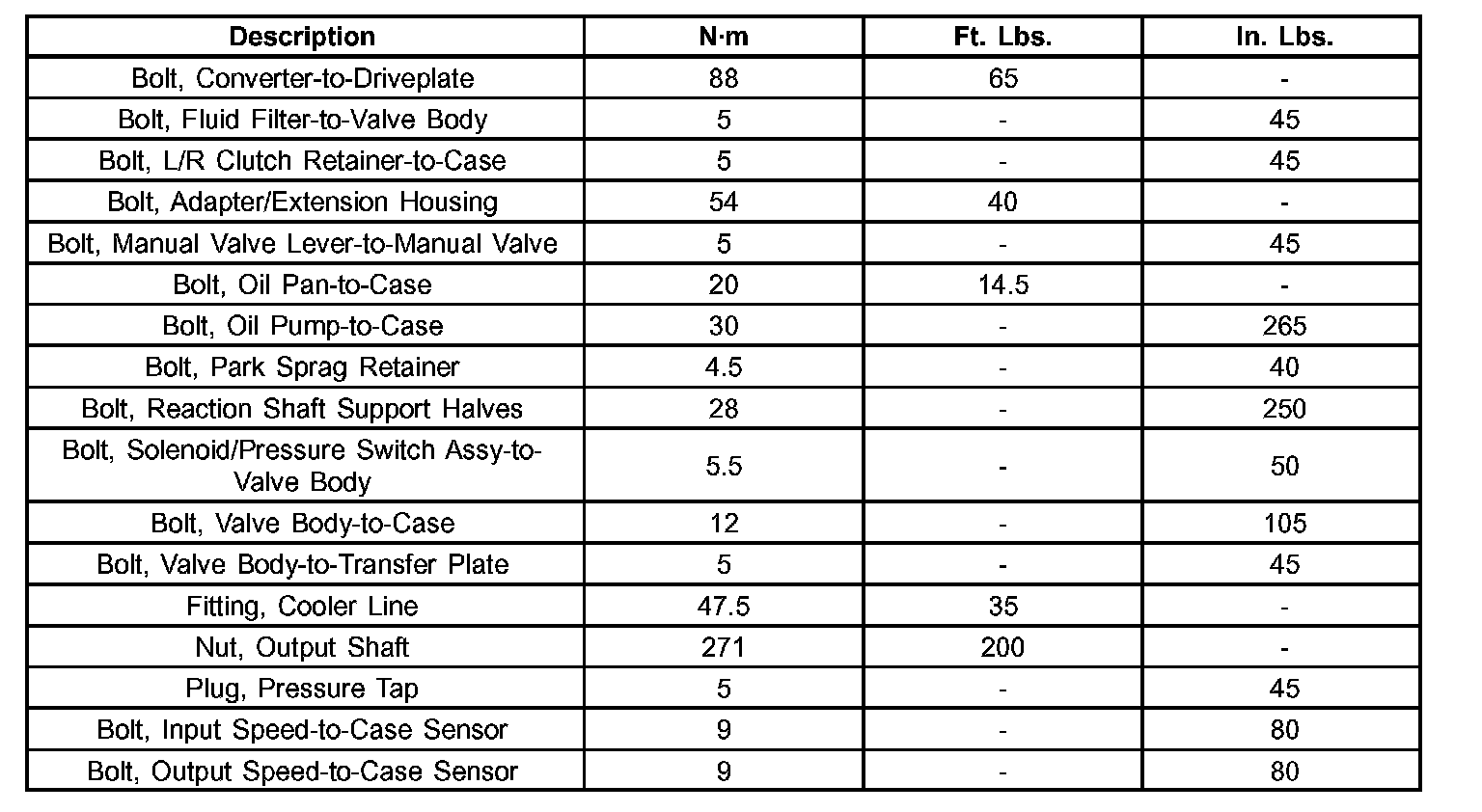

AUTOMATIC TRANSMISSION - 42RLE TORQUE SPECIFICATIONS:

TORQUE SPECIFICATIONS
