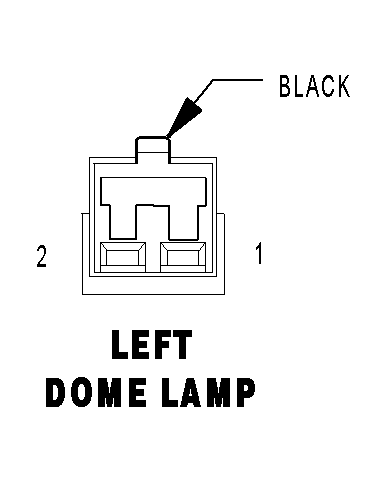

Left Dome Lamp Connector End View
LEFT DOME LAMP - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
M21 20YL/BR |
FUSED B(+) |
| 2 |
M22 20YL/OR |
COURTESY LAMPS DRIVER |
