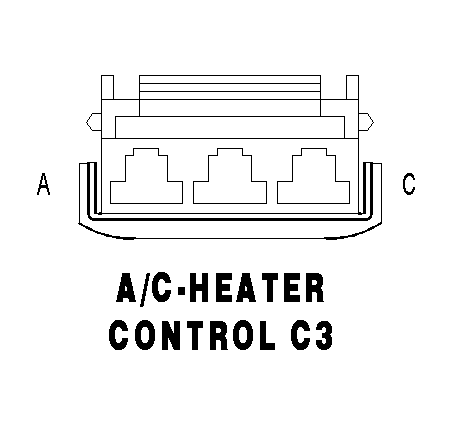

A/C Heater Control Connector End View (C3)
A/C-HEATER CONTROL C3 - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
C221 20LB/OR |
A/C SELECT SIGNAL |
| B |
C805 12DB/WT |
BLOWER MOTOR FEED |
| C |
Z1 12BK |
GROUND |
