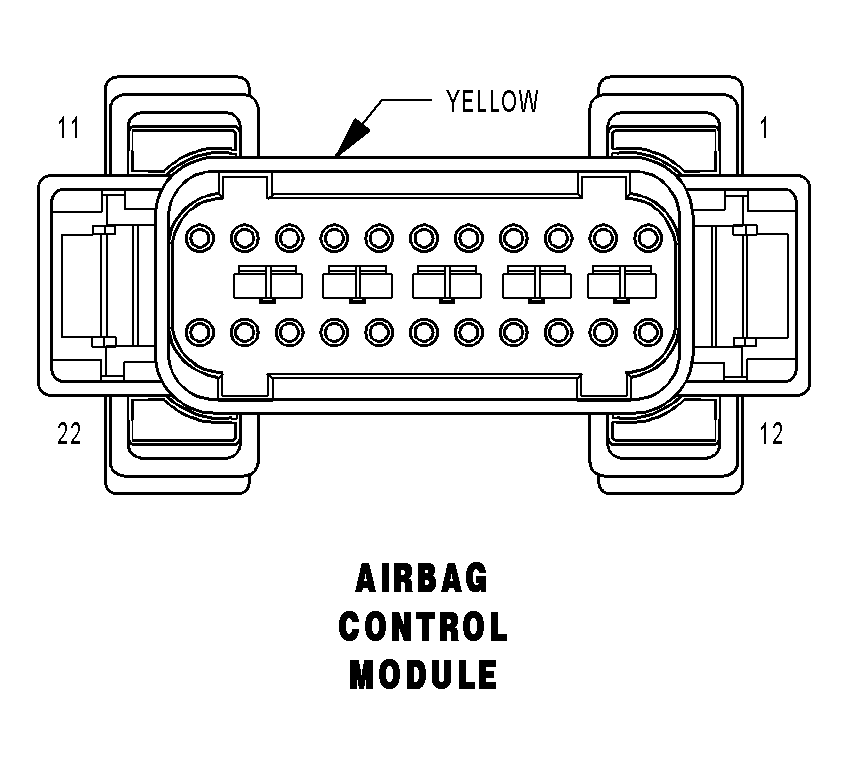

Airbag Control Module Connector End View
AIRBAG CONTROL MODULE - YELLOW 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | R43 18LG/BR | DRIVER SQUIB 1 LINE 1 |
| 2 | R45 18LG/OR | DRIVER SQUIB 1 LINE 2 |
| 3 | - | - |
| 4 | - | - |
| 5 | R44 18LB/OR | PASSENGER SQUIB 1 LINE 2 |
| 6 | R42 18LB/BR | PASSENGER SQUIB 1 LINE 1 |
| 7 | - | - |
| 8 | G104 18VT/GY (PAD) | PASSENGER AIRBAG INDICATOR DRIVER |
| 9 | - | - |
| 10 | Z104 18BK/LG | GROUND |
| 11 | R106 18LG/LB (PAD) | PASSENGER AIRBAG MUX SWITCH SENSE |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | F201 18PK/OR | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 18 | D25 18WT/VT | PCI BUS |
| 19 | - | - |
| 20 | F100 18PK/VT | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 21 | - | - |
| 22 | R104 18LB/LG (PAD) | PASSENGER AIRBAG MUX SWITCH RETURN |
