Fuel System Locations

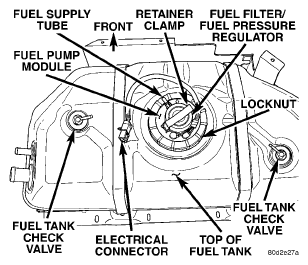

Fig 1: Locating Fuel System Components
G04763981Courtesy of DAIMLERCHRYSLER CORPORATION


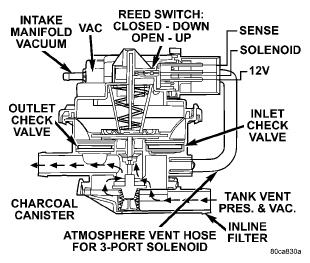

Fig 1: Locating Fuel System Components
G04763983Courtesy of DAIMLERCHRYSLER CORPORATION
