Alternator

Component ID: 125
Component : GENERATOR

Connector:
Name : GENERATOR
Color : BLUE
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 LIN BUS D509 20WT/BL
2 FUSED B(+) A923 10RD

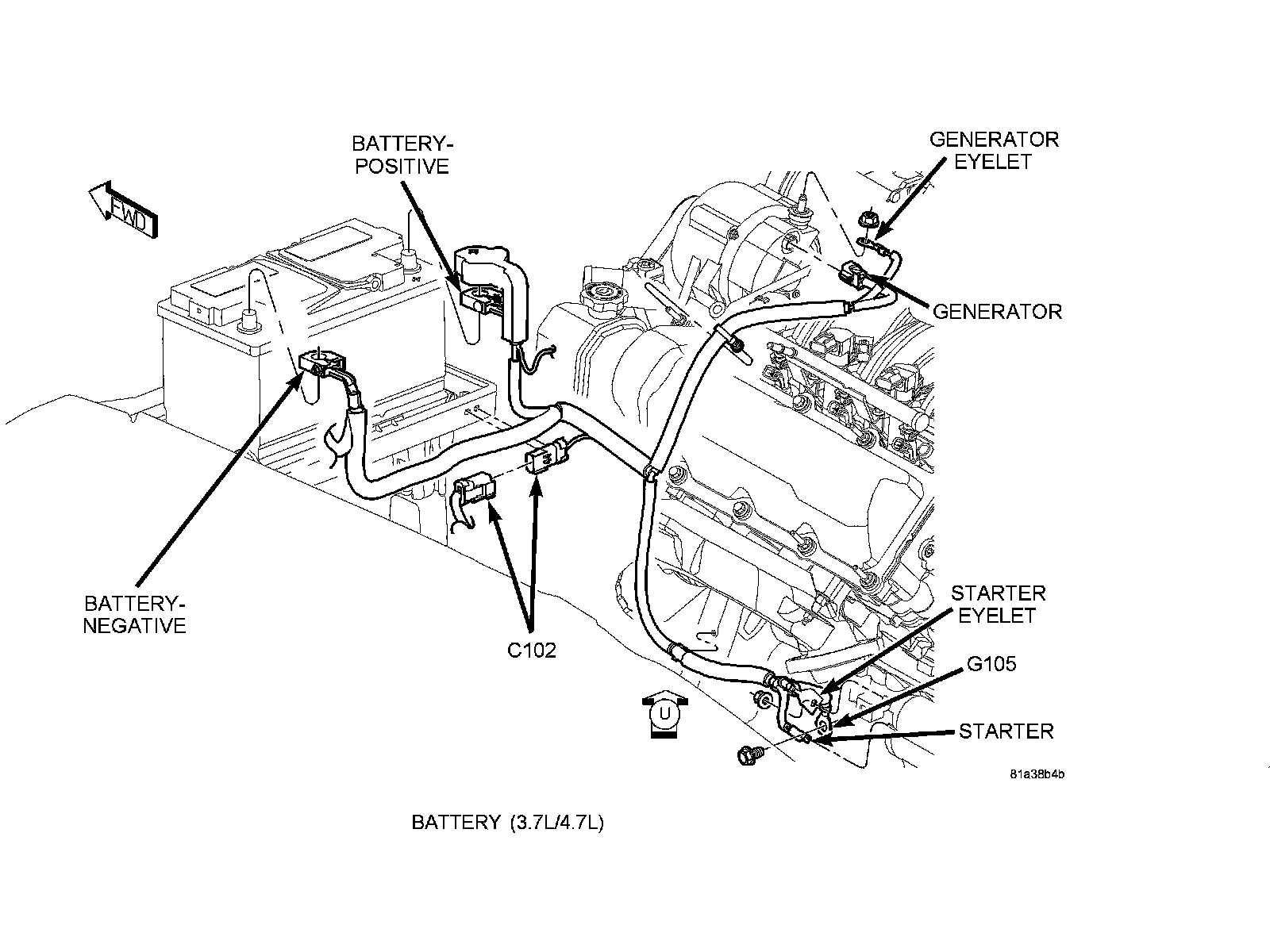

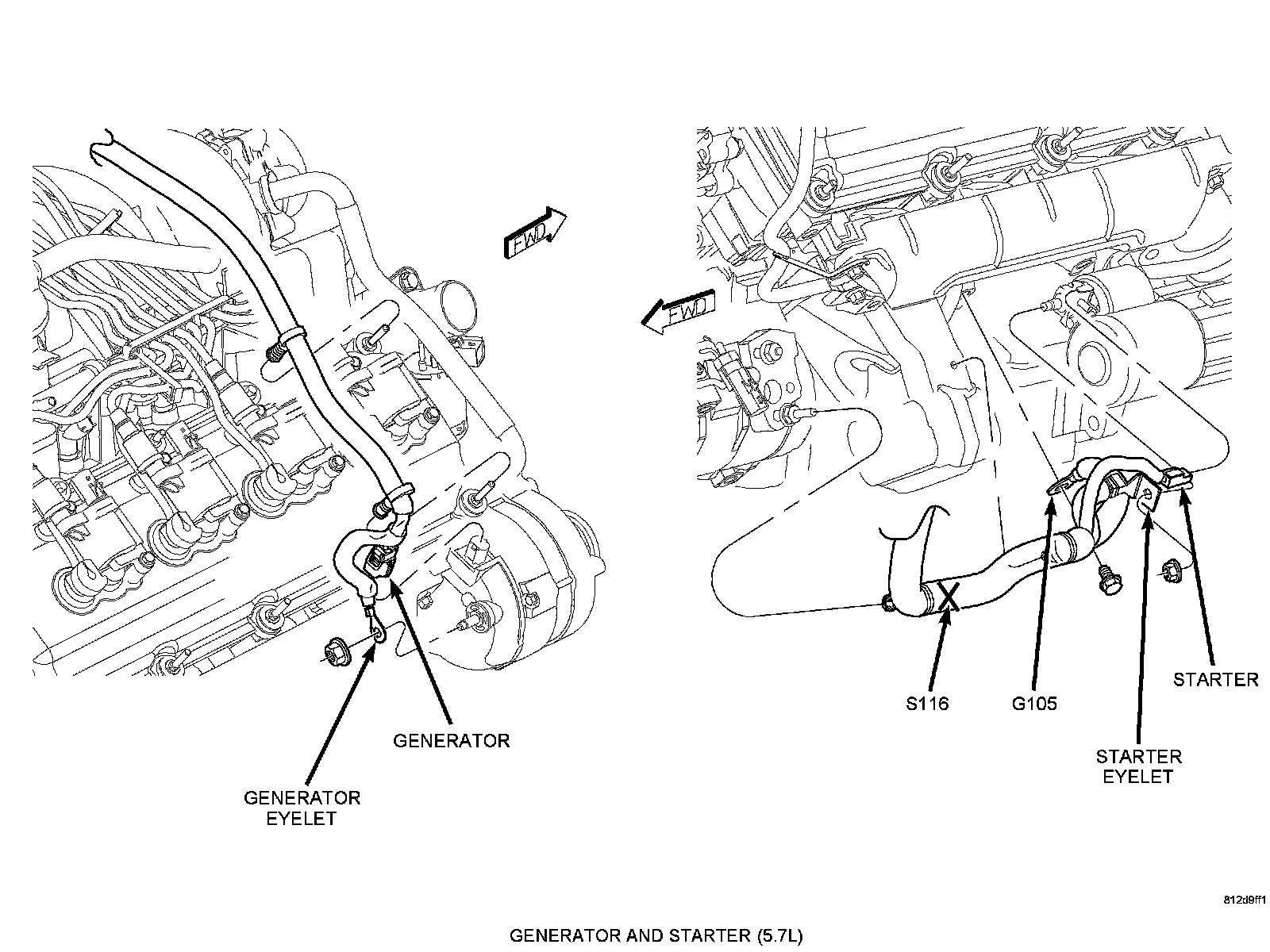

Component Location - 14




Component Location - 12






Connector:
Name : GENERATOR
Color :
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 GEN FIELD CONTROL K125 16BR/DG
2 GEN SENSE A803 16LB

Component Location - 14




Component Location - 12






Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1




Pin Description Circuit
1 FUSED B(+) A11 6BR/RD

Component Location - 14




Component Location - 12






Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL/EXPORT)




Pin Description Circuit
1 FUSED B(+) A11 4BR/RD

Component Location - 14




Component Location - 12
