Installation

3.7L

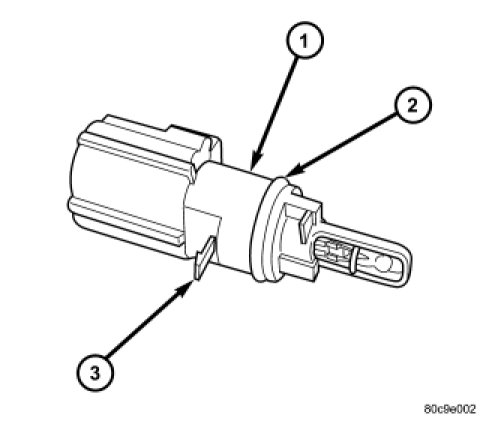

1. Check condition of sensor O-ring (2).

2. Clean sensor mounting hole in intake manifold.

3. Position sensor into intake manifold and rotate clockwise until past release tab.

4. Install electrical connector.
