Sensor-Knock-No. 1

Component ID: 475
Component : SENSOR-KNOCK-NO. 1

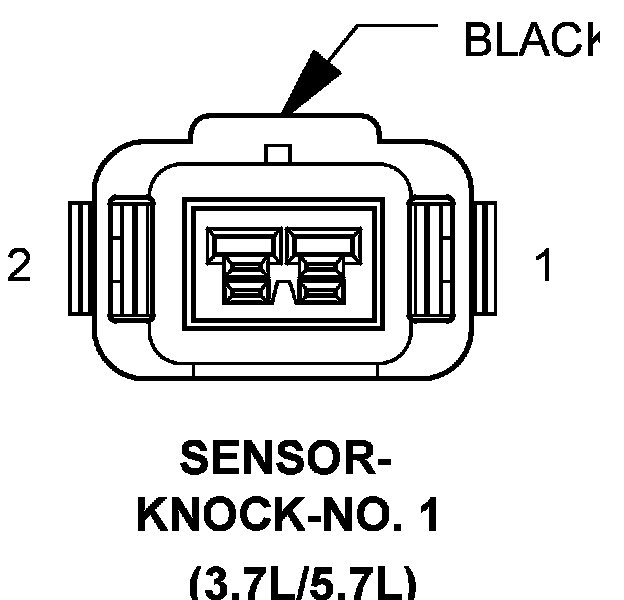

Connector:
Name : SENSOR-KNOCK-NO. 1
Color : BLACK
# of pins : 2
Qualifier : (3.7L/5.7L)




Pin Description Circuit
1 KNOCK SENSOR NO. 1 SIGNAL K42 20DB/OR
2 KNOCK SENSOR NO. 1 RETURN K942 20BR/LG

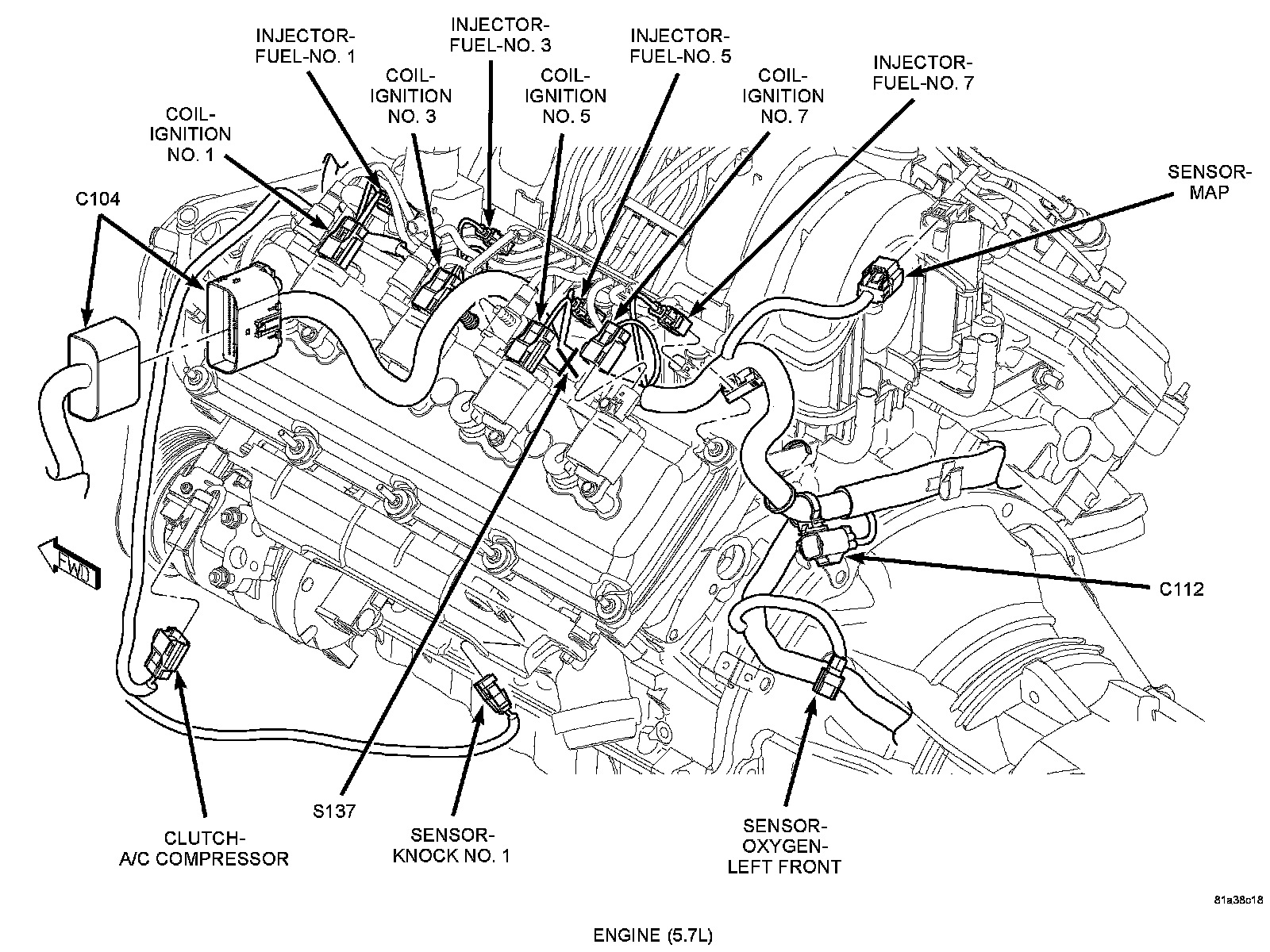

Component Location - 17

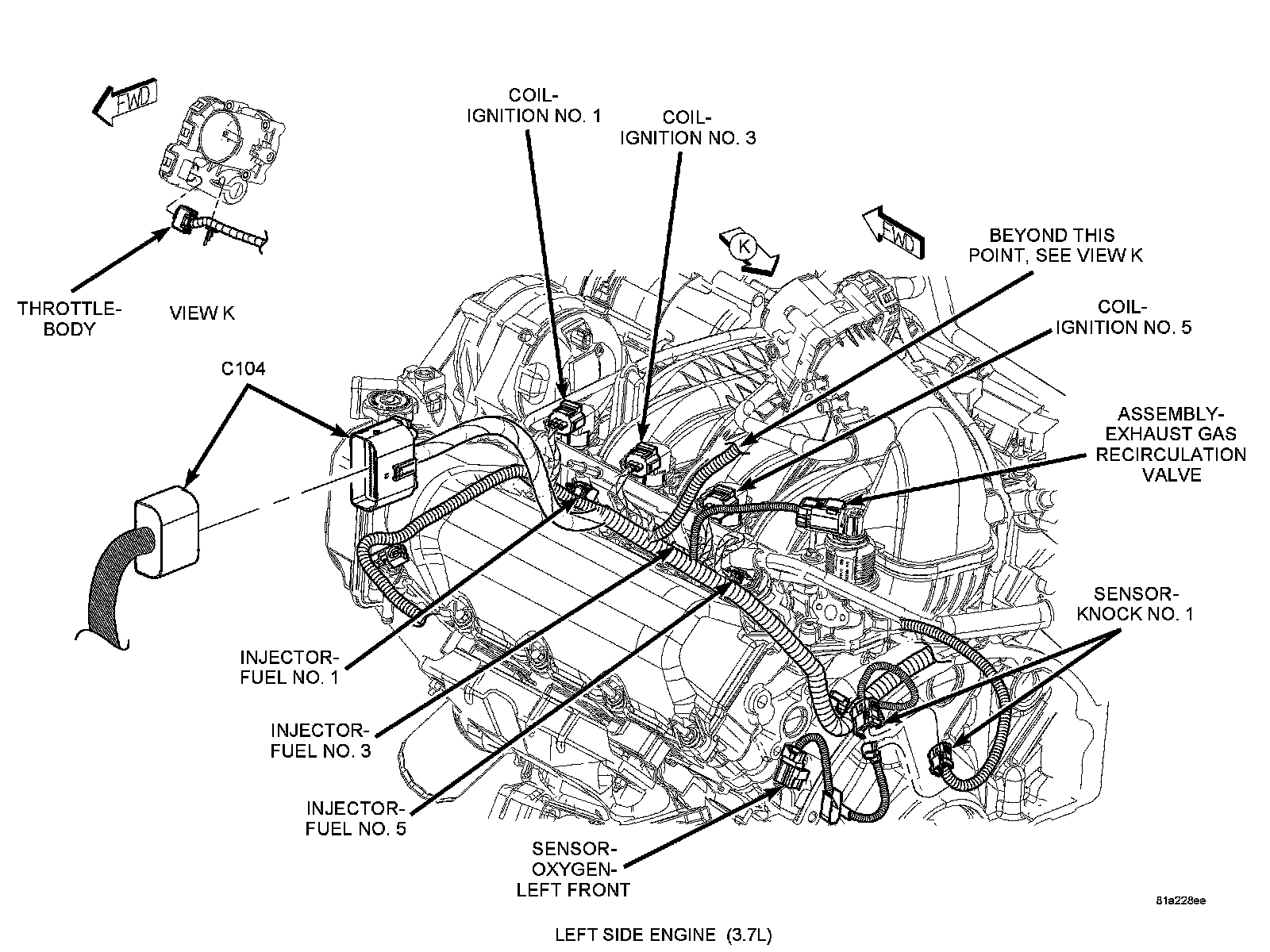

Component Location - 25
