Service Specifications

3.7L ENGINE

General Specifications:

General Specifications

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Pins:

Piston Pins

Piston Rings:

Piston Rings

Connecting Rods:

Connecting Rods

Crankshaft:

Crankshaft

Camshaft:

Camshaft

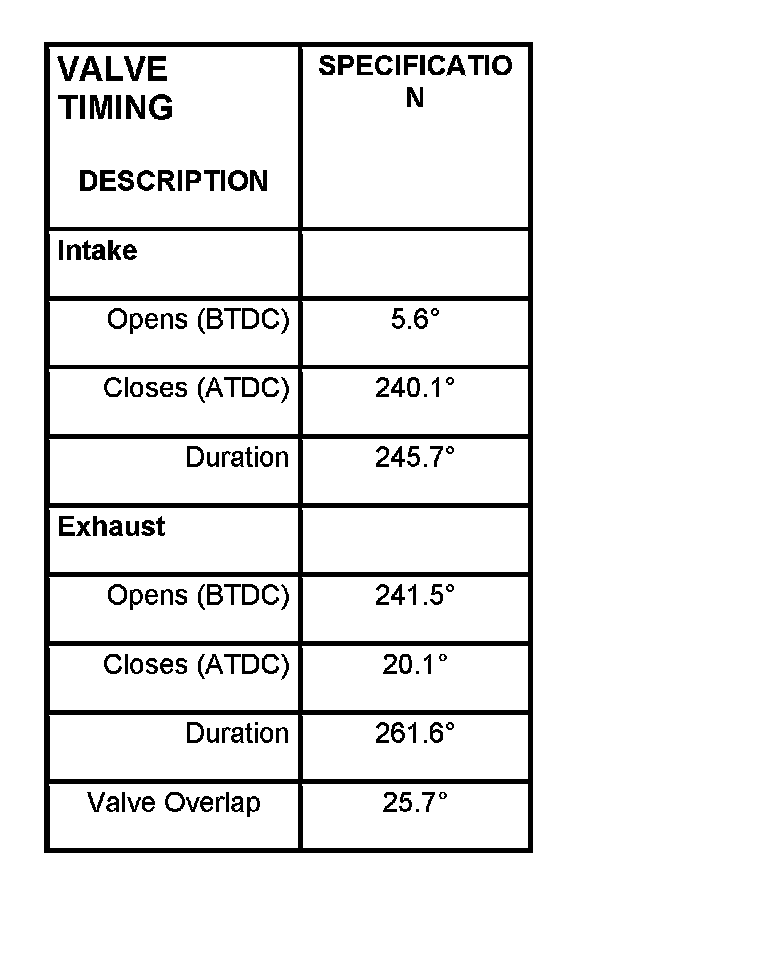

Valve Timing:

Valve Timing

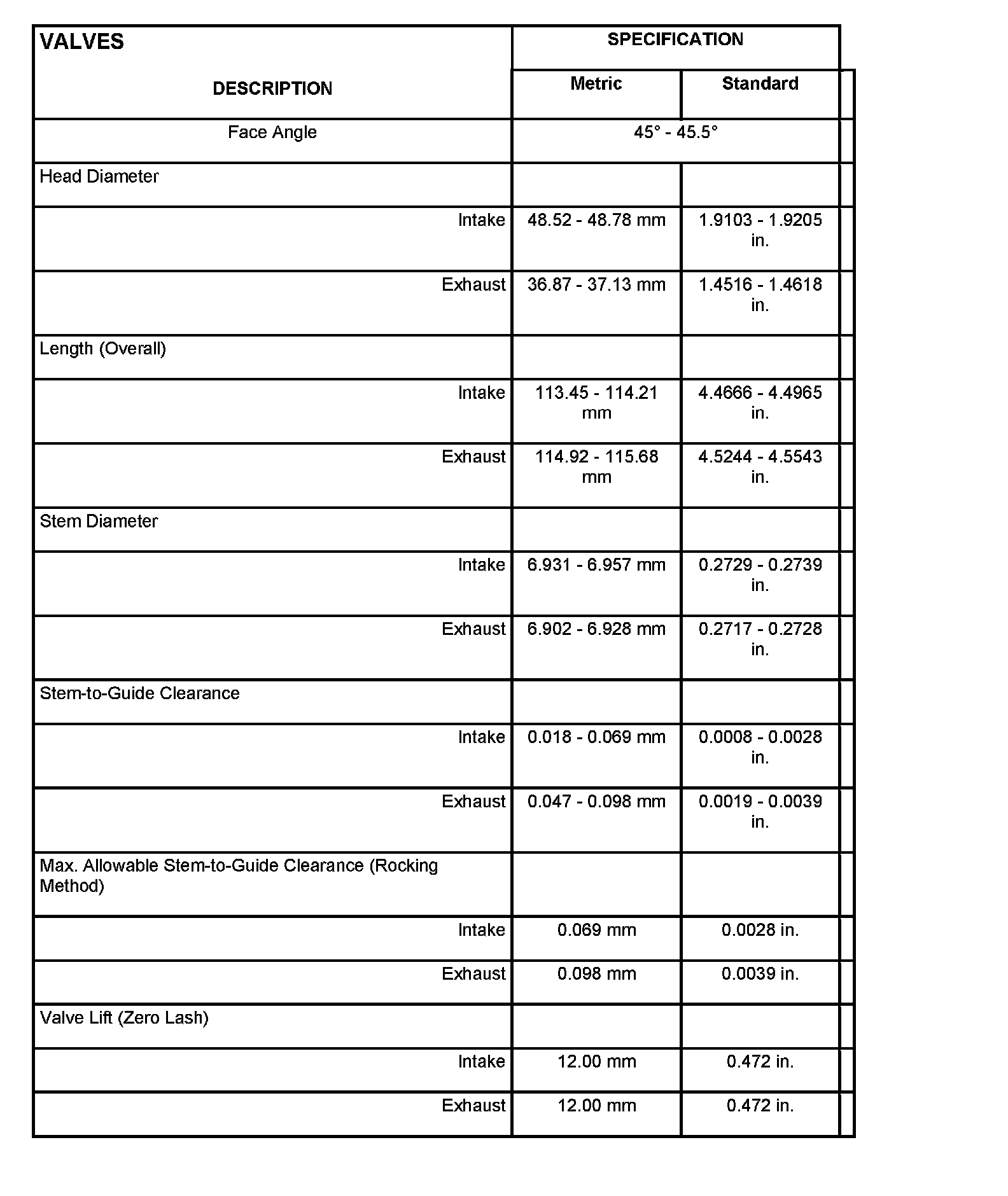

Valves:

Valves

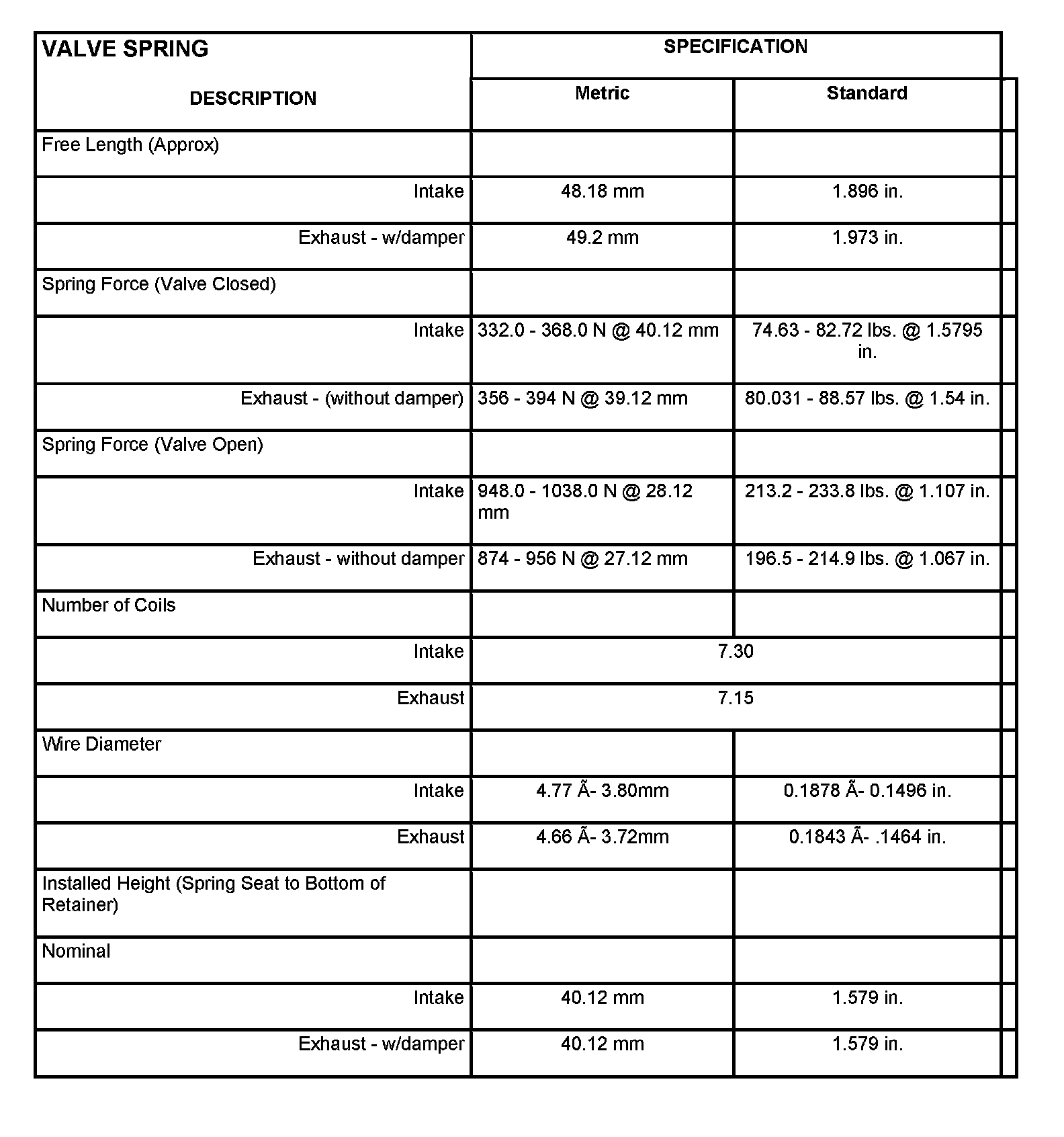

Valve Spring:

Valve Spring

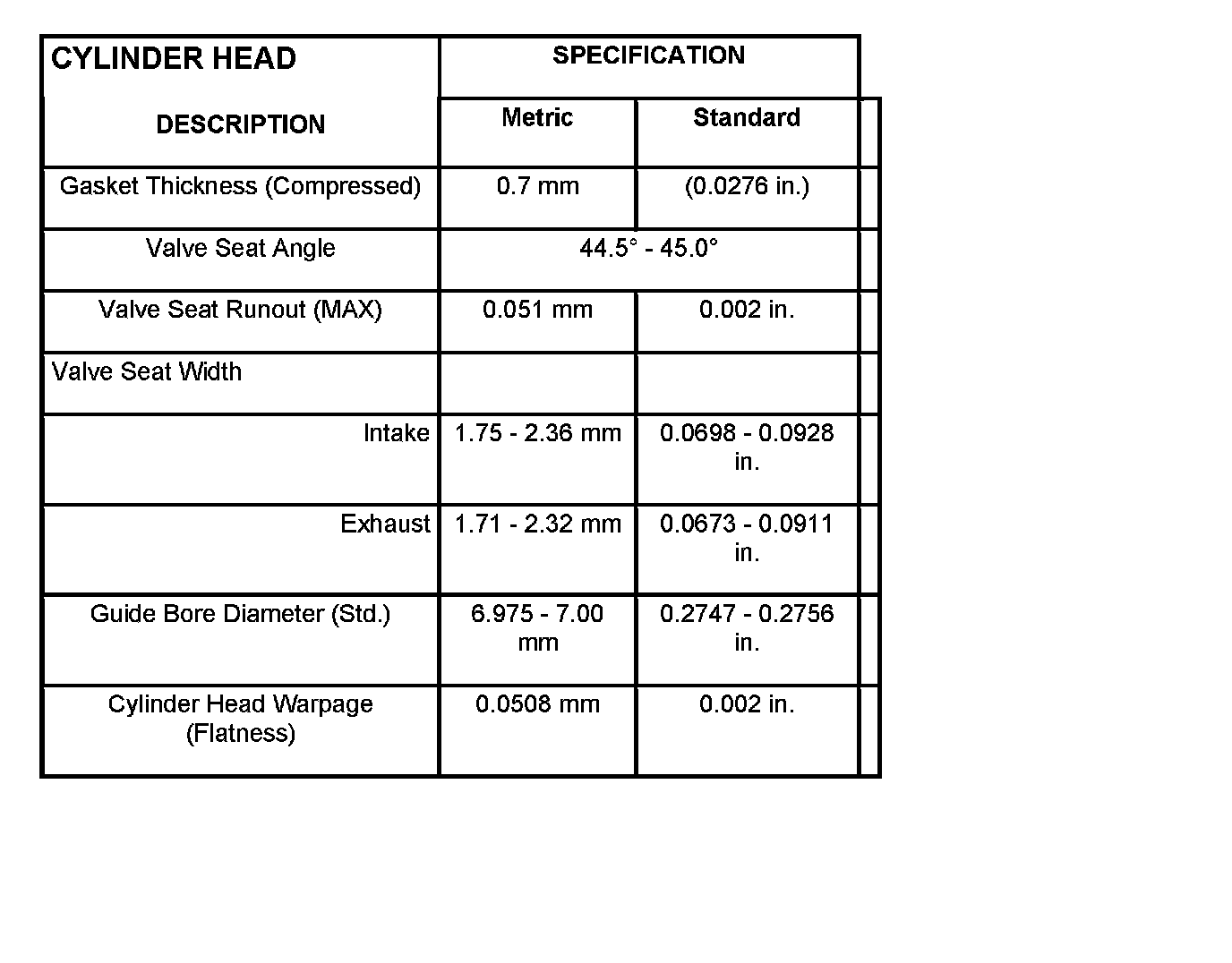

Cylinder Head:

Cylinder Head

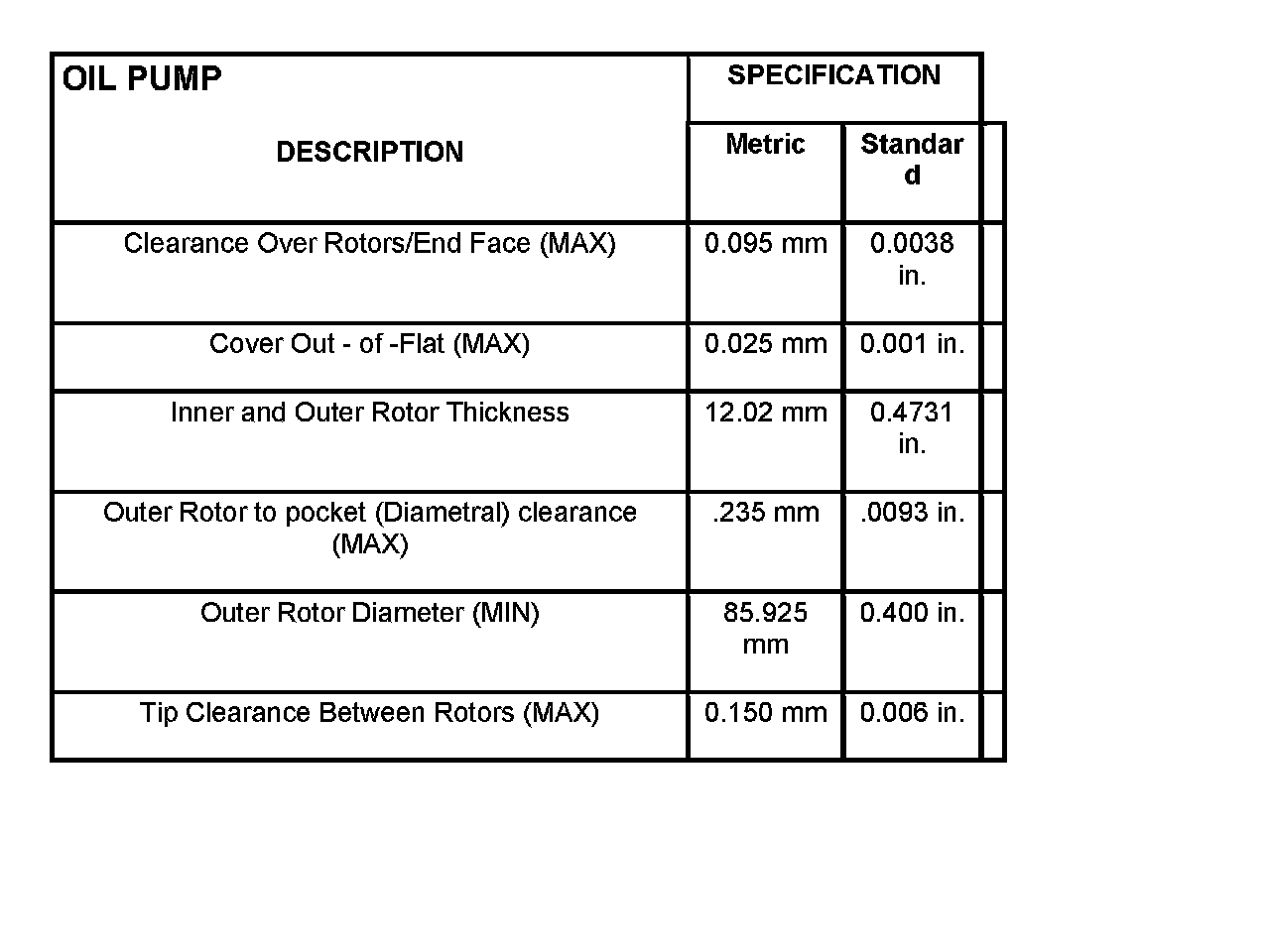

Oil Pump:

Oil Pump

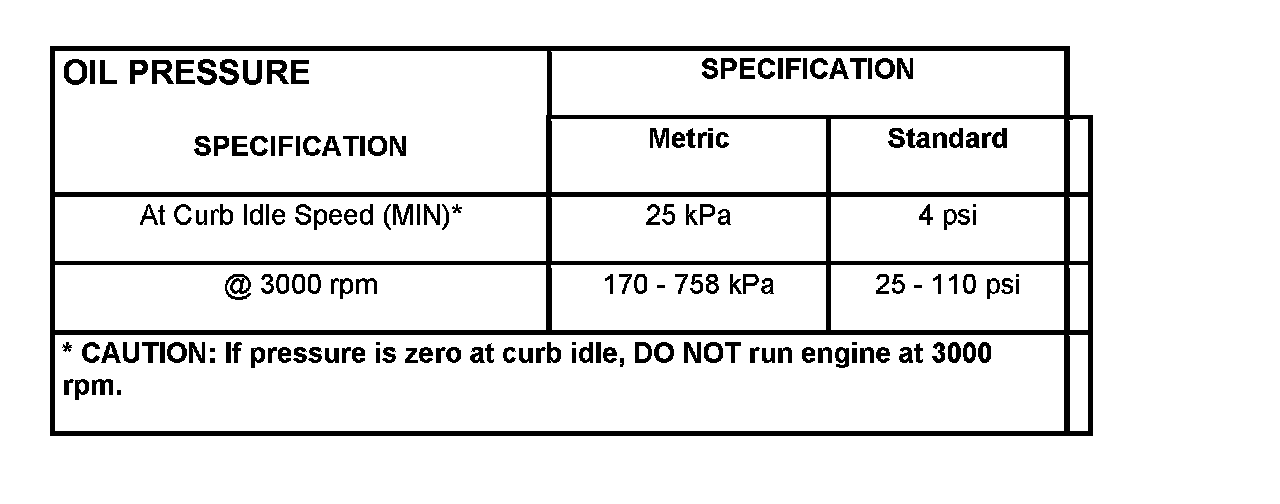

Oil Pressure:

Oil Pressure
