System Specifications

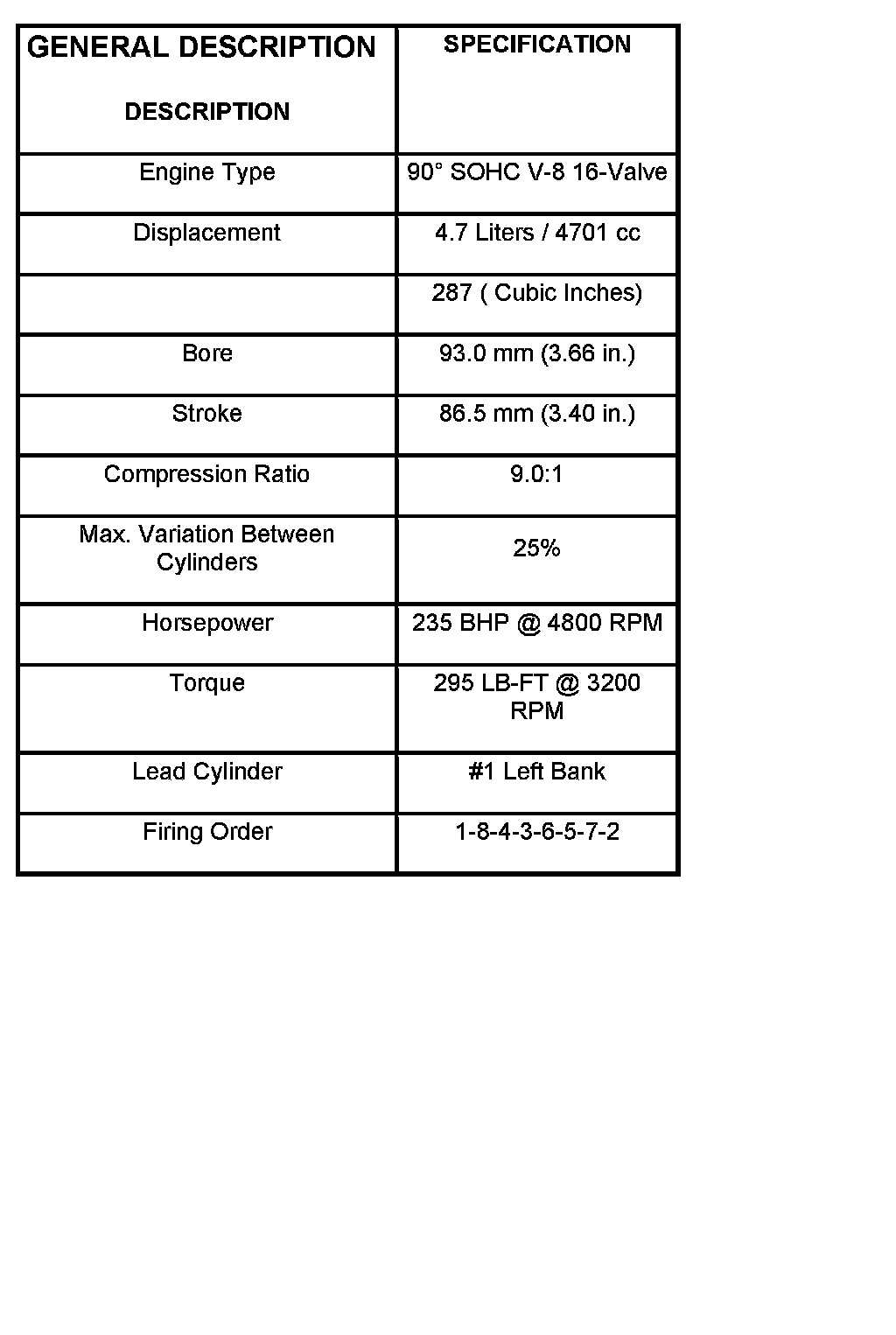

General Description:





General Description

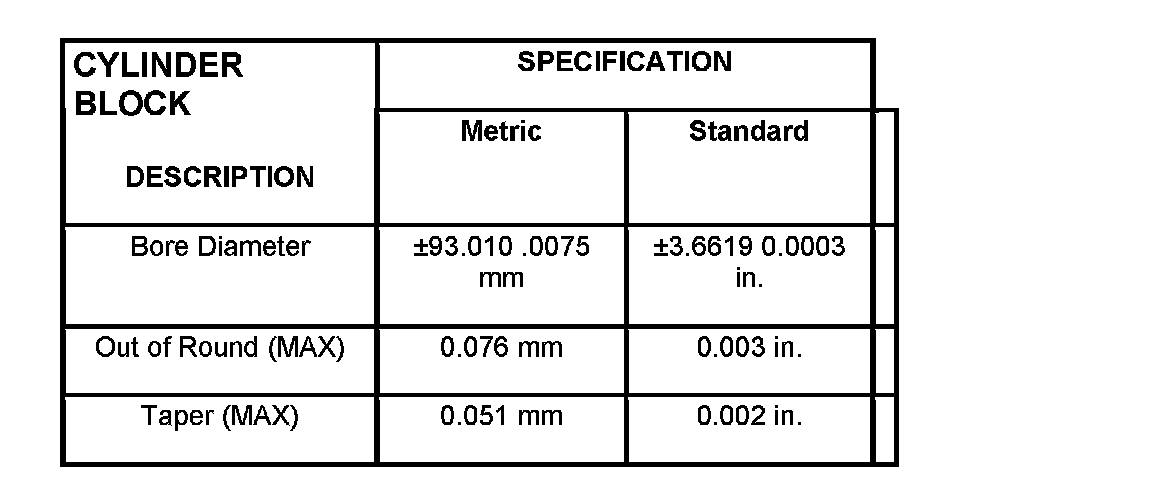

Cylinder Block:





Cylinder Block

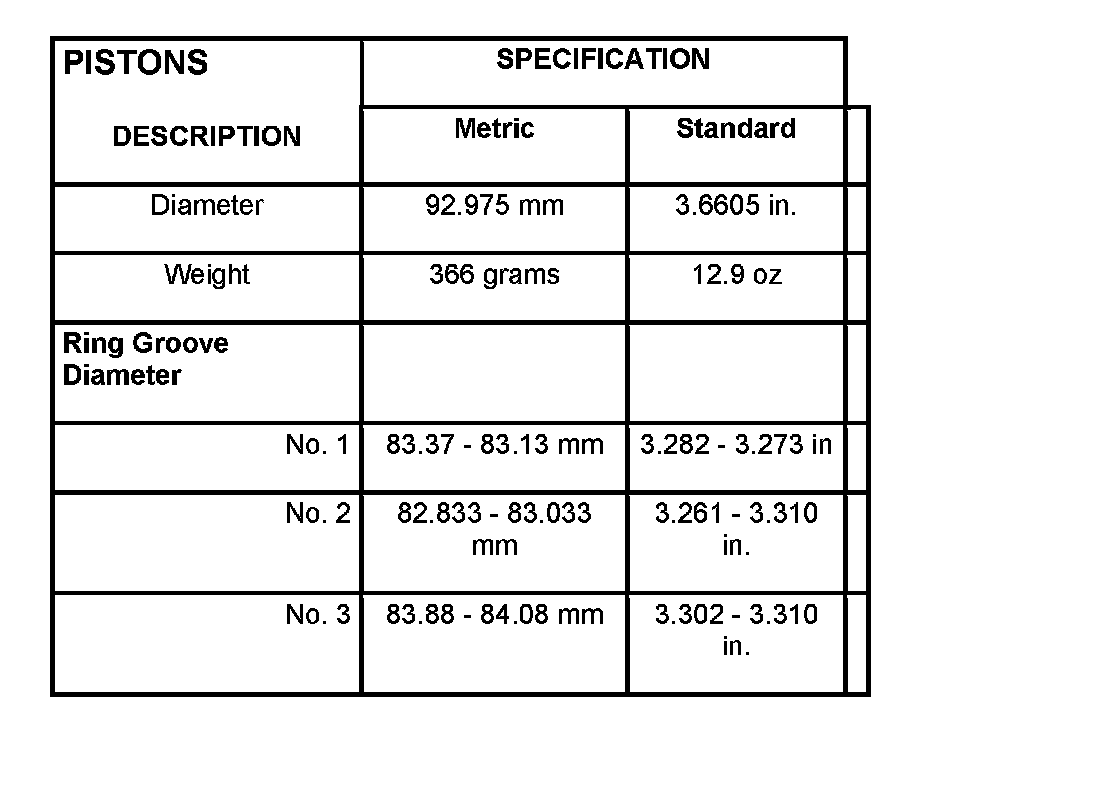

Pistons:





Pistons

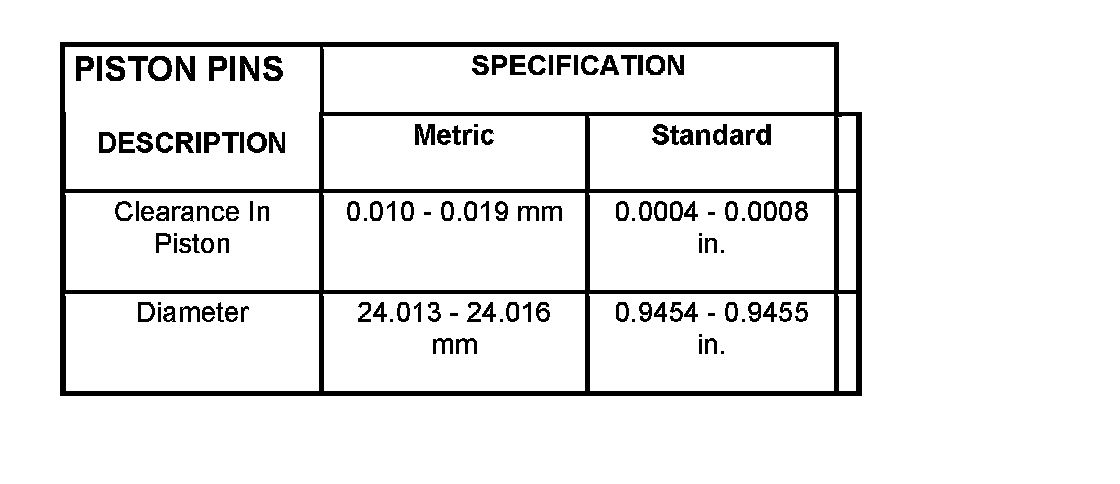

Piston Pins:





Piston Pins

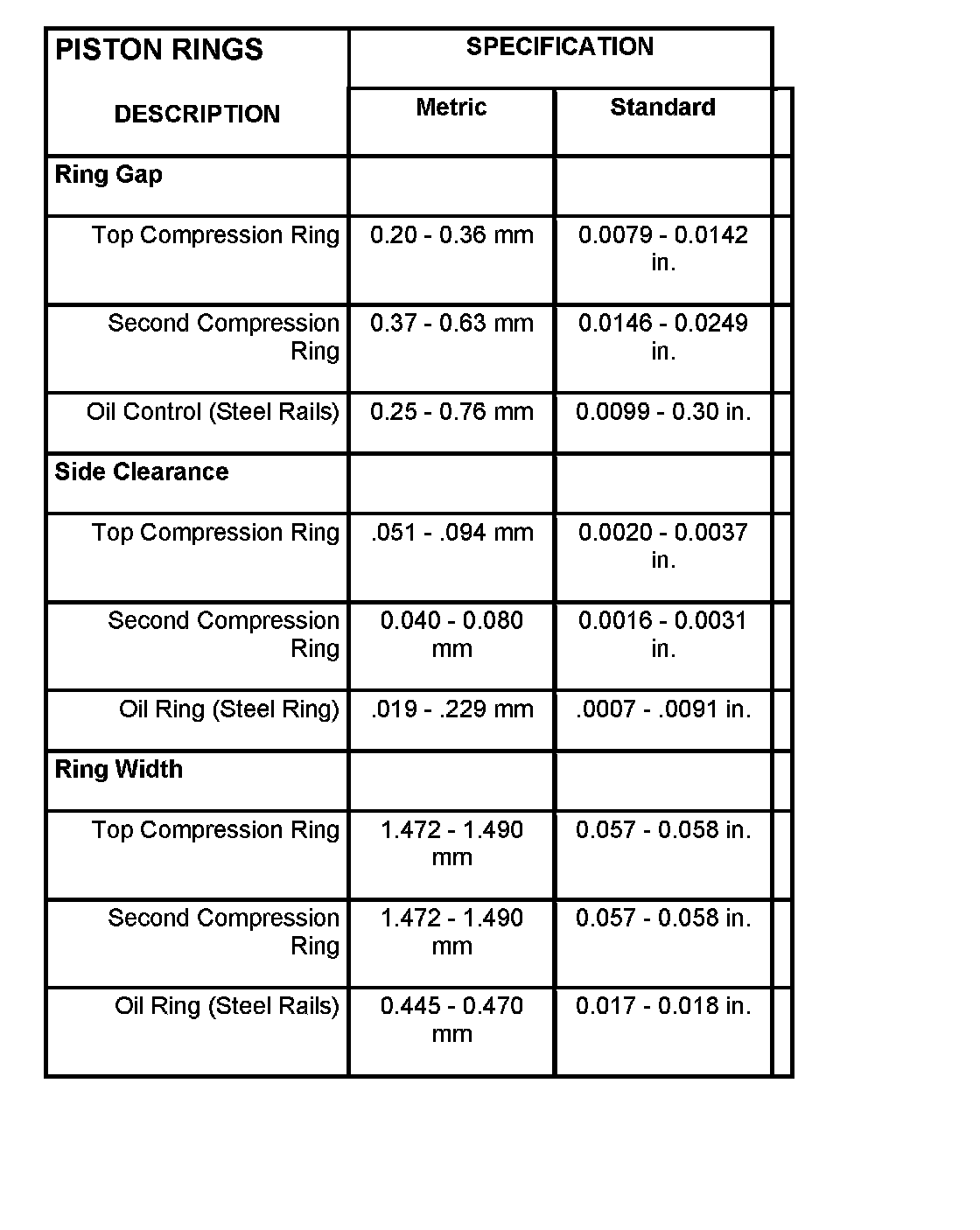

Piston Rings:





Piston Rings

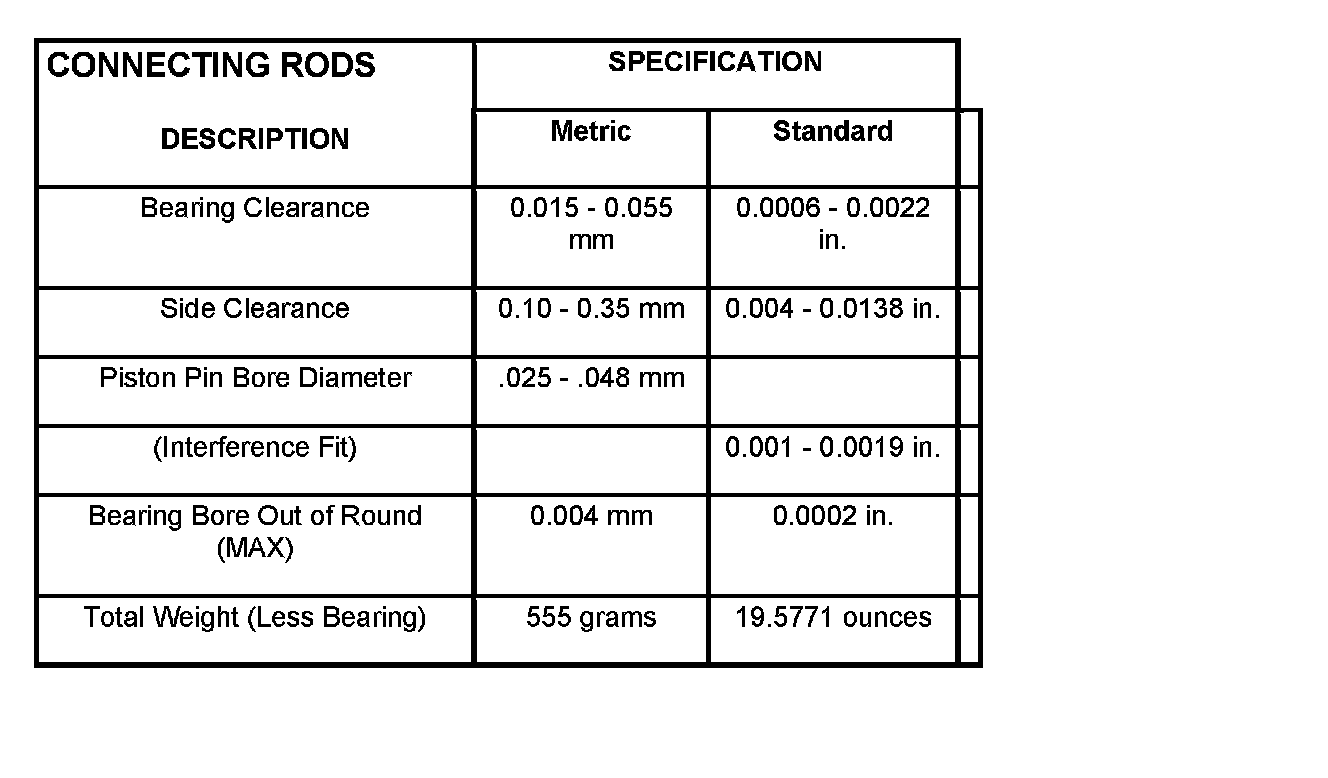

Connecting Rods:





Connecting Rods

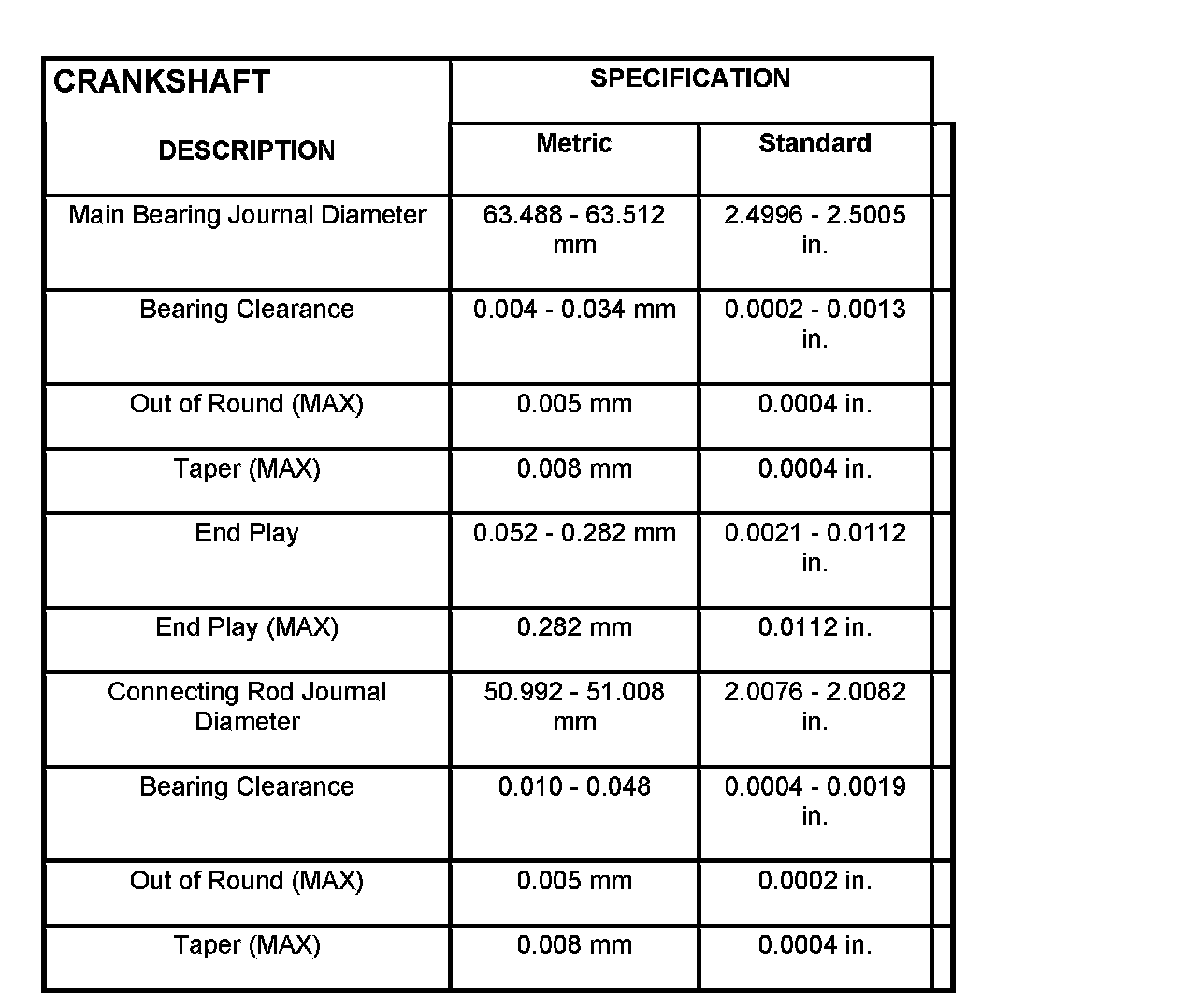

Crankshaft:





Crankshaft

Connecting Rod Cap-Bolts 27 Nm (20 ft. lbs.) PLUS 90� TURN
Crankshaft Damper-Bolt 175 Nm (130 ft. lbs.)

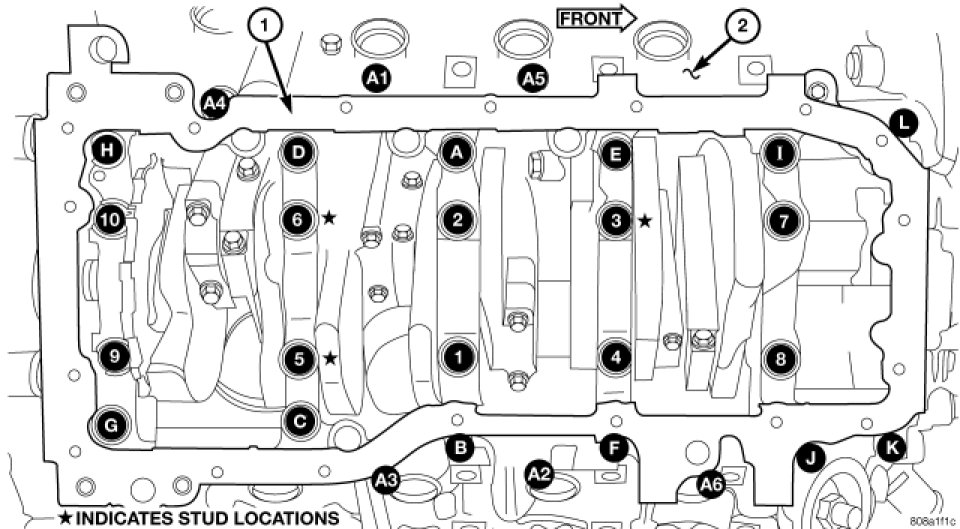

Bed Plate-Bolts





Tighten bolts A - 1J to 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 to 7 Nm (5 ft. lbs.)
Turn bolts 1 - 8 an additional 90�.
Tighten bolts A - E 27 Nm (20 ft. lbs.)
