Service Specifications

SPECIFICATIONS - 4.7L ENGINE

General Description:

General Description

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Pins:

Piston Rings:

Connecting Rods:

Connecting Rods

Crankshaft:

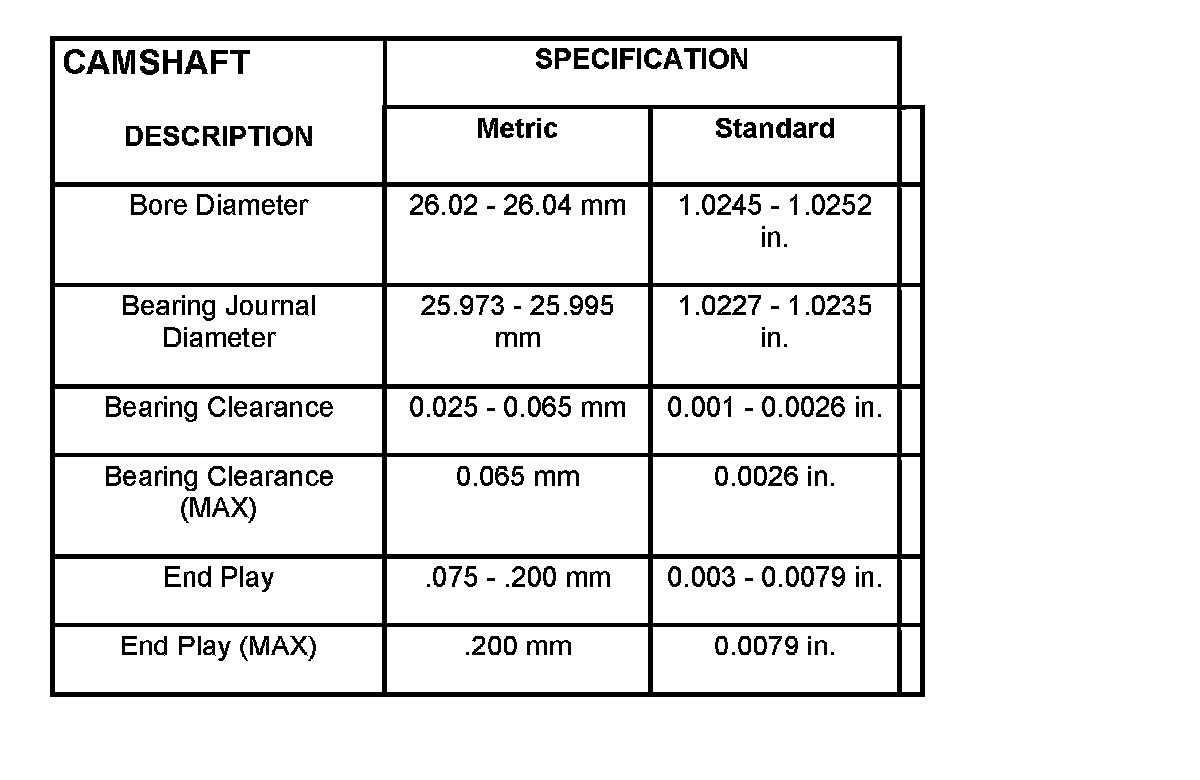

Camshaft:

Valve Timing:

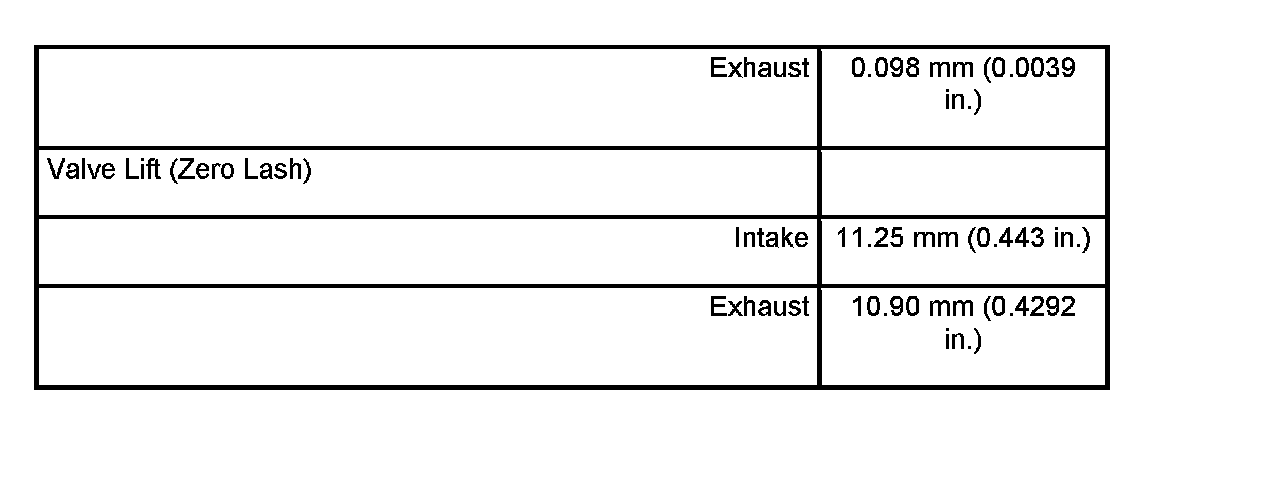

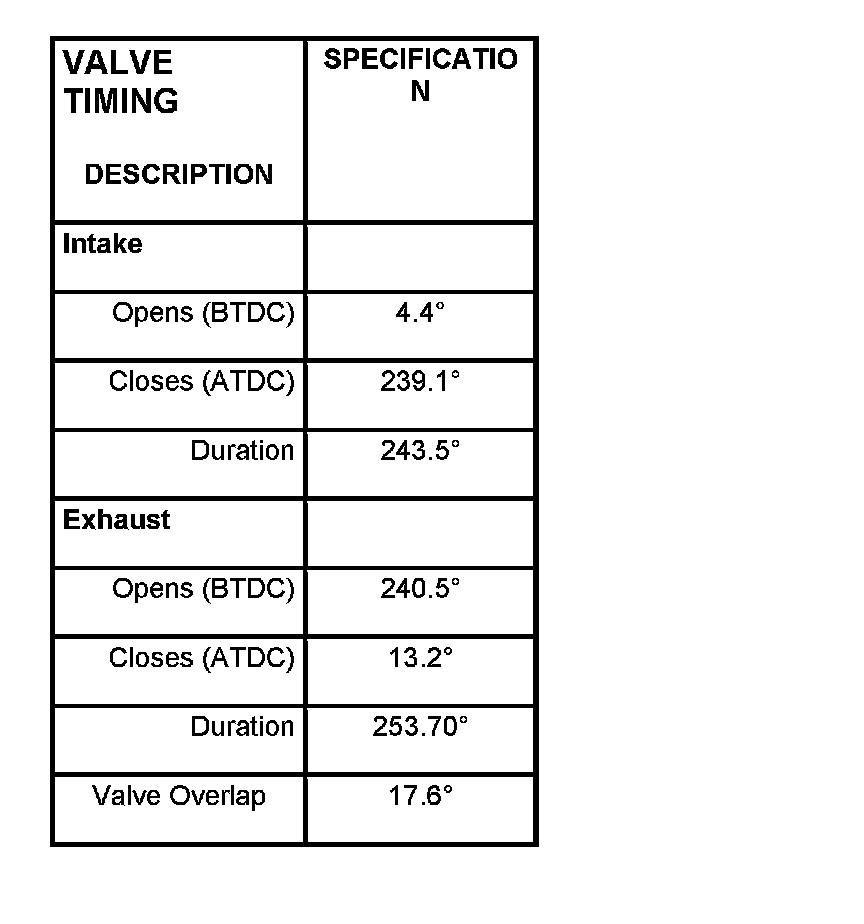

Valve Timing

Valves (Part 1):

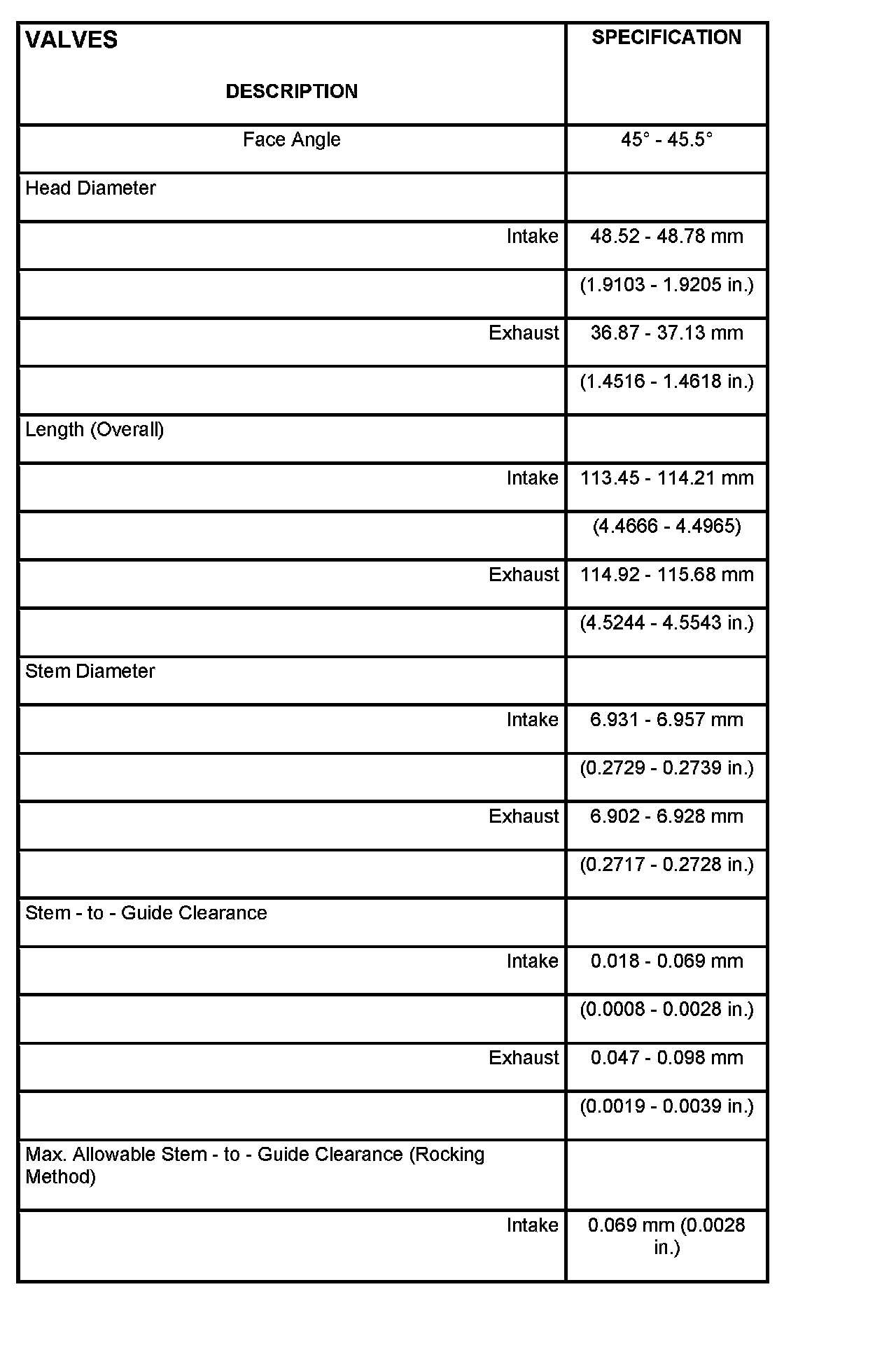

Valves (Part 1)

Valves (Part 2):

Valves (Part 2)

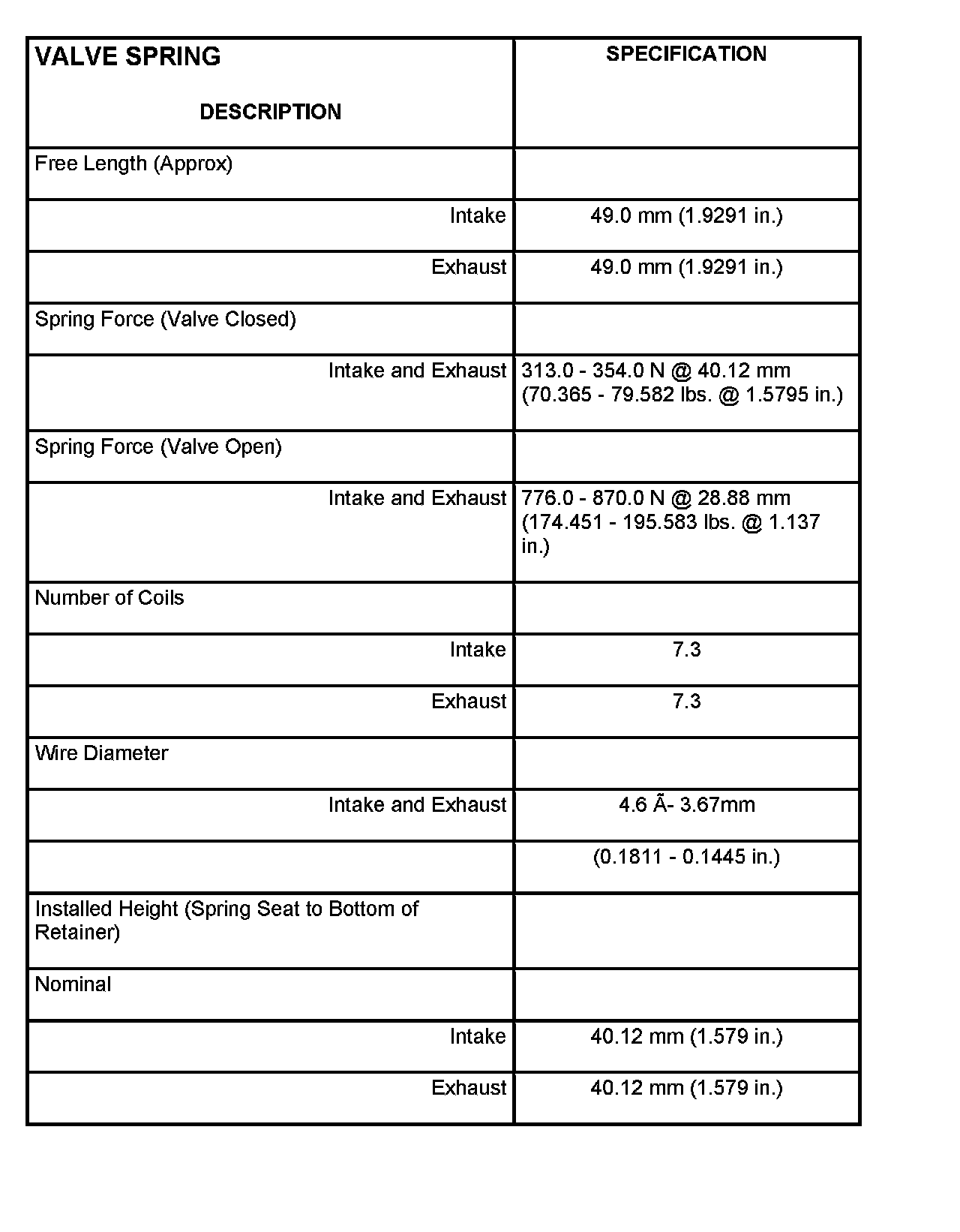

Valve Spring:

Cylinder Head:

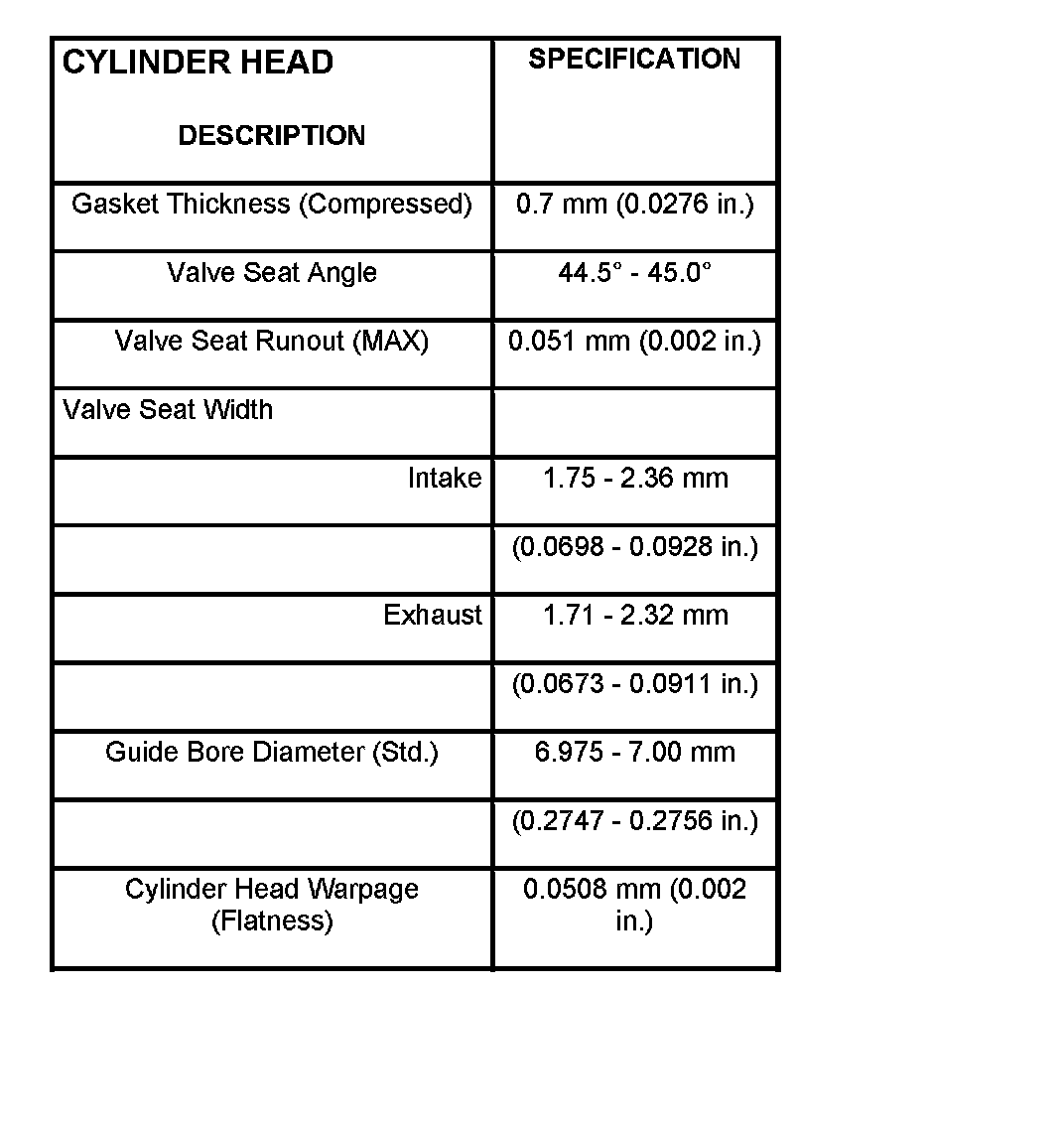

Cylinder Head

Oil Pump:

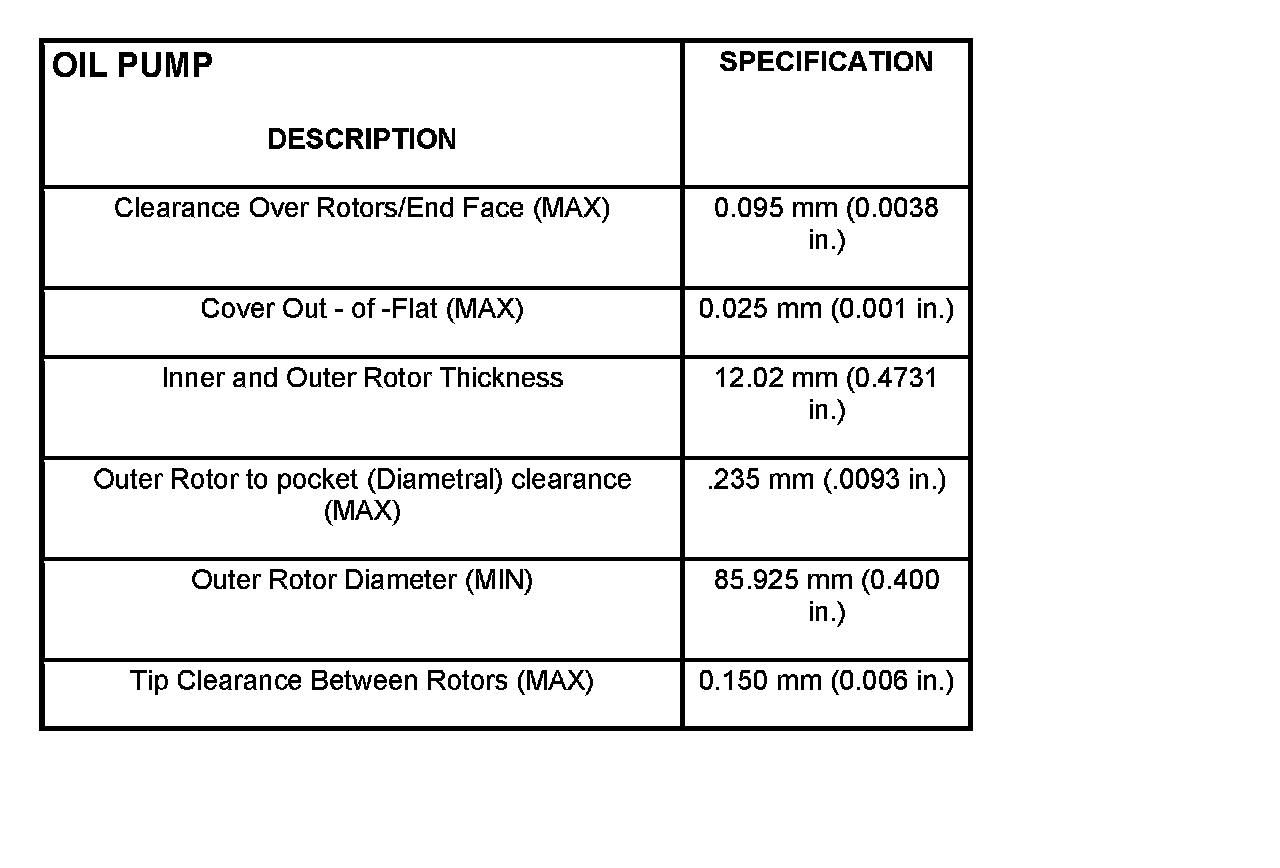

Oil Pump

Oil Pressure:

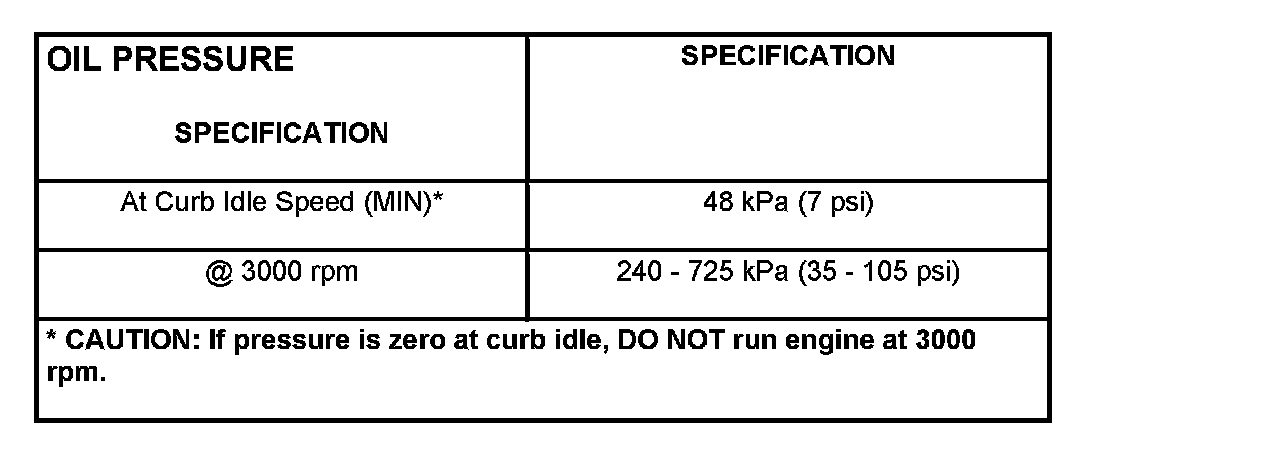

Oil Pressure
