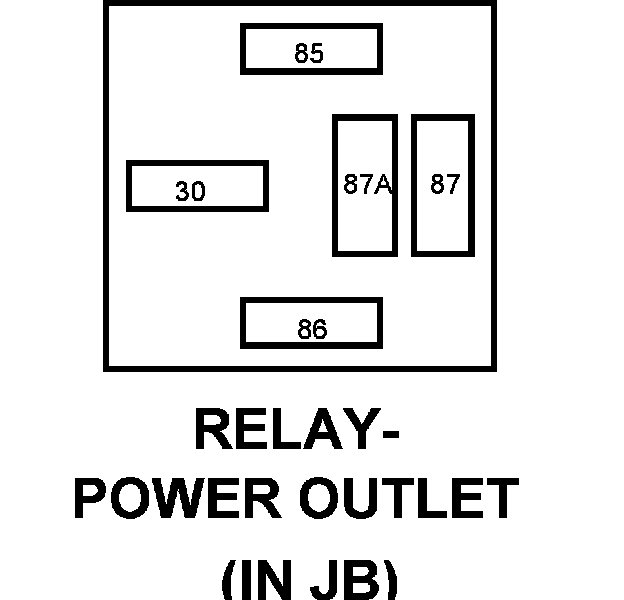

Relay-Power Outlet

Component ID: 255
Component : RELAY-POWER OUTLET

Connector:
Name : RELAY-POWER OUTLET
Color :
# of pins : 0




30 FUSED B(+) A925 14RD/LG
85 GROUND Z387 16BK
86 RUN/ACCESSORY RELAY OUTPUT INTERNAL
87 POWER OUTLET RELAY OUTPUT INTERNAL
87A - -
