Installation






INSTALLATION





NOTE: Make sure that the air outlet is properly aligned to the instrument panel duct and that the foam seal on the outlet is not damaged.

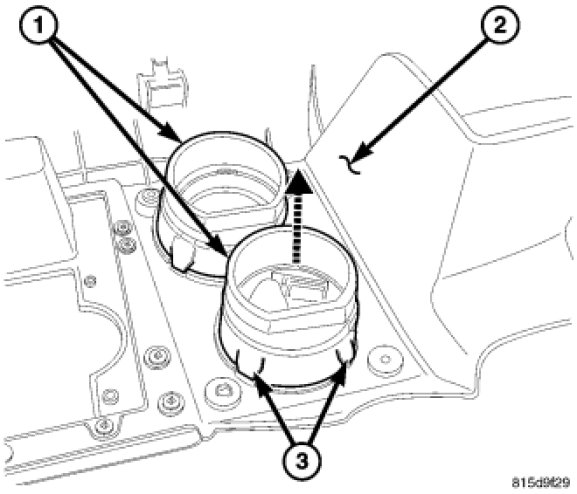

1. Align the instrument panel air outlets (1) to the openings of the instrument panel ducts and install the air outlets into the instrument panel bezel (2) as necessary. Make sure that each of the air outlet's three retaining clips (3) are fully engaged to the instrument panel bezel.

2. Install the instrument panel bezel onto the instrument panel.
