Accelerator Pedal Position Sensor: Diagrams

Component ID: 455
Component : SENSOR-ACCELERATOR PEDAL POSITION

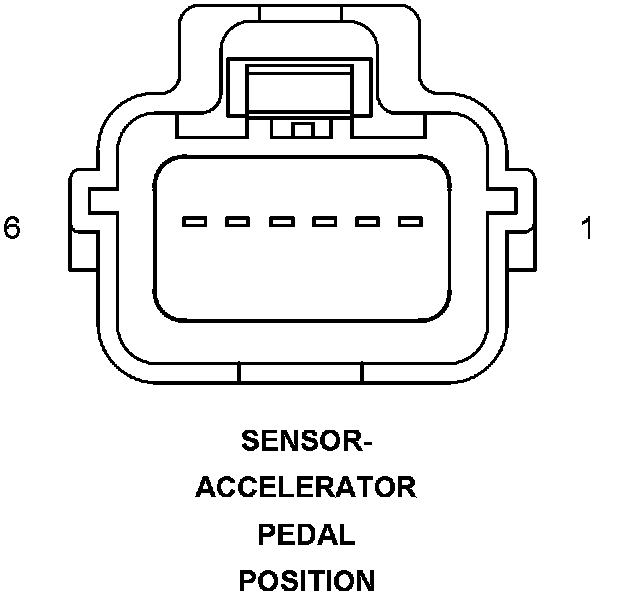

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color :
# of pins : 6




Pin Description Circuit
1 5 VOLT SUPPLY F855 20PK/YL
2 APPS NO. 1 SIGNAL K23 20BR/WT
3 APPS NO. 1 SENSOR GROUND K167 20BR/YL
4 APPS NO. 2 SENSOR GROUND K400 20BR/VT
5 APPS NO. 2 SIGNAL K29 20WT/BR
6 5 VOLT SUPPLY F856 20YL/PK

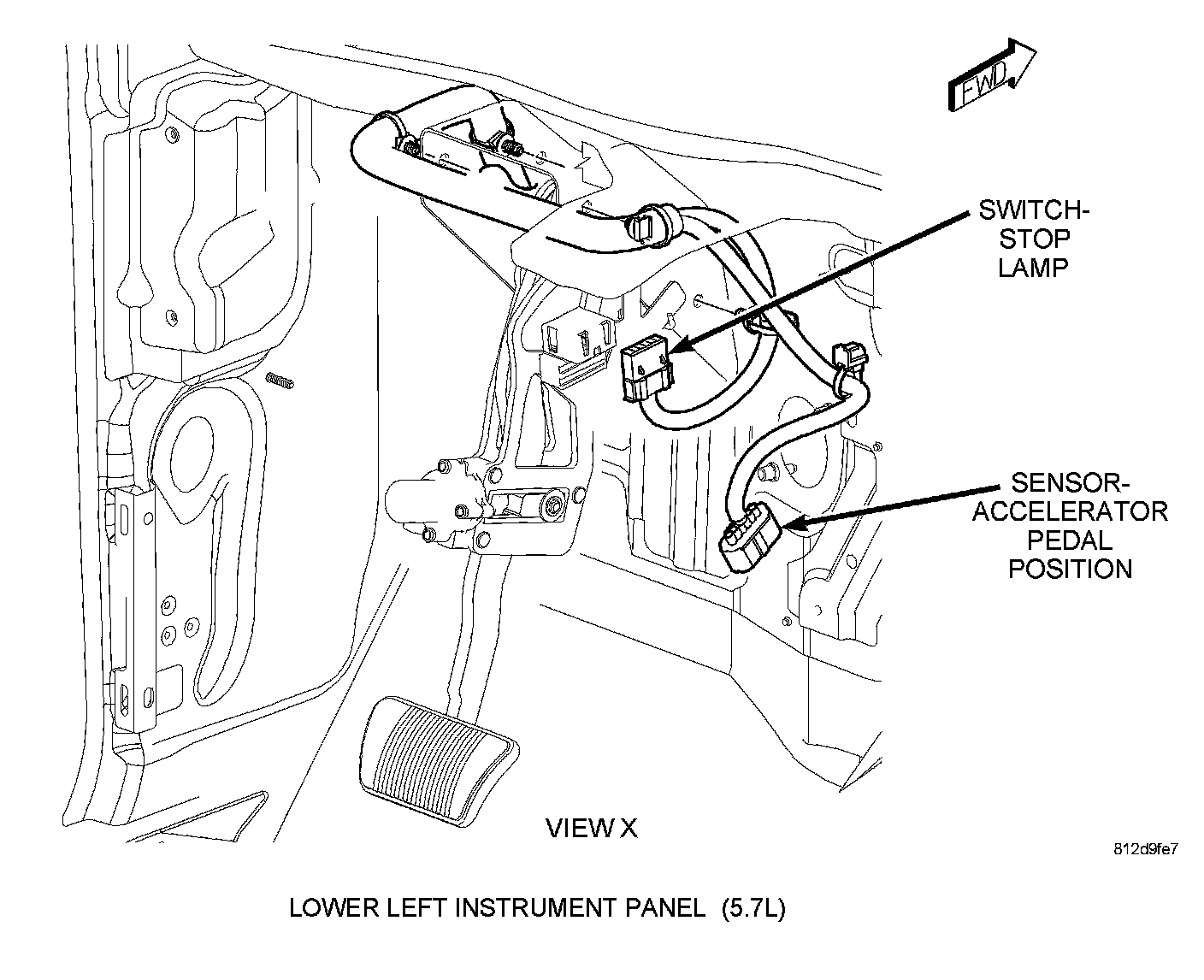

Component Location - 4
