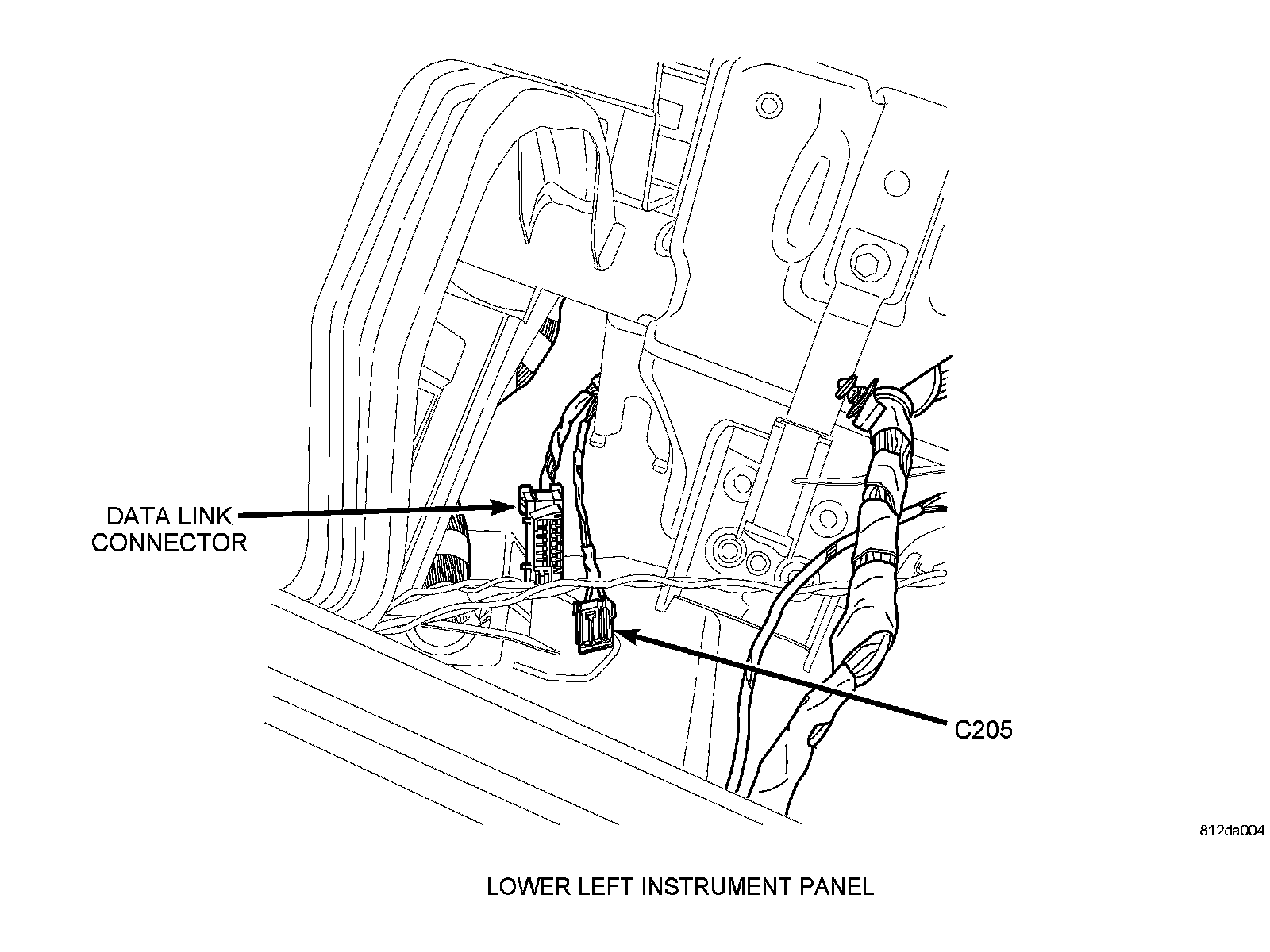

Data Link Connector: Locations

Component ID: 76

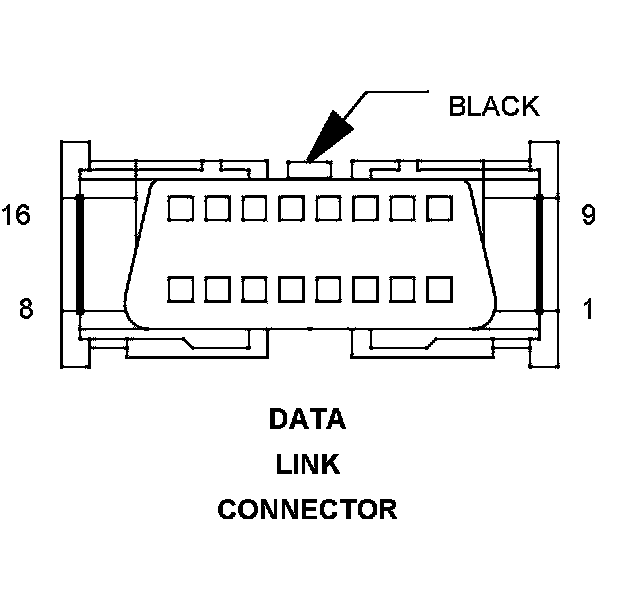

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Description Circuit
1 - -
2 - -
3 - -
4 GROUND Z111 20BK/WT
5 GROUND Z11 20BK/LG
6 DIAGNOSTIC CAN C (+) D72 20WT/LB
7 SCI TRANSMIT (PCM) D223 20WT/VT
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 DIAGNOSTIC CAN C (-) D71 20WT/DB
15 - -
16 FUSED B(+) A108 20LG/RD

Component Location - 35
