Main Relay (Computer/Fuel System): Diagrams

Component ID: 243

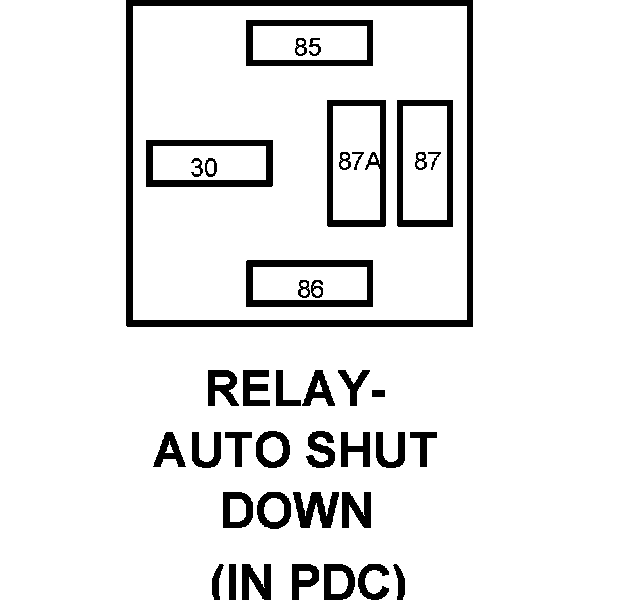

Component : RELAY-AUTO SHUT DOWN

Connector:
Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




30 FUSED B(+) A924 10RD/VT
85 ASD RELAY CONTROL K342 20BR/WT
86 FUSED B(+) A924 10RD/LB
87 ASD RELAY OUTPUT A142 10RD/GY
87A - -
