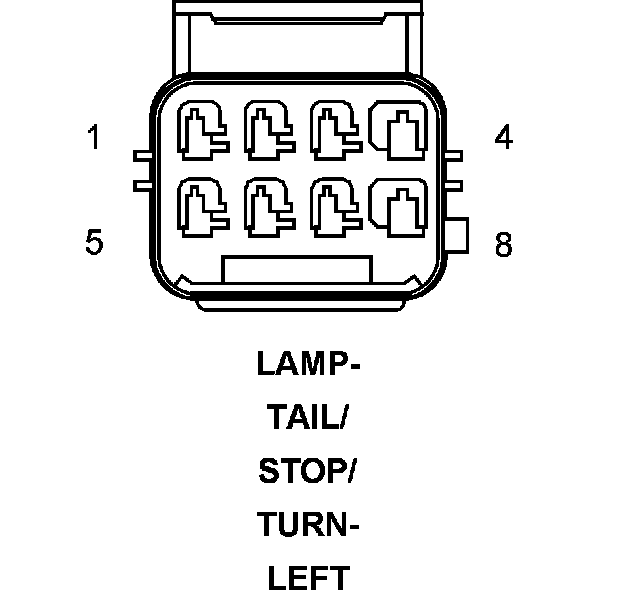

Lamp-Tail/Stop/Turn-Left

Component ID: 168
Component : LAMP-TAIL/STOP/TURN-LEFT

Connector:
Name : LAMP-TAIL/STOP/TURN-LEFT
Color :
# of pins : 8




Pin Description Circuit
1 BRAKE LAMP SWITCH OUTPUT L50 18WT/TN
2 - -
3 - -
4 - -
5 FUSED PARK LAMP RELAY OUTPUT L777 20WT/VT
6 BACKUP LAMP FEED L1 18WT/LG
7 LEFT REAR TURN SIGNAL CONTROL L63 18WT/DG
8 GROUND Z918 18BK

Component Location - 71
