Lamp-Vanity-Right

Component ID: 171

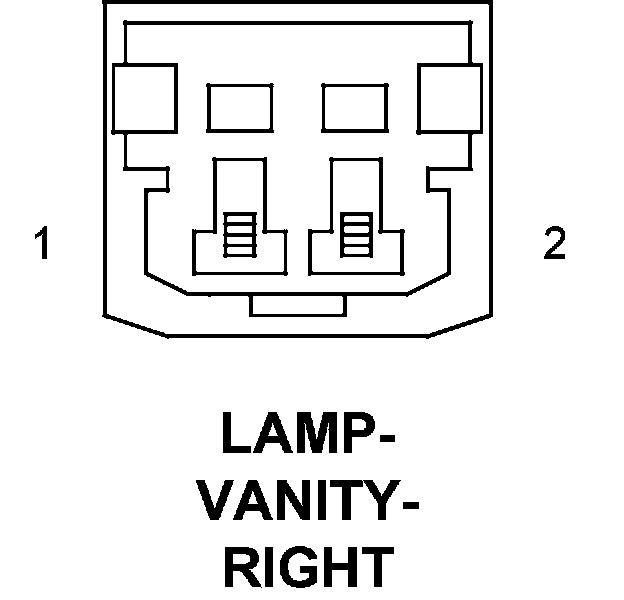

Component : LAMP-VANITY-RIGHT

Connector:
Name : LAMP-VANITY-RIGHT
Color :
# of pins : 2




Pin Description Circuit
1 FUSED B(+) A931 20RD
2 GLOVE BOX/MAP LAMP DRIVER M28 20YL/TN
