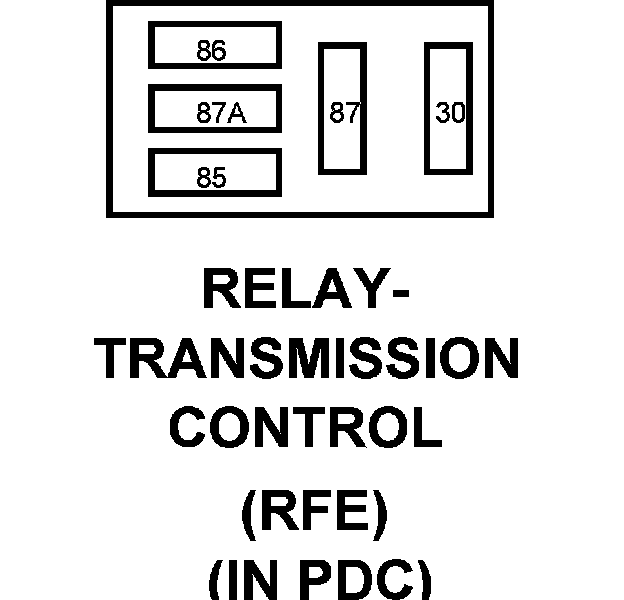

Relay-Transmission Control

Component ID: 270
Component : RELAY-TRANSMISSION CONTROL

Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 0
Qualifier : (RFE)




30 FUSED B(+) A917 18RD/DG
85 GROUND Z387 20BK
86 TRANSMISSION CONTROL RELAY CONTROL T15 20YL/BR
87 TRANSMISSION CONTROL RELAY OUTPUT T16 16YL/OR
87A - -
