Switch-Power Liftgate-Rear

Component ID: 549

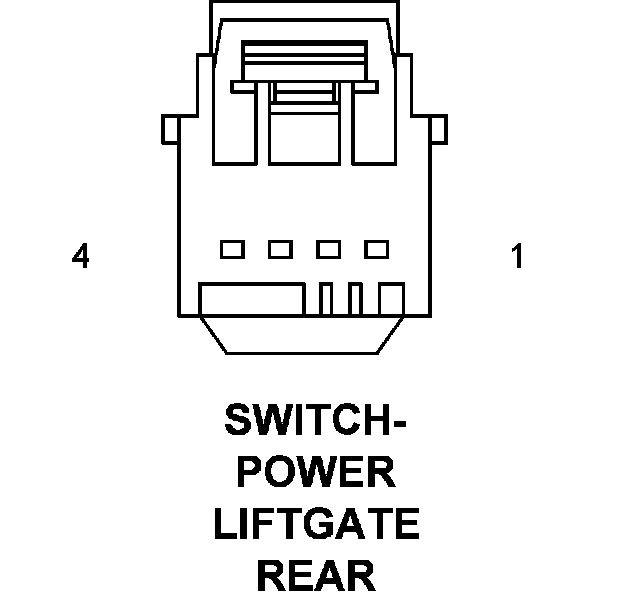

Component : SWITCH-POWER LIFTGATE-REAR

Connector:
Name : SWITCH-POWER LIFTGATE-REAR
Color :
# of pins : 4




Pin Description Circuit
1 LIFTGATE REAR SWITCH MUX G29 20OR/VT
2 - -
3 - -
4 LOGIC GROUND Q901 20OR/VT
