Service Specifications

5.7L ENGINE

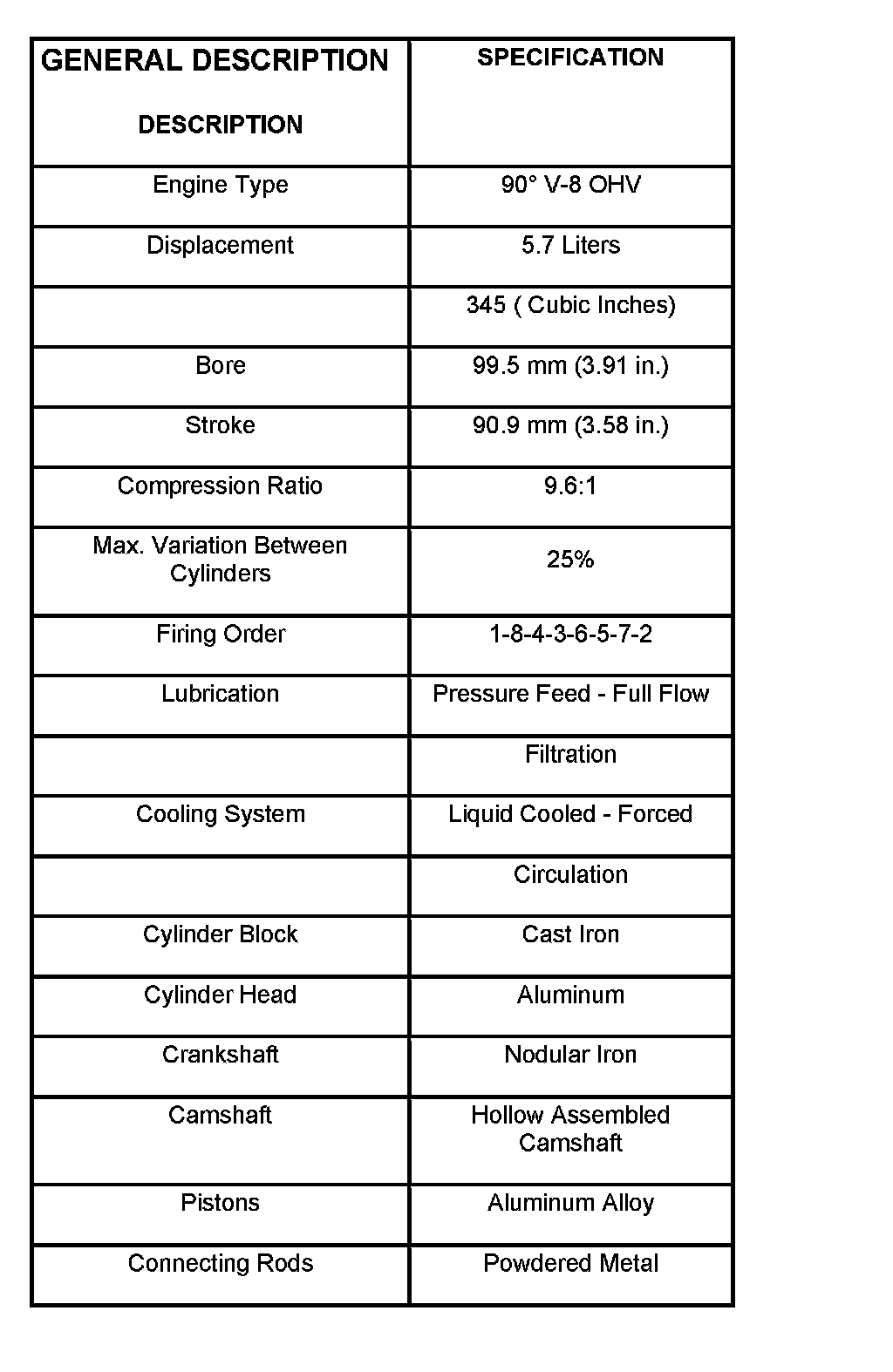

General Description:

General Description

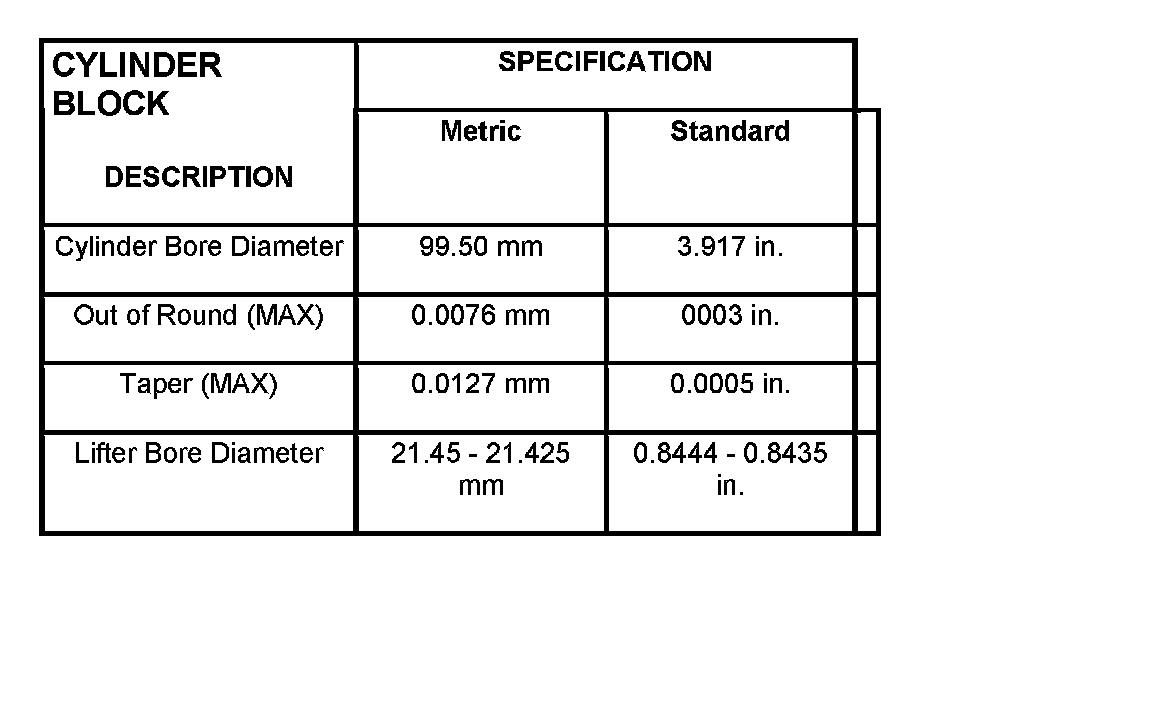

Cylinder Block:

Cylinder Block

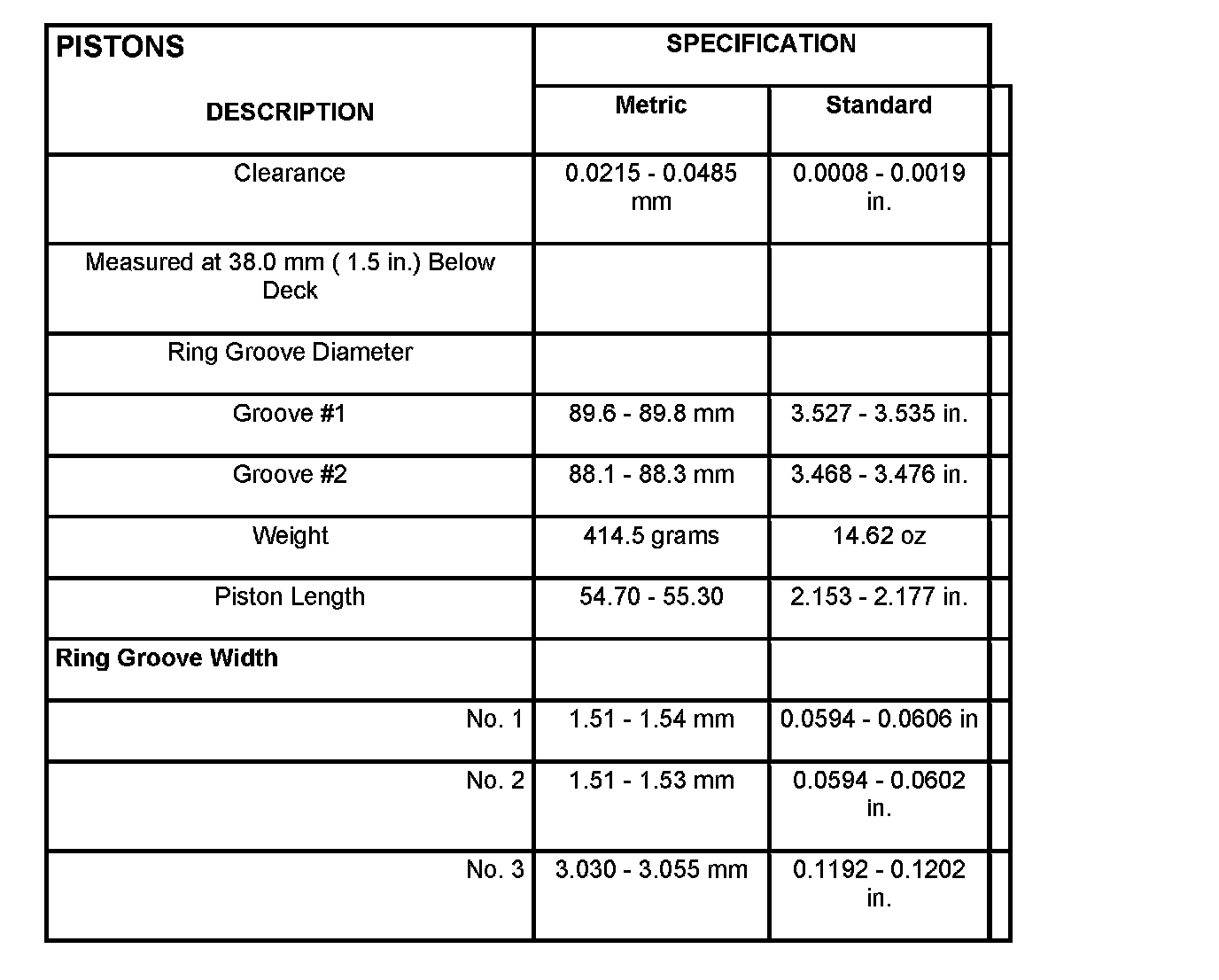

Pistons:

Pistons

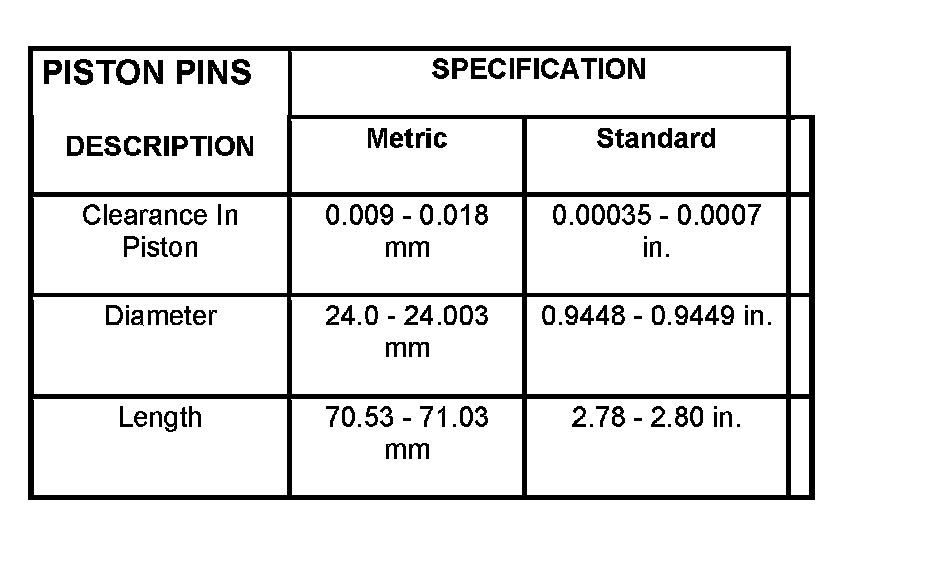

Piston Pins:

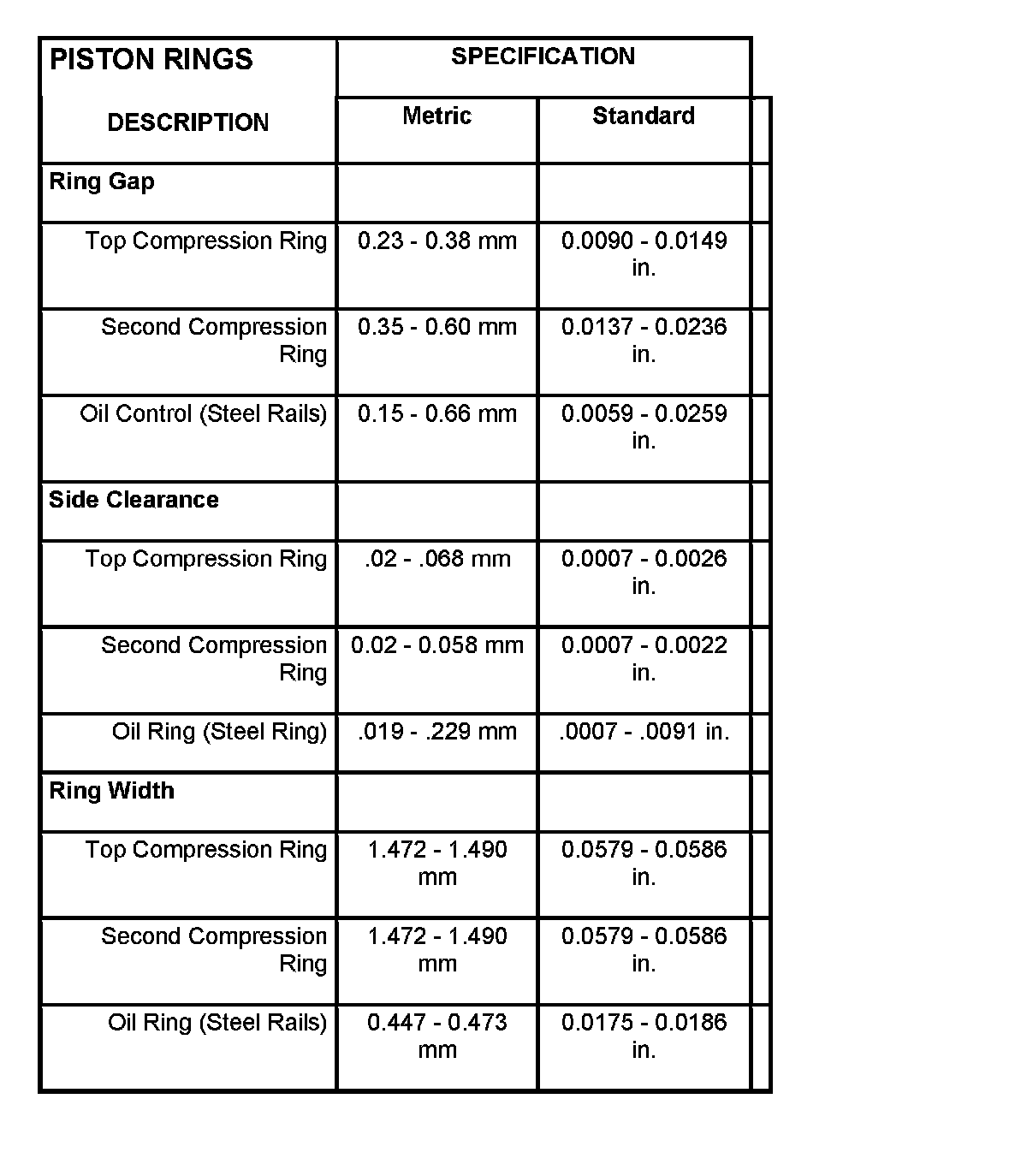

Piston Rings:

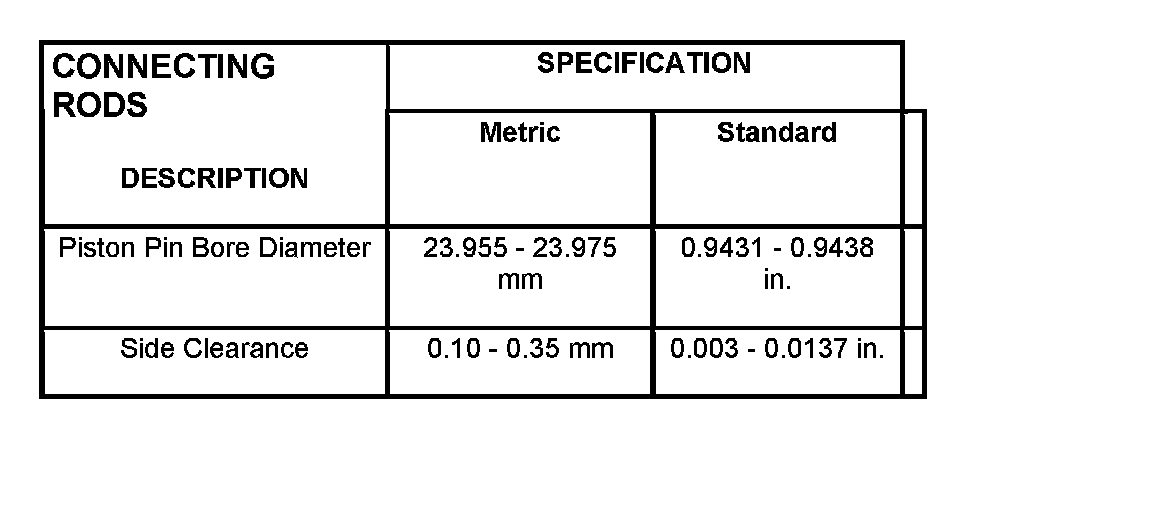

Connecting Rods:

Connecting Rods

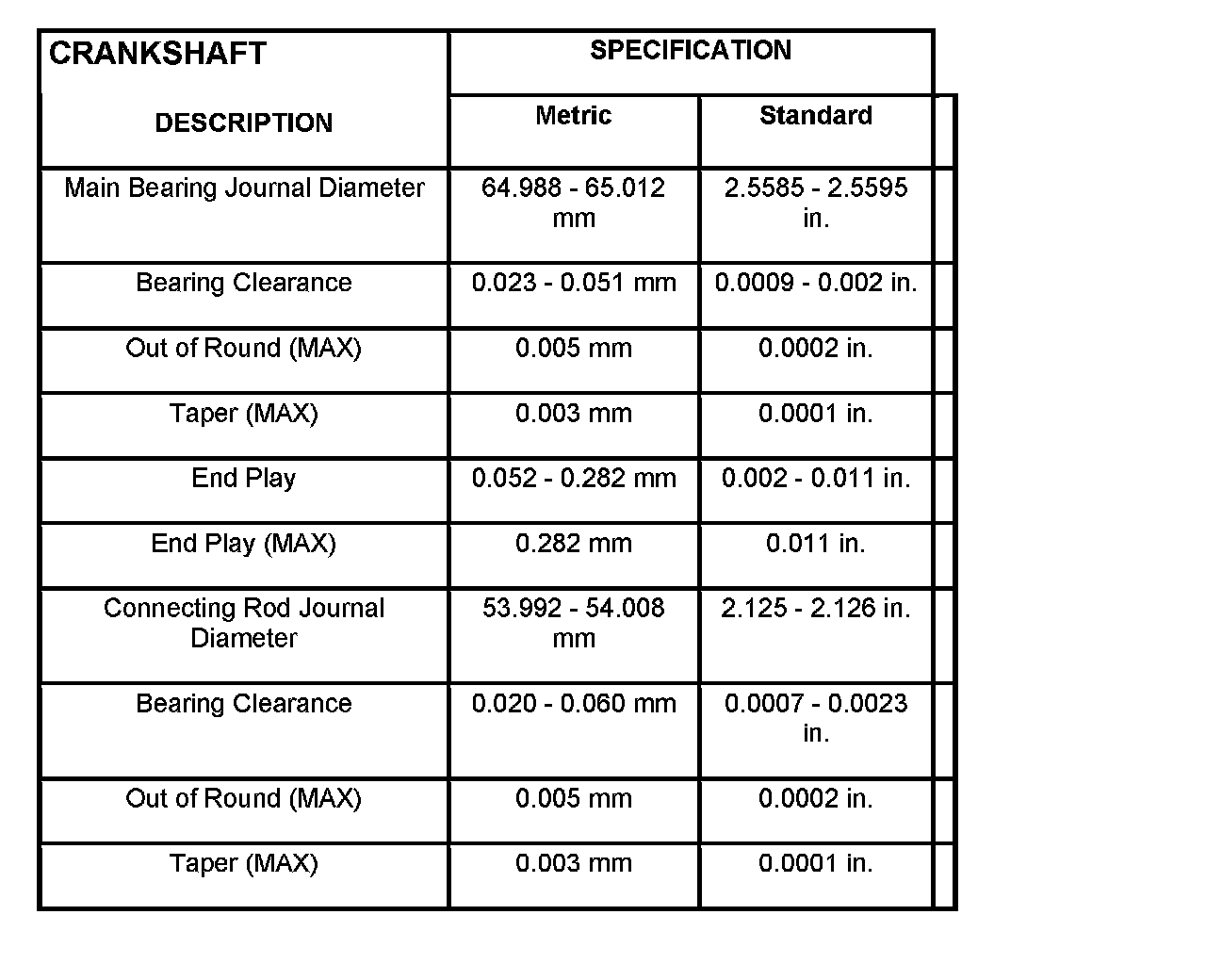

Crankshaft:

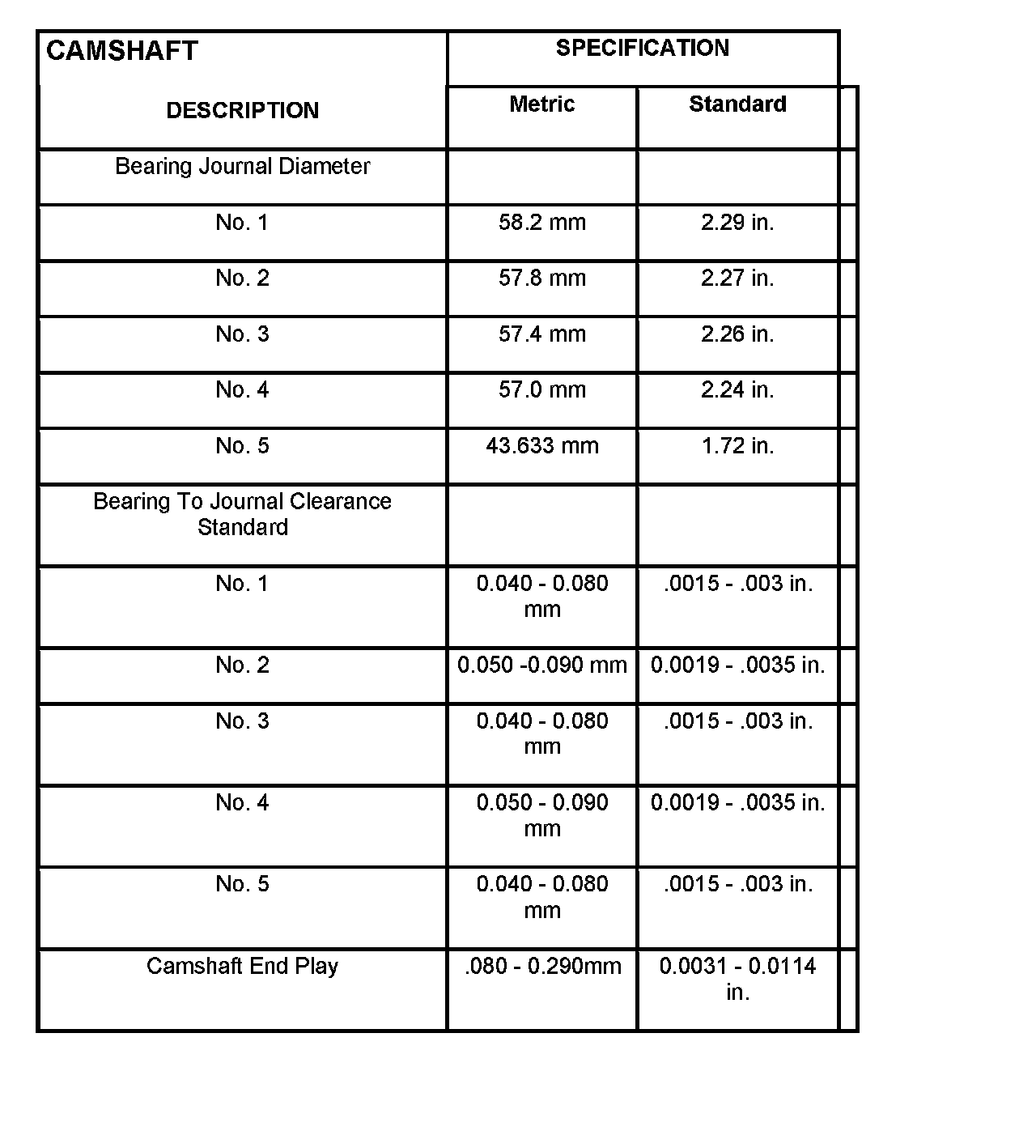

Camshaft:

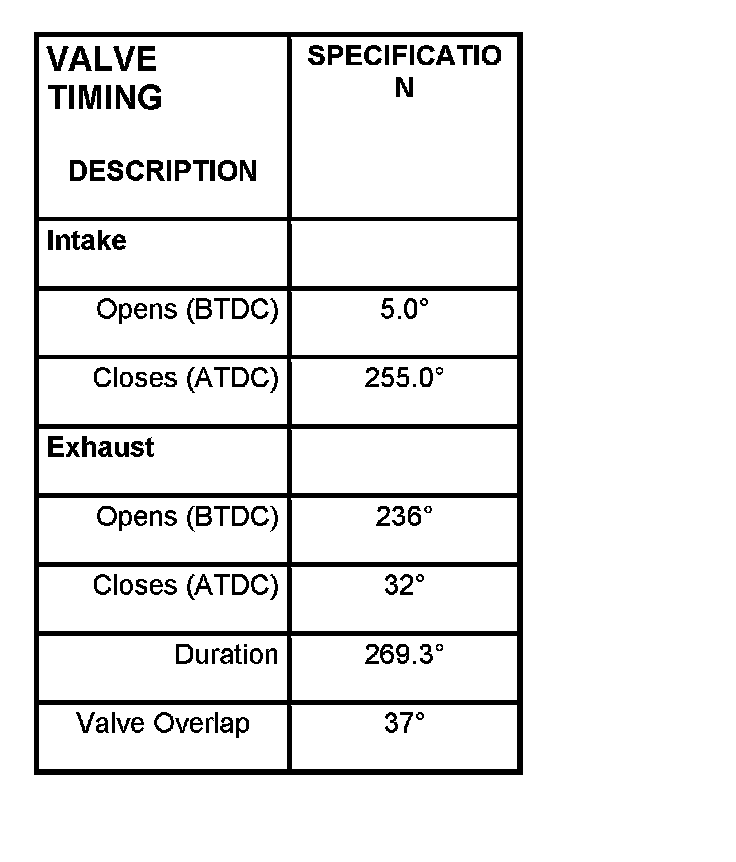

Valve Timing:

Valve Timing

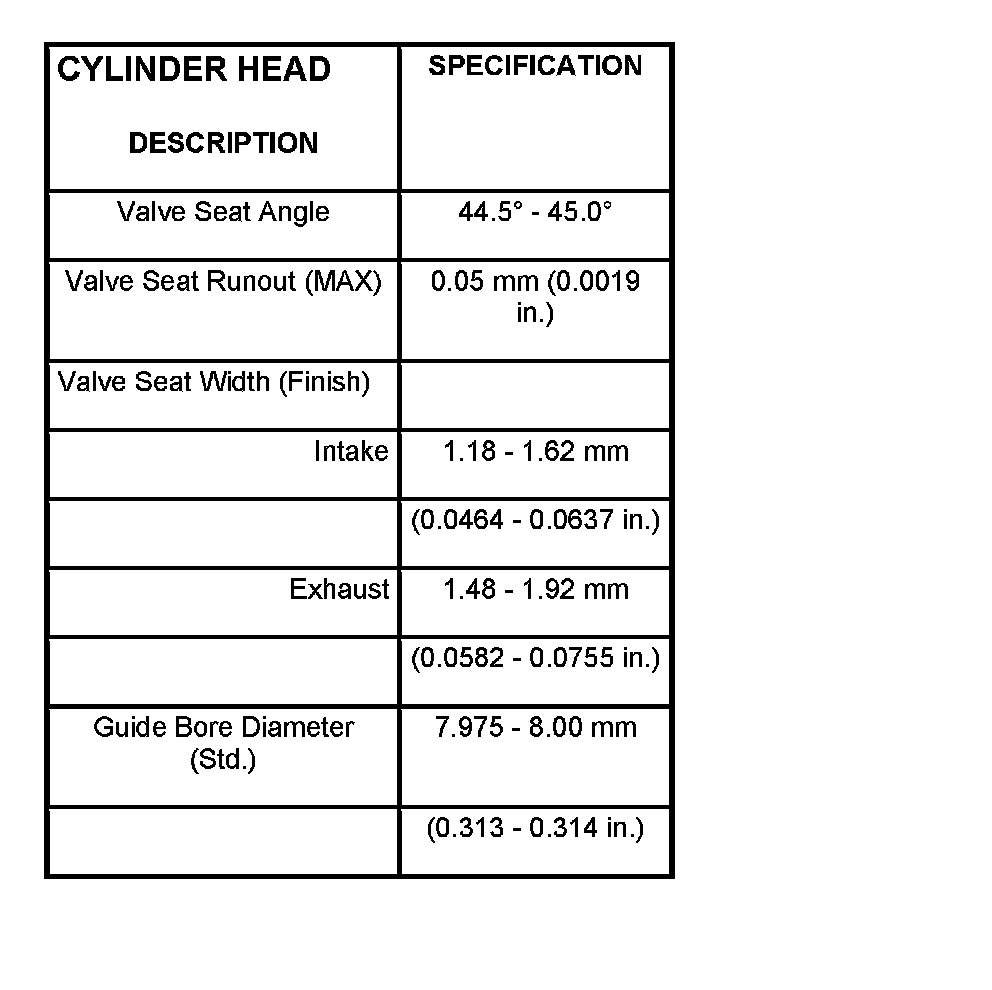

Cylinder Head:

Cylinder Head

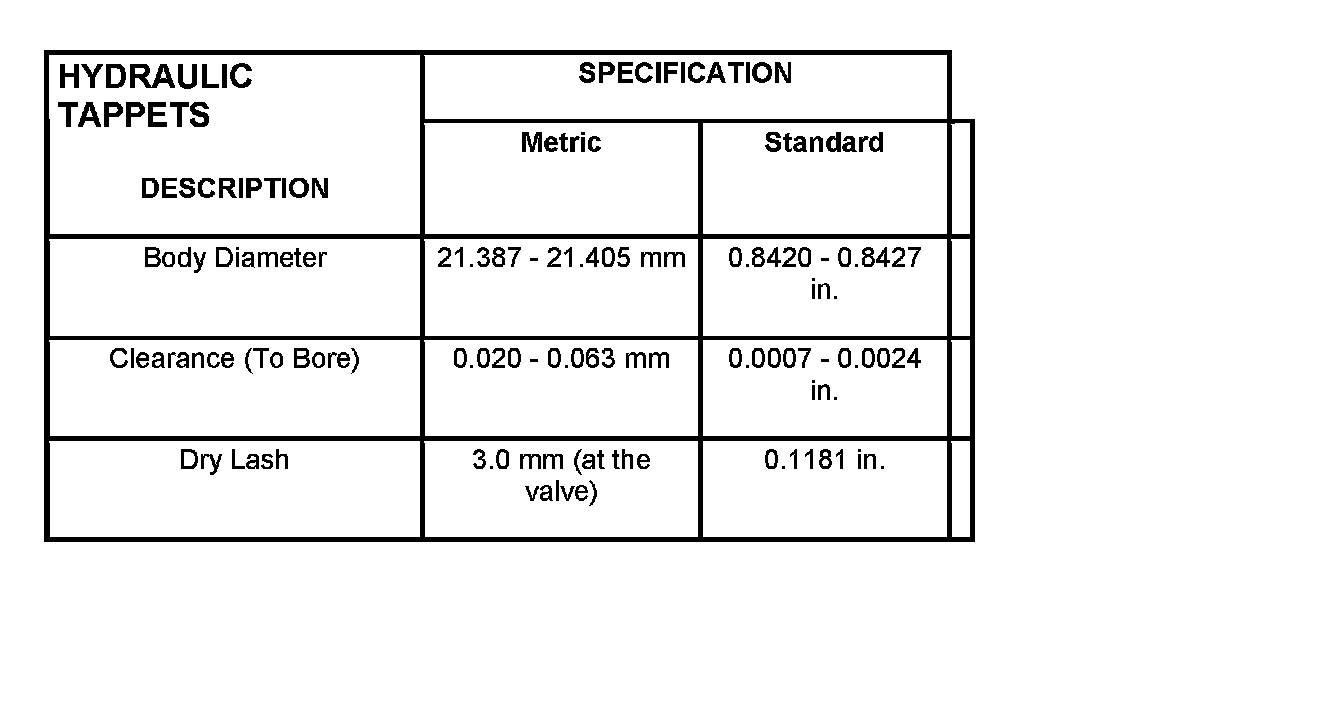

Hydraulic Tappets:

Hydraulic Tappets

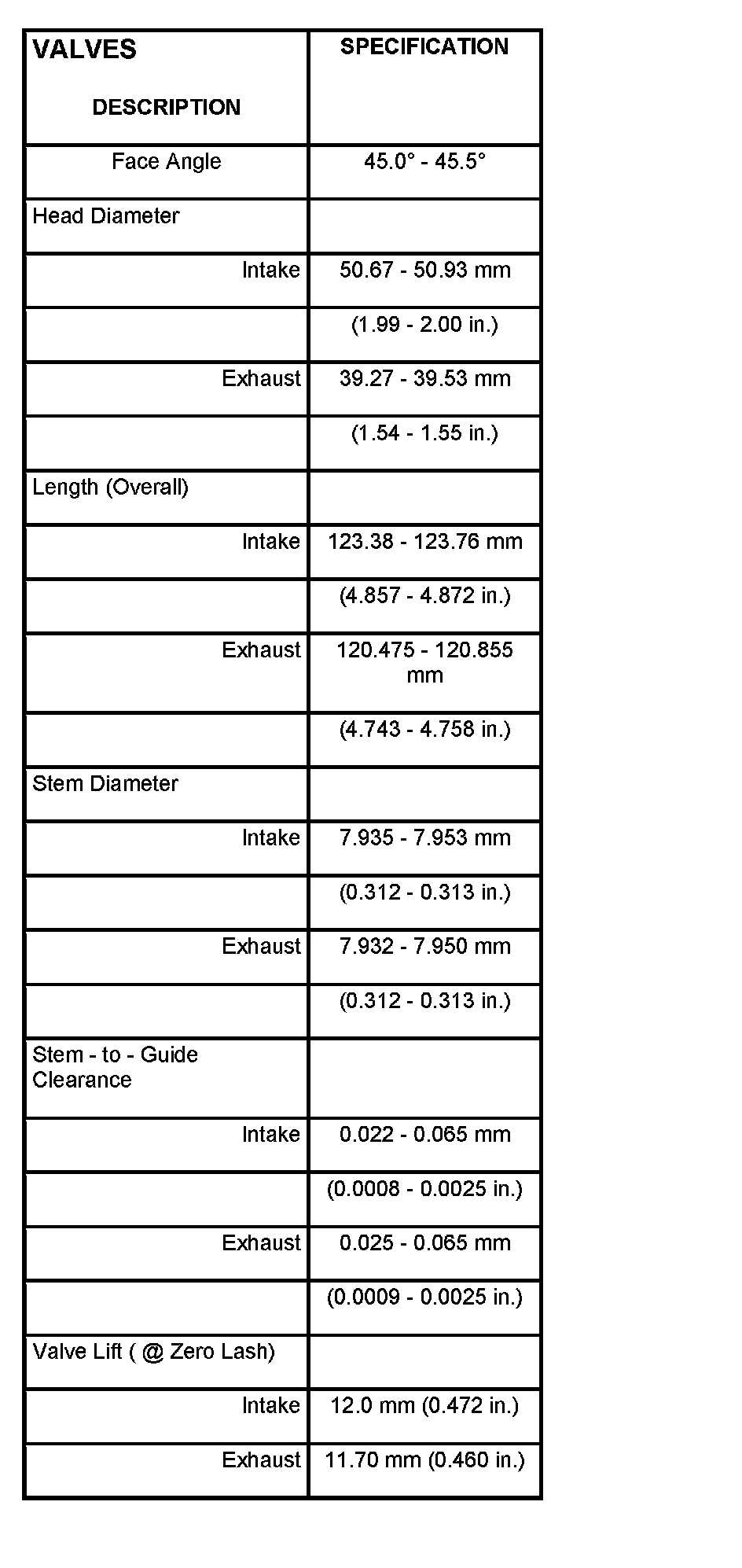

Valves:

Valves

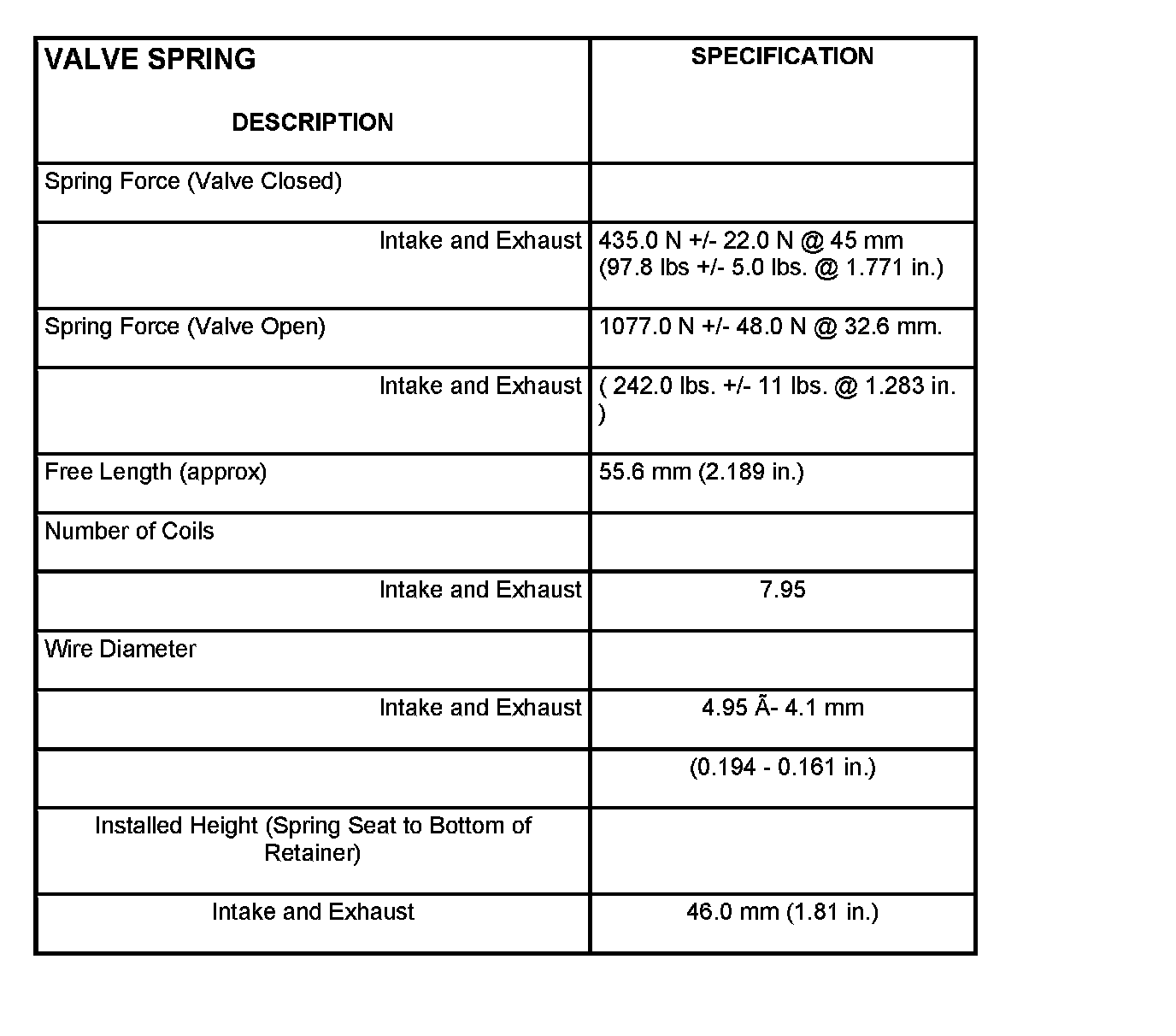

Valve Spring:

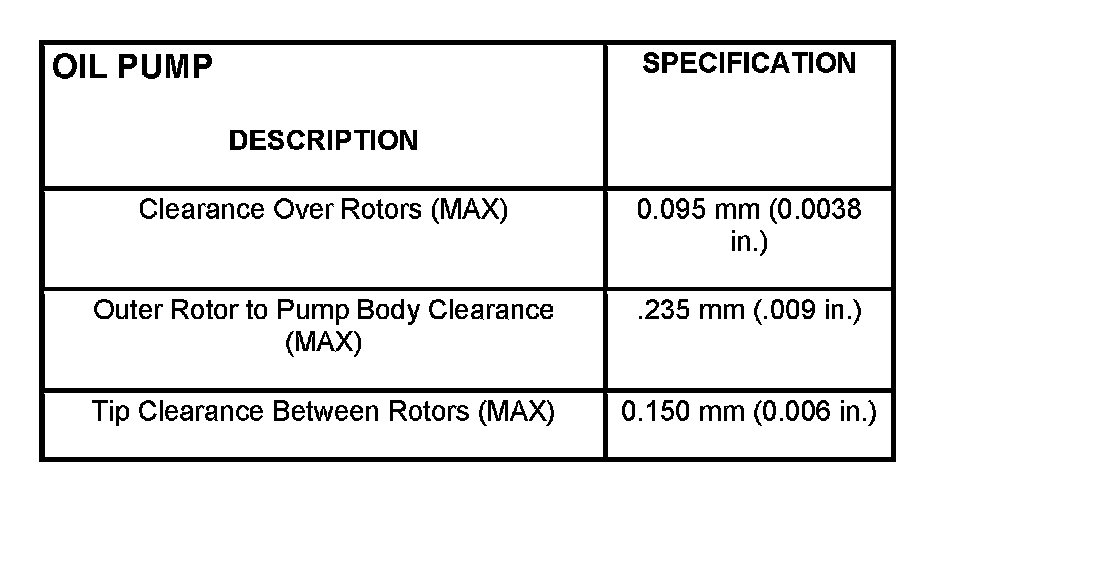

Oil Pump:

Oil Pump

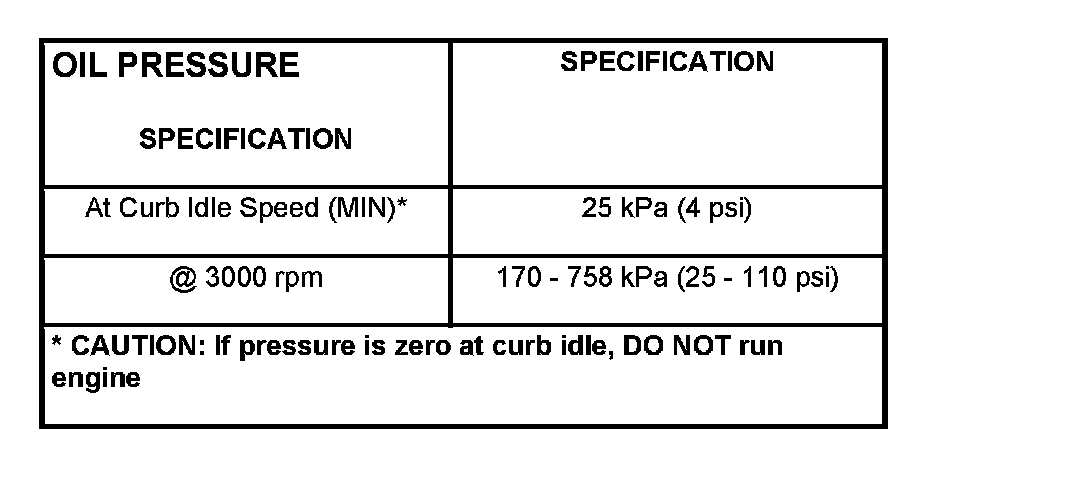

Oil Pressure:

Oil Pressure
